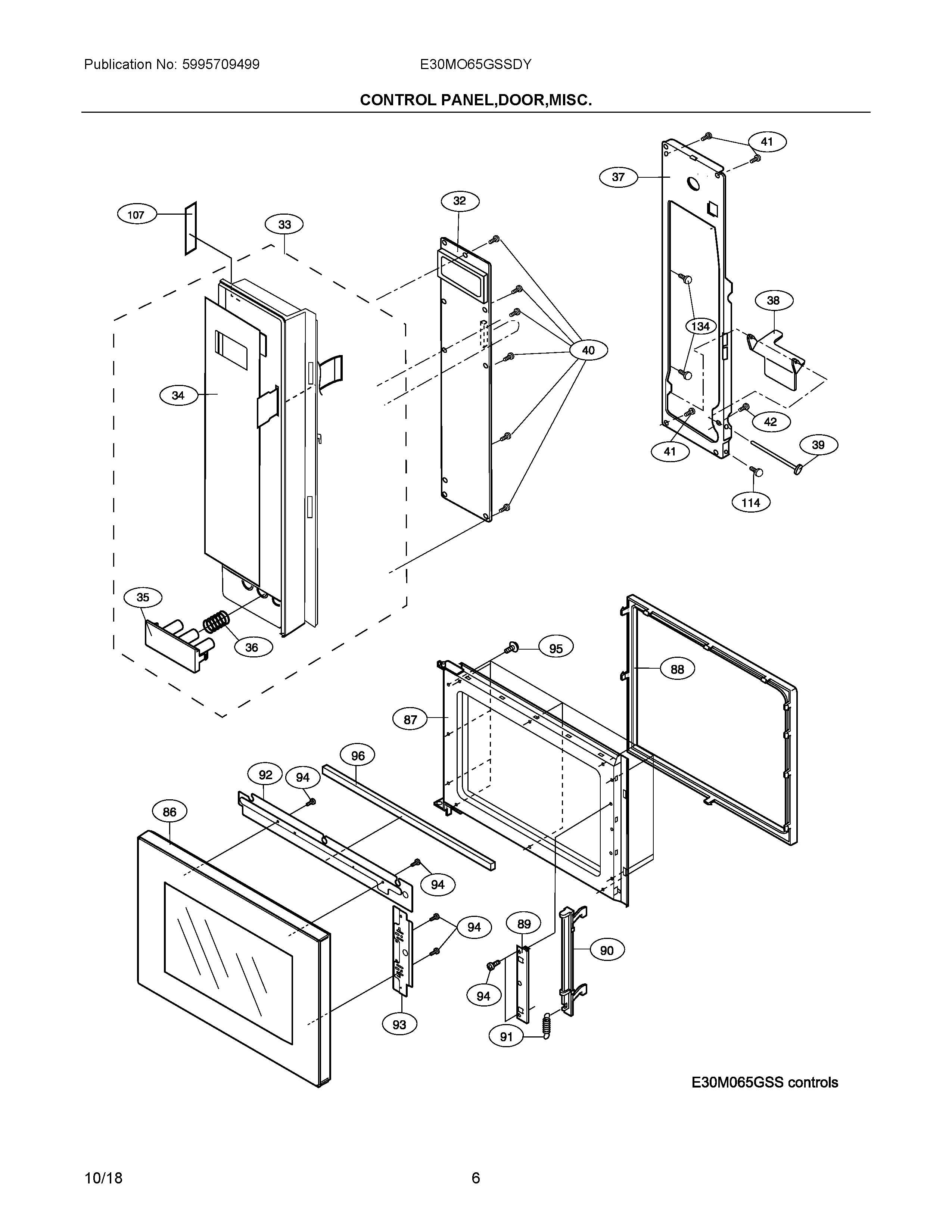

E30MO65GSSDY 03 – CONTROL PANEL,DOOR,MISC.

E30MO65GSSDY 03 – CONTROL PANEL,DOOR,MISC.

Written by

in

E30MO65GSSDY 03 – CONTROL PANEL,DOOR,MISC.

Products

PositionProduct
325304519995 Frigidaire Control Board
335304507106 Frigidaire Microwave Control Assembly
34TOUCH CONTROL, KEY PAD
35PUSH BUTTON, DOOR OPENER
365304440831 Frigidaire Microwave Spring Assembly
37PLATE, CONTROL PANEL, BACK
38LEVER, DOOR OPENER
39SHAFT, DOOR BUTTON
40WCI 5303319584
41SCREW, BACK PLATE MTG, (5)
42SCREW, CTRL PANEL MTG, (2)
86PANEL, OUTER DOOR, BLACK, FRAME
87PANEL, INNER DOOR, BLACK
88COVER, CHOKE
89ANGLE, LATCH
90HEAD, LATCH
91SPRING, LATCH HEAD
92PLATE, THERMAL, UPPER
93PLATE, THERMAL, RH
945304451561 Frigidaire Microwave Screw
95SCREW, 3MM X 8MM
96CUSHION
1075304440346 Frigidaire LABEL
1145304450253 Frigidaire Microwave Screw
1345304414648 Frigidaire Oven Screw
