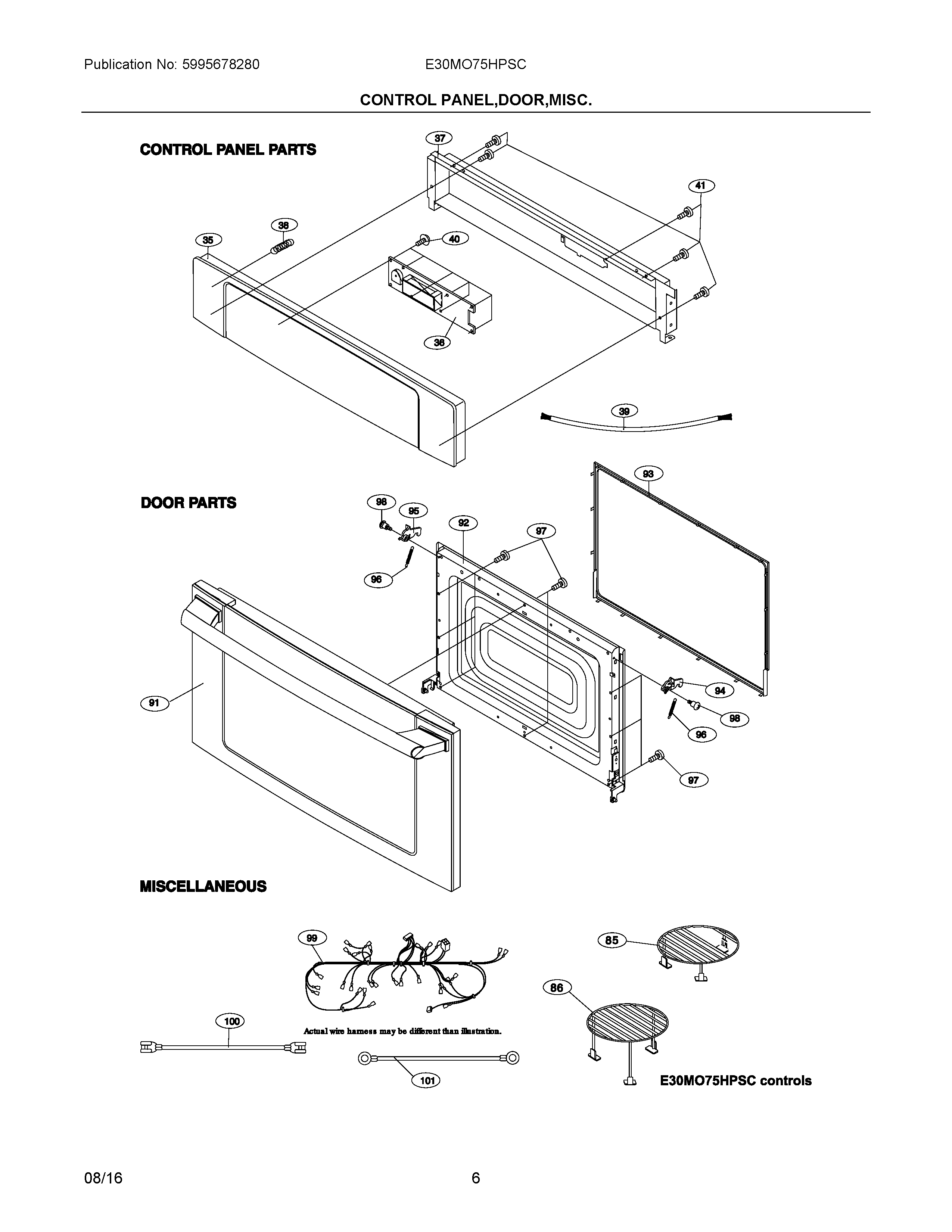

E30MO75HPSC 03 – CONTROL PANEL,DOOR,MISC

E30MO75HPSC 03 – CONTROL PANEL,DOOR,MISC

Written by

in

E30MO75HPSC 03 – CONTROL PANEL,DOOR,MISC

Products

PositionProduct
355304507178 Frigidaire Microwave Touch Control Assembly
365304507179 Frigidaire Microwave Display Board
37BRACKET, CONTROL MOUNT
38SPRING, GROUNDING
39WCI 5304507180
405304456930 Frigidaire Microwave Screw
415304451517 Frigidaire Microwave Screw
855304498741 Frigidaire Rack Assembly
865304498742 Frigidaire Rack Assembly
91WCI 5304471511
925304471512 Frigidaire Microwave Panel
935304470579 Frigidaire Microwave Frame
945304491054 Frigidaire Microwave Latch Head
955304490142 Frigidaire Microwave Latch
965304501834 Frigidaire Microwave Spring
975304451561 Frigidaire Microwave Screw
985304470583 Frigidaire Microwave Screw
99WCI 5304507164
1005304440331 Frigidaire Microwave Wire
1015304461199 Frigidaire Microwave Wire
