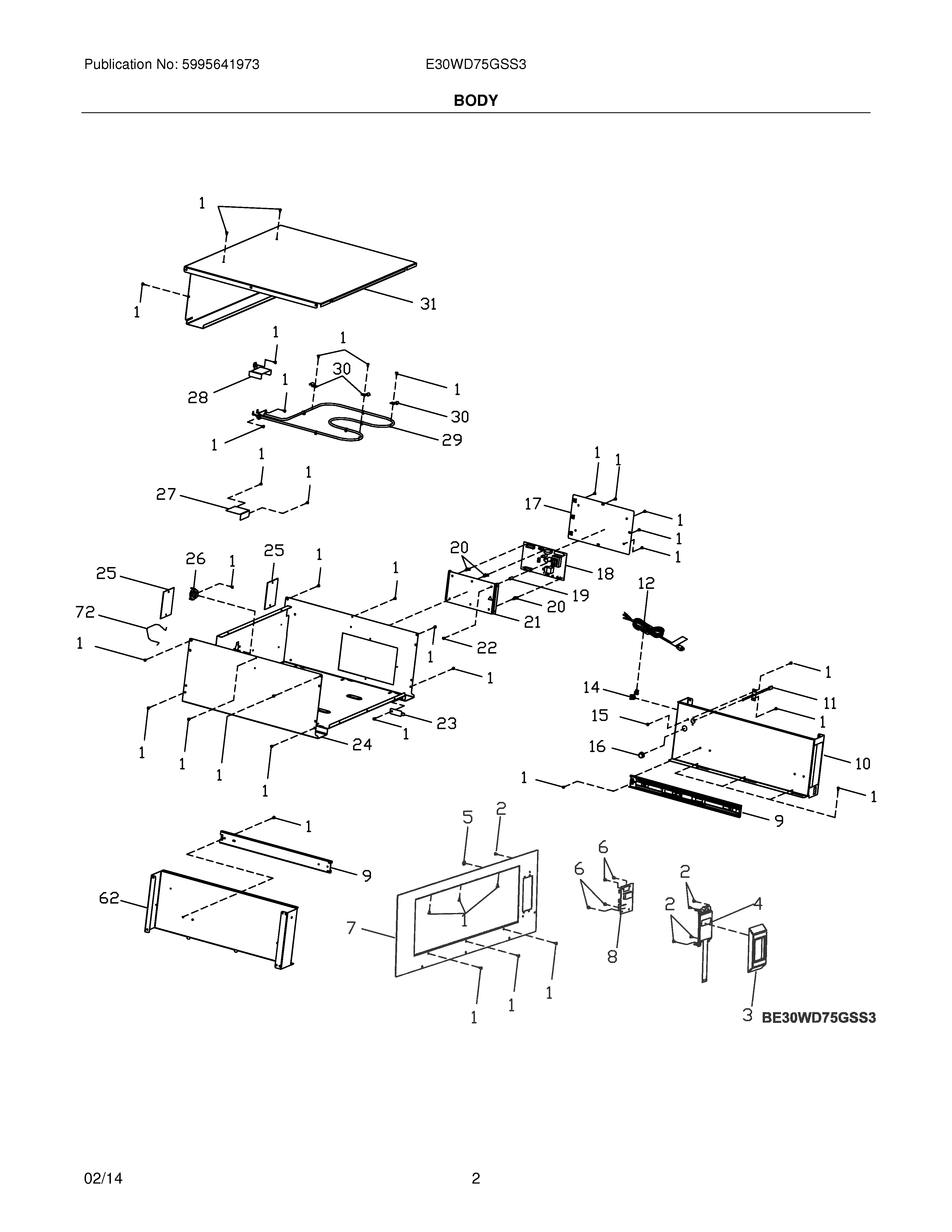

E30WD75GSS3 03 – BODY

E30WD75GSS3 03 – BODY

Written by

in

E30WD75GSS3 03 – BODY

Products

PositionProduct
NIWCI 318199788
NIWCI 318199765
1305309702 Frigidaire Oven Screw
2305309701 Frigidaire Oven Screw
3WCI 318390200
4318388111 Frigidaire Assembly Bracket
6SCREW, 6-32 X 3/8", (4)
7WCI 808577401
8316517900 Frigidaire Oven Board
9318248410 Frigidaire Oven Warming Drawer Slide Rail Assembly
10WCI 807221601
11SENSOR
12WCI 318144005
14WCI 305532205
15305452800 Frigidaire Screw
16WCI 305494200
17WCI 318310108
18316517800 Frigidaire Oven Board
19Spacer,control
20WCI 305560900
21318310701 Frigidaire Bracket
225303297477 Frigidaire Oven Screw
23WCI 318310110
24WCI 807319601
25WCI 318388000
26WCI 318005114
27WCI 318399000
28WCI 807319701
29318255301 Frigidaire Oven Element
30316095800 Frigidaire Oven Clip
31WCI 318281508
62WCI 807221801
72202855101 Frigidaire Holder
