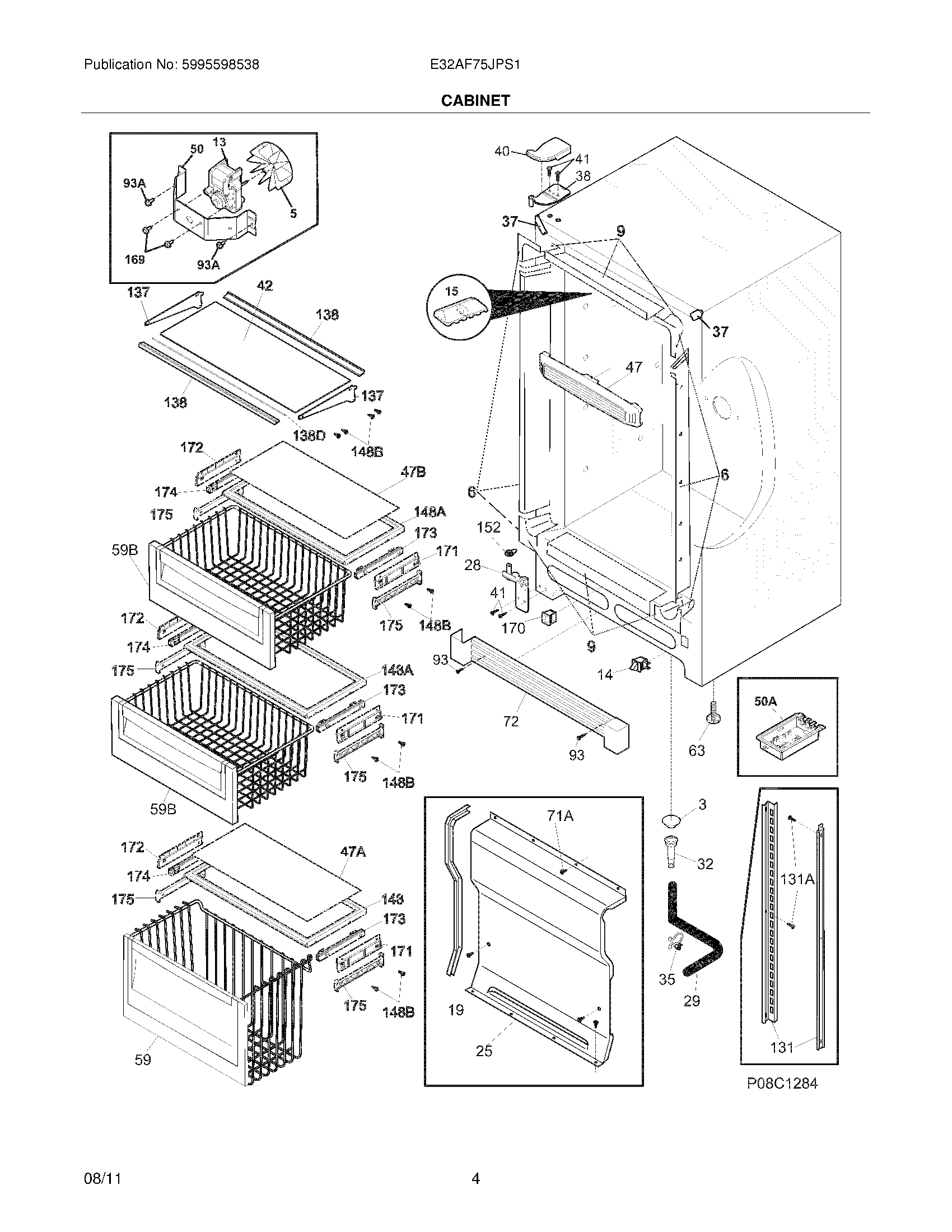

E32AF75JPS1 05 – CABINET

E32AF75JPS1 05 – CABINET

Written by

in

E32AF75JPS1 05 – CABINET

Products

PositionProduct
NI297001704 Frigidaire Refrigerator Insulation
NIWCI 297305500
NIBracket,RH leg levelor
NIBracket,LH leg levelor
NIWCI 216327800
NIWCI 297330102
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15WCI 241891103
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25COVER-EVAPORATOR
285303018741 Frigidaire Refrigerator Freezer Hinge Kit
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, LH
40COVER-HINGE, GRAY, LH
41240578902 Frigidaire Screw Mounting Hinge
42SHELF-GLASS
47B297291301 Frigidaire Refrigerator Glass
47297192903 Frigidaire Refrigerator Baffle
47A297291300 Frigidaire Refrigerator Glass
50AWCI 241891605
50A241852501 Frigidaire Refrigerator Clip
50WCI 08013207
59BBASKET, ASSY-MID LEVEL
59BASKET, ASSY, TALL
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
725304510562 Frigidaire Refrigerator Kickplate Grille
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
131SCREW, TH, 8-18X.470 AB QX, WHITE, (6)
131CHANNEL-SHELF MTG, SIDE, (2)
137297296511 Frigidaire Refrigerator Bracket-Shelf
138TRIM-SHELF
138297350900 Frigidaire Refrigerator Gasket
148FRAME, BASKET, MID-LEVEL
148297142600 Frigidaire Refrigerator/Freezer Screw
148FRAME, BASKET-COVER, TALL
152BEARING-HINGE
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304517648 Frigidaire Refrigerator Basket-Slide
1745304517649 Frigidaire Refrigerator Basket-Slide
175297099500 Frigidaire Refrigerator Support
