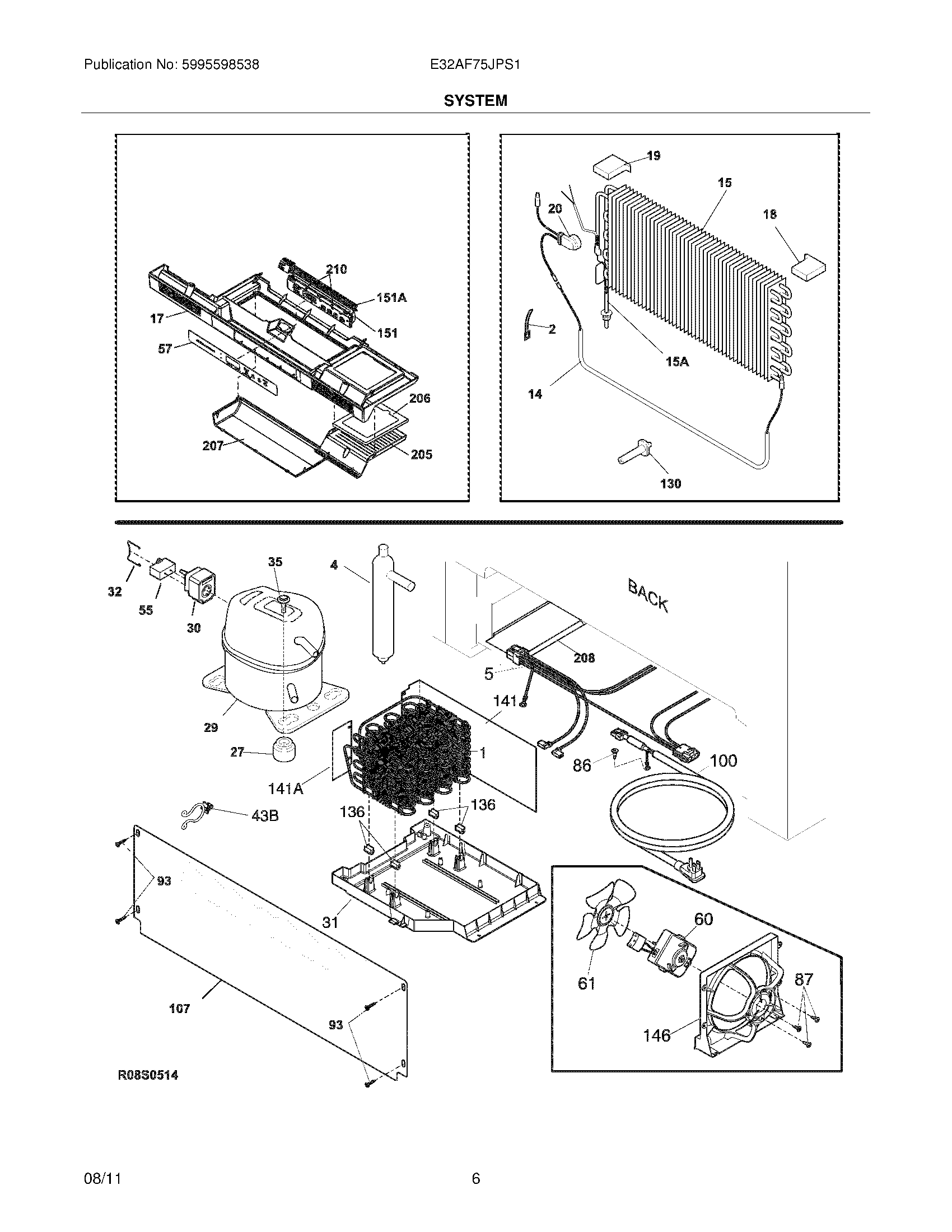

E32AF75JPS1 07 – SYSTEM

E32AF75JPS1 07 – SYSTEM

Written by

in

E32AF75JPS1 07 – SYSTEM

Products

PositionProduct
NI297014702 Frigidaire Refrigerator Suction Line Plug
NIWCI 216502500
NI241853202 Frigidaire Refrigerator Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI297110400 Frigidaire Refrigerator Thermistor
1297152200 Frigidaire Refrigerator Condenser
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5297325500 Frigidaire Refrigerator Main Harness
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15A297217900 Frigidaire Refrigerator Suction Tube
17BOX-CONTROL
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20297216600 Frigidaire Refrigerator Defrost Thermostat
27297293302 Frigidaire Refrigerator Grommet
295304478809 Frigidaire Refrigerator Compressor Assembly
30216954218 Frigidaire Controller
31297165800 Frigidaire Refrigerator Drain Pan
32216954300 Frigidaire Refrigerator Clip
35WCI 240491503
43B297315800 Frigidaire Refrigerator Clip
55297286803 Frigidaire Refrigerator Run Capacitor
57297269402 Frigidaire Refrigerator Overlay
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
86216036601 Frigidaire Refrigerator Screw
87216858001 Frigidaire Refrigerator Screw
100297366805 Frigidaire Refrigerator Cord
107297165400 Frigidaire Refrigerator Access Cover
130297244700 Frigidaire Refrigerator Support
136240405201 Frigidaire Refrigerator Grommet
141297194700 Frigidaire Divider
141297164200 Frigidaire Divider
146WCI 297164000
146216337701 Frigidaire Refrigerator Screw
151WCI 297326503
151808772801 Frigidaire Refrigerator Jumper Harness
205HOLDER, AIR FILTER
206EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
207SHIELD-LIGHT, WHITE
208GUARD-WIRE
210216905301 Frigidaire Refrigerator Screw
