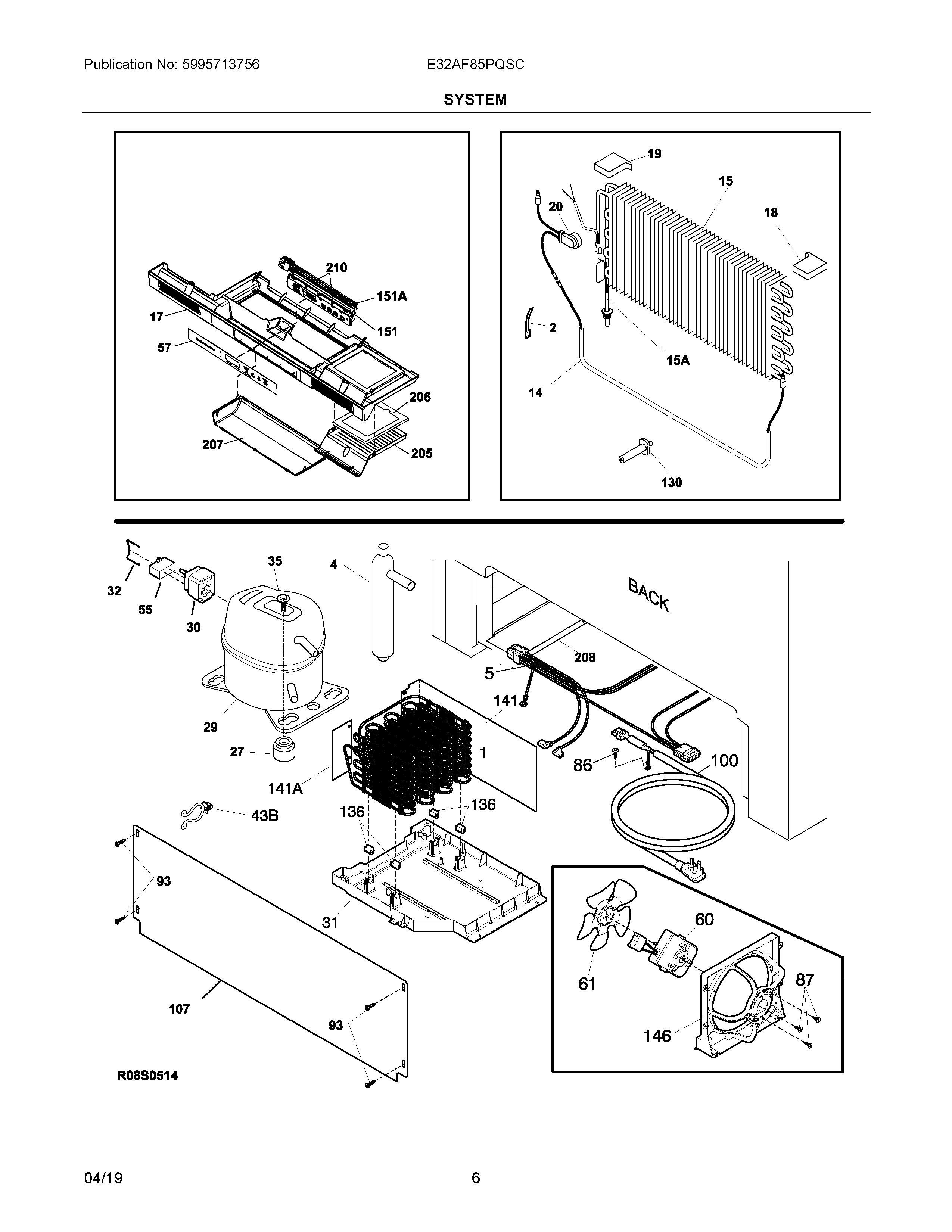

E32AF85PQSC 04 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NI297110400 Frigidaire Refrigerator Thermistor
NI241853202 Frigidaire Refrigerator Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIA216337701 Frigidaire Refrigerator Screw
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5297325500 Frigidaire Refrigerator Main Harness
14216730700 Frigidaire Refrigerator Defrost Heater
15A297217900 Frigidaire Refrigerator Suction Tube
15297414901 Frigidaire Refrigerator Evaporator
17BOX-CONTROL
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20297216600 Frigidaire Refrigerator Defrost Thermostat
27297293302 Frigidaire Refrigerator Grommet
295304494536 Frigidaire Compressor
30297237702 Frigidaire Refrigerator Start Relay
31297165800 Frigidaire Refrigerator Drain Pan
32Clip,controller ,compressor
35297368501 Frigidaire Bolt
43B297315800 Frigidaire Refrigerator Clip
55WCI 297286802
57297269402 Frigidaire Refrigerator Overlay
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
645304455846 Frigidaire Refrigerator Clamp
86216036601 Frigidaire Refrigerator Screw
87216858001 Frigidaire Refrigerator Screw
100297366805 Frigidaire Refrigerator Cord
107297165400 Frigidaire Refrigerator Access Cover
130297244700 Frigidaire Refrigerator Support
136240405201 Frigidaire Refrigerator Grommet
141297164200 Frigidaire Divider
141A297194700 Frigidaire Divider
146WCI 297164000
151A808772801 Frigidaire Refrigerator Jumper Harness
1515304497789 Frigidaire Refrigerator Controller
205HOLDER, AIR FILTER
206EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
207SHIELD-LIGHT, WHITE
210216905301 Frigidaire Refrigerator Screw
