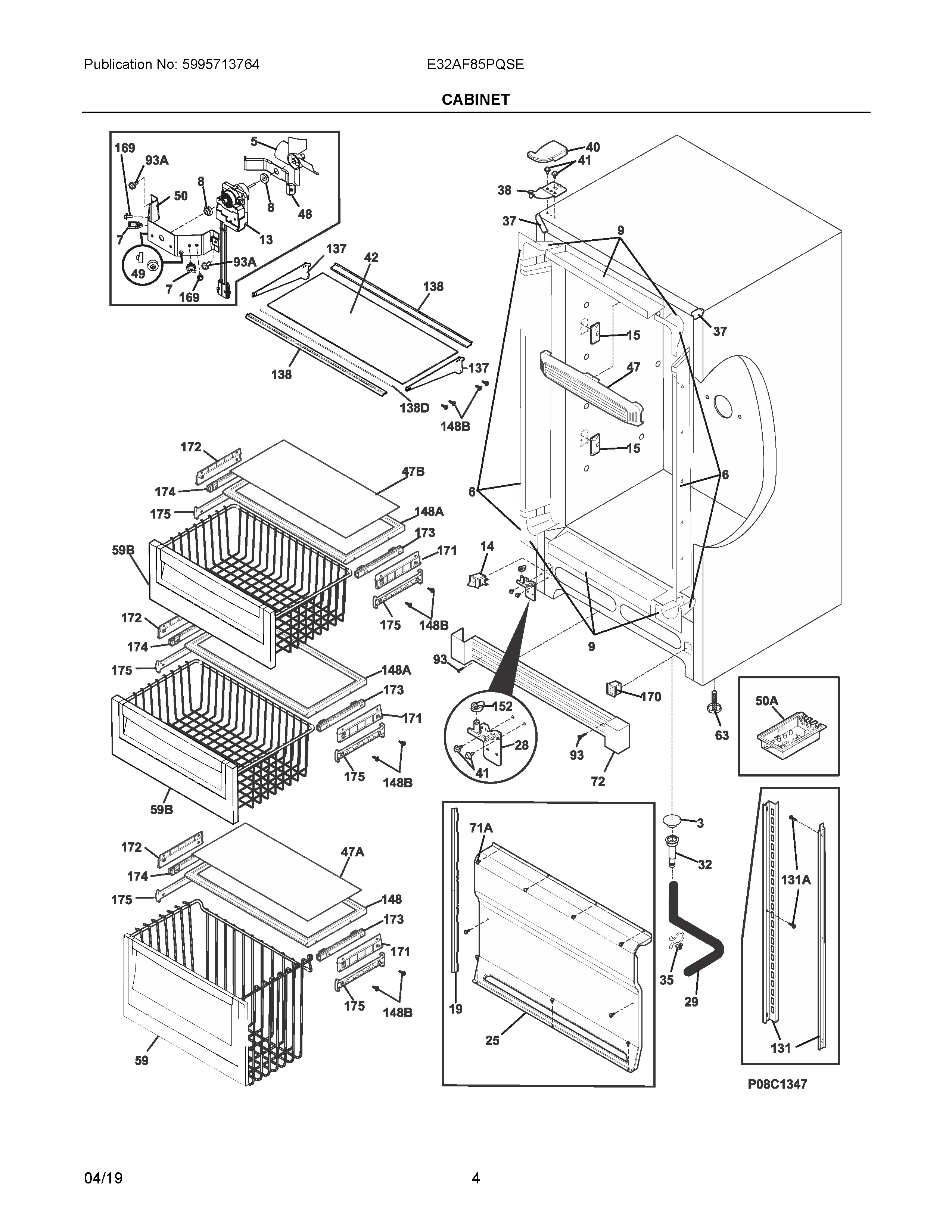

E32AF85PQSE 03 – CABINET

E32AF85PQSE 03 – CABINET

Written by

in

E32AF85PQSE 03 – CABINET

Products

Position	Product
NI	297001704 Frigidaire Refrigerator Insulation
NI	TRIM KIT, BUILT IN, DUAL, COMPLETE, TRIMKITSS2
NIB	Bracket,RH leg levelor
NIA	Bracket,LH leg levelor
NI	WCI 5303313703
NI	TRIM KIT, BUILT IN, SINGLE, COMPLETE, TRIMKITSS1
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	297200900 Frigidaire Refrigerator Breaker Kit W/Corne
7	WCI 216327800
8	5304495760 Frigidaire Refrigerator Bushing
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
10	BREAKER, CORNERS
13	5304504914 Frigidaire Refrigerator Motor
14	216822900 Frigidaire Refrigerator Switch
15	LIGHT-LED
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	COVER-EVAPORATOR
28	297302513 Frigidaire Refrigerator Hinge-Lower
29	5304510353 Frigidaire Refrigerator Hose
35	216273000 Frigidaire Refrigerator Strap
37	297273906 Frigidaire Refrigerator Corner Trim Cabinet
38	HINGE-UPPER, LH
40	COVER-HINGE, GRAY, LH
41	240578902 Frigidaire Screw Mounting Hinge
42	SHELF-GLASS
47B	297291301 Frigidaire Refrigerator Glass
47	297192903 Frigidaire Refrigerator Baffle
47A	297291300 Frigidaire Refrigerator Glass
48	297436400 Frigidaire Refrigerator Bracket-Fan Motor
49	297436200 Frigidaire Grommet
50	216394050 Frigidaire Refrigerator Bracket
50A	BOARD-LED POWER
59B	BASKET, ASSY-MID LEVEL
59	BASKET, ASSY, TALL
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	GRILLE, KICKPLATE, GREY
93A	241853202 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
131A	SCREW, TH, 8-18X.470 AB QX, WHITE, (6)
131	CHANNEL-SHELF MTG, SIDE, (2)
137	297296511 Frigidaire Refrigerator Bracket-Shelf
138	TRIM-SHELF
138D	297350900 Frigidaire Refrigerator Gasket
148	FRAME, BASKET-COVER, TALL
148A	FRAME, BASKET, MID-LEVEL
148B	297142600 Frigidaire Refrigerator/Freezer Screw
169	216912401 Frigidaire Refrigerator Screw
170	297280403 Frigidaire Refrigerator Valve
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304517648 Frigidaire Refrigerator Basket-Slide
174	5304517649 Frigidaire Refrigerator Basket-Slide
175	297099500 Frigidaire Refrigerator Support
