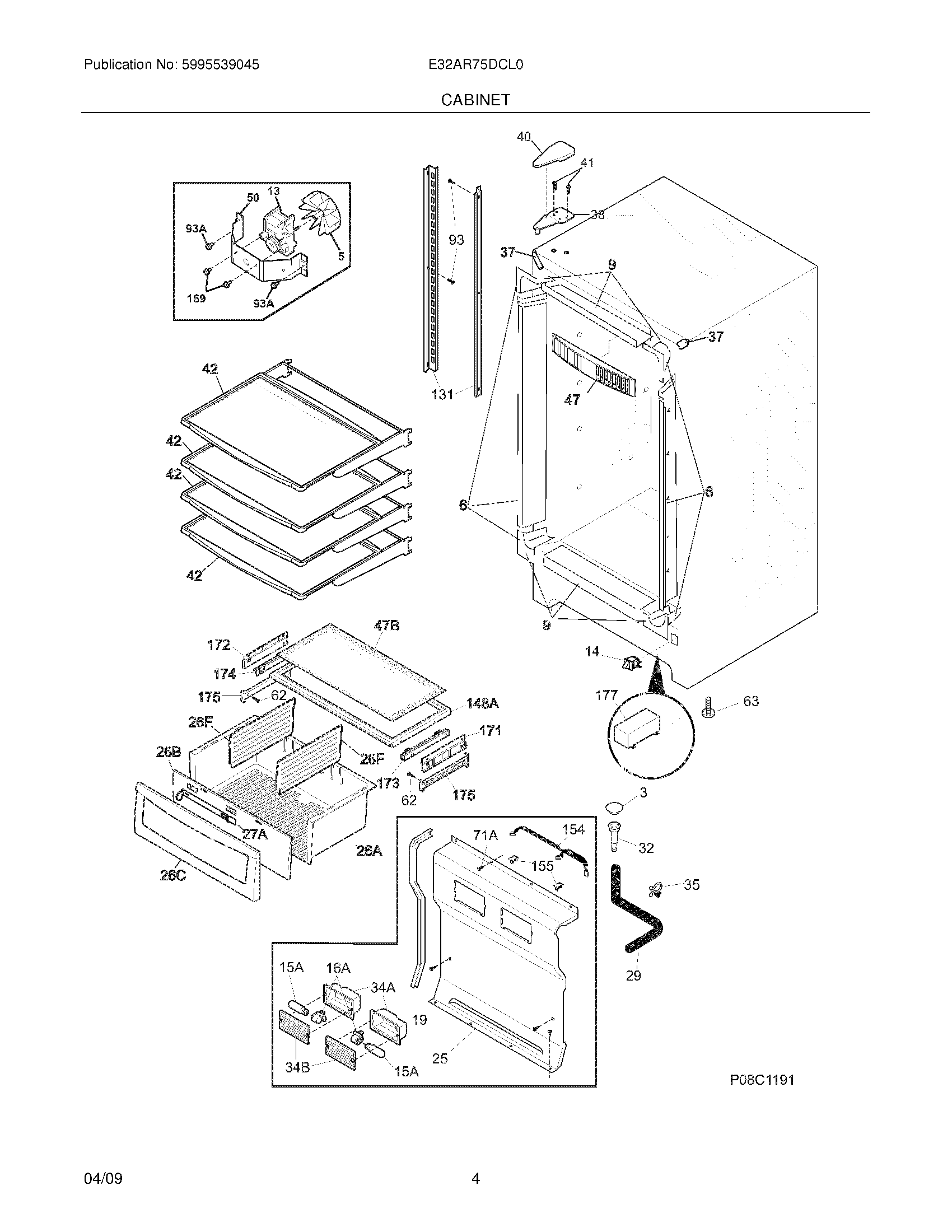

E32AR75DCL0 05 – CABINET

Products

Position	Product
NI	241500305 Frigidaire Refrigerator Screw
NI	Kit,panel mounting ,w/instructions
NI	WCI 7297226505
NI	WCI 7297001704
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
3	216503100 Frigidaire Refrigerator Screen-Drain
6	WCI 7297200600
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15A	241552802 Frigidaire Refrigerator Light Bulb
16A	297139501 Frigidaire Refrigerator Socket
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	WCI 297099254
26C	WCI 7297091703
26F	WCI 7297099401
26A	WCI 7297091601
26B	WCI 7297091800
27A	240362201 Frigidaire Refrigerator Humidity Control
29	WCI 7216313501
32	5304511843 Frigidaire Refrigerator Sleeve
34B	297053200 Frigidaire Refrigerator Lens
34A	WCI 7297053100
35	216273000 Frigidaire Refrigerator Strap
37	5303918606 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	WCI 7297164402
41	240578902 Frigidaire Screw Mounting Hinge
42	Shelf-sliding,(4)
47B	WCI 7297102701
47	WCI 7297133000
50	WCI 708013207
62	297142600 Frigidaire Refrigerator/Freezer Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x 0.470
93	216858001 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
131	WCI 7297108300
148	WCI 7297092502
154	297053000 Frigidaire Refrigerator Wire
169	216912401 Frigidaire Refrigerator Screw
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304515502 Frigidaire Refrigerator Slide
174	5304515501 Frigidaire Refrigerator Slide
175	297099500 Frigidaire Refrigerator Support
177	WCI 7297116000
