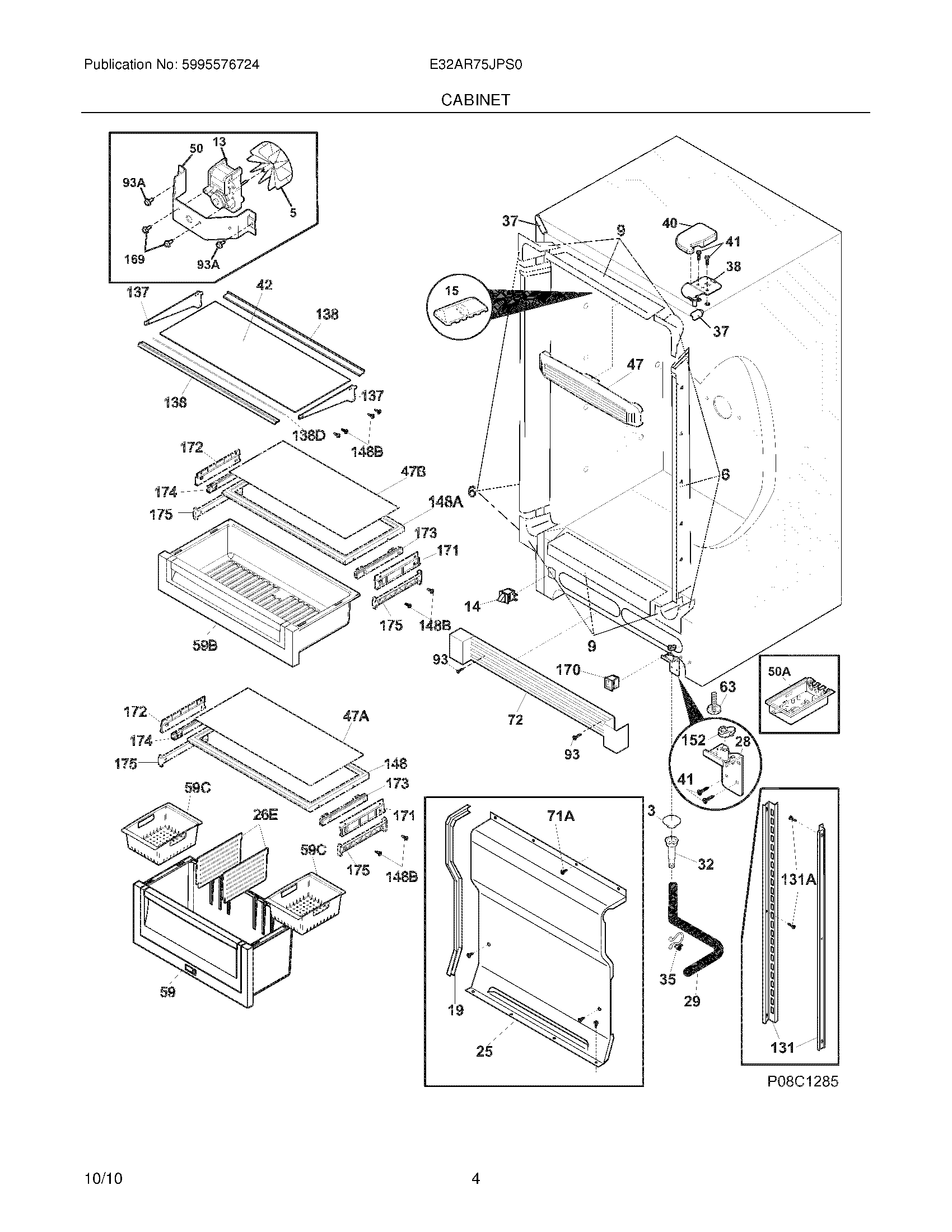

E32AR75JPS0 05 – CABINET

Products

Position	Product
NI	297001704 Frigidaire Refrigerator Insulation
NI	WCI 297305500
NI	Bracket,RH leg levelor
NI	Bracket,LH leg levelor
NI	WCI 297330202
NI	WCI 216327800
3	216503100 Frigidaire Refrigerator Screen-Drain
5	FAN BLADE, EVAPORATOR
6	297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	WCI 241891102
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	COVER-EVAPORATOR
26E	WCI 297099400
28	5303018740 Frigidaire Refrigerator Freezer Hinge Kit
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
35	216273000 Frigidaire Refrigerator Strap
37	297273906 Frigidaire Refrigerator Corner Trim Cabinet
38	HINGE-UPPER, RH
40	COVER-HINGE, GRAY, RH
41	240578902 Frigidaire Screw Mounting Hinge
42	SHELF-GLASS
47A	297291300 Frigidaire Refrigerator Glass
47B	297291301 Frigidaire Refrigerator Glass
47	297192903 Frigidaire Refrigerator Baffle
50A	241852501 Frigidaire Refrigerator Clip
50A	WCI 241891605
50	WCI 08013207
59C	BIN, CRISPER, TALL
59	WCI 297259700
59B	DRAWER, DELI-ASSY
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	5304510562 Frigidaire Refrigerator Kickplate Grille
93	216858001 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
131	SCREW, TH, 8-18X.470 AB QX, WHITE, (6)
131	297130200 Frigidaire CHANNEL-SHELF MTG
137	297296511 Frigidaire Refrigerator Bracket-Shelf
138	TRIM-SHELF
138	297350900 Frigidaire Refrigerator Gasket
148	297142600 Frigidaire Refrigerator/Freezer Screw
148	FRAME, DELI DRAWER
148	FRAME, CRISPER-COVER
152	BEARING-HINGE
169	216912401 Frigidaire Refrigerator Screw
170	297280403 Frigidaire Refrigerator Valve
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304515502 Frigidaire Refrigerator Slide
174	5304515501 Frigidaire Refrigerator Slide
175	297099500 Frigidaire Refrigerator Support
