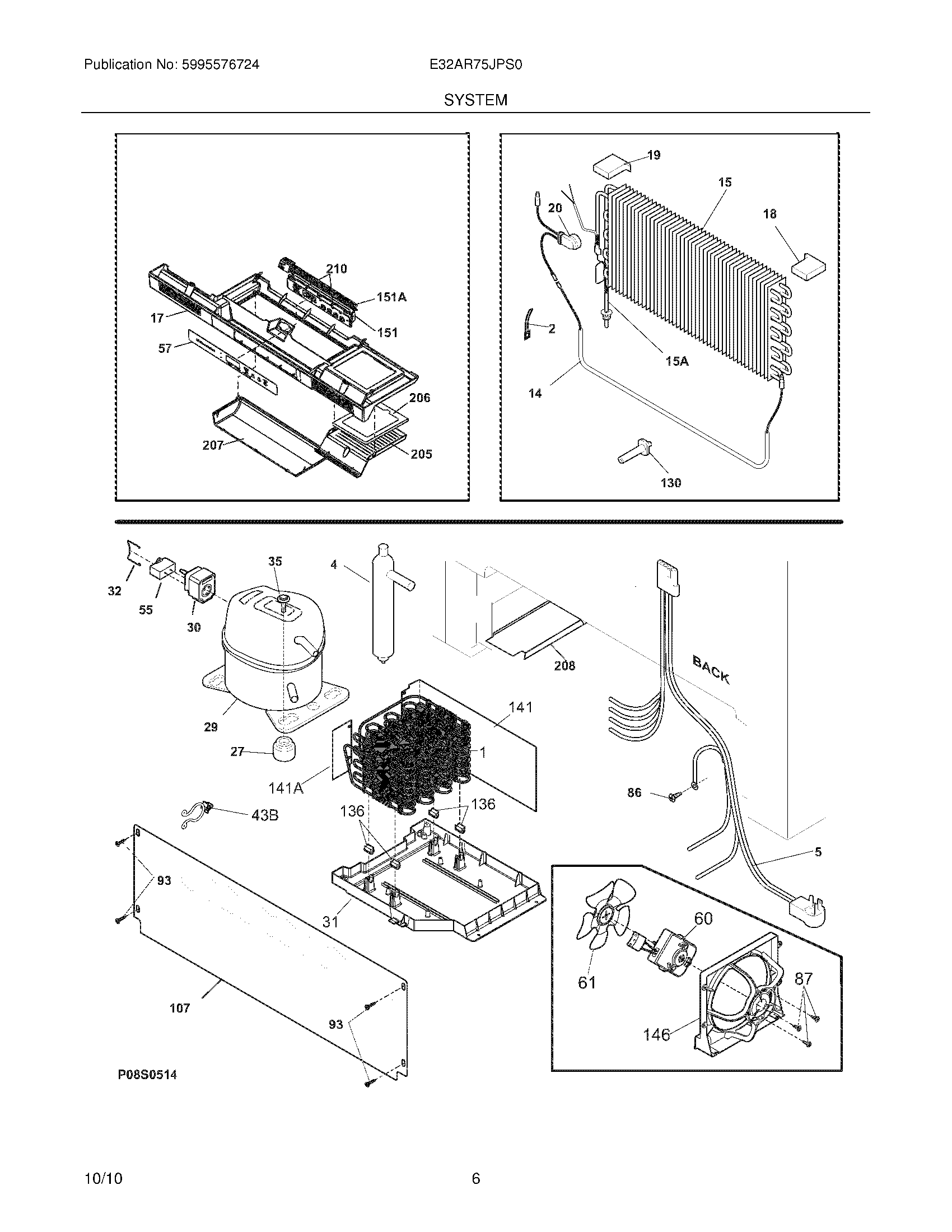

E32AR75JPS0 07 – SYSTEM

E32AR75JPS0 07 – SYSTEM

Written by

in

E32AR75JPS0 07 – SYSTEM

Products

Position	Product
NI	WCI 216502500
NI	297366805 Frigidaire Refrigerator Cord
NI	241853202 Frigidaire Refrigerator Screw
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	297110400 Frigidaire Refrigerator Thermistor
1	297152200 Frigidaire Refrigerator Condenser
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	297325400 Frigidaire Refrigerator Main Harness
14	216730700 Frigidaire Refrigerator Defrost Heater
15	297414901 Frigidaire Refrigerator Evaporator
15A	297217900 Frigidaire Refrigerator Suction Tube
17	BOX-CONTROL
18	297078701 Frigidaire Refrigerator Insulator-Evaporator
19	297078801 Frigidaire Refrigerator Evaporator Insulator
20	DEFROST THERMOSTAT
27	297293302 Frigidaire Refrigerator Grommet
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	216954210 Frigidaire Refrigerator Controller
31	297165800 Frigidaire Refrigerator Drain Pan
32	241544101 Frigidaire Refrigerator Clamp
35	WCI 297177200
43B	297315800 Frigidaire Refrigerator Clip
55	5304464438 Frigidaire Compressor Run Capacitor
57	297269402 Frigidaire Refrigerator Overlay
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
86	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
107	297165400 Frigidaire Refrigerator Access Cover
130	297244700 Frigidaire Refrigerator Support
136	240405201 Frigidaire Refrigerator Grommet
141	297194700 Frigidaire Divider
141	297164200 Frigidaire Divider
146	WCI 297164000
146	216337701 Frigidaire Refrigerator Screw
151	297326501 Frigidaire Electronic Control
151	808772801 Frigidaire Refrigerator Jumper Harness
205	HOLDER, AIR FILTER
206	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
207	SHIELD-LIGHT, WHITE
208	GUARD-WIRE
210	216905301 Frigidaire Refrigerator Screw
