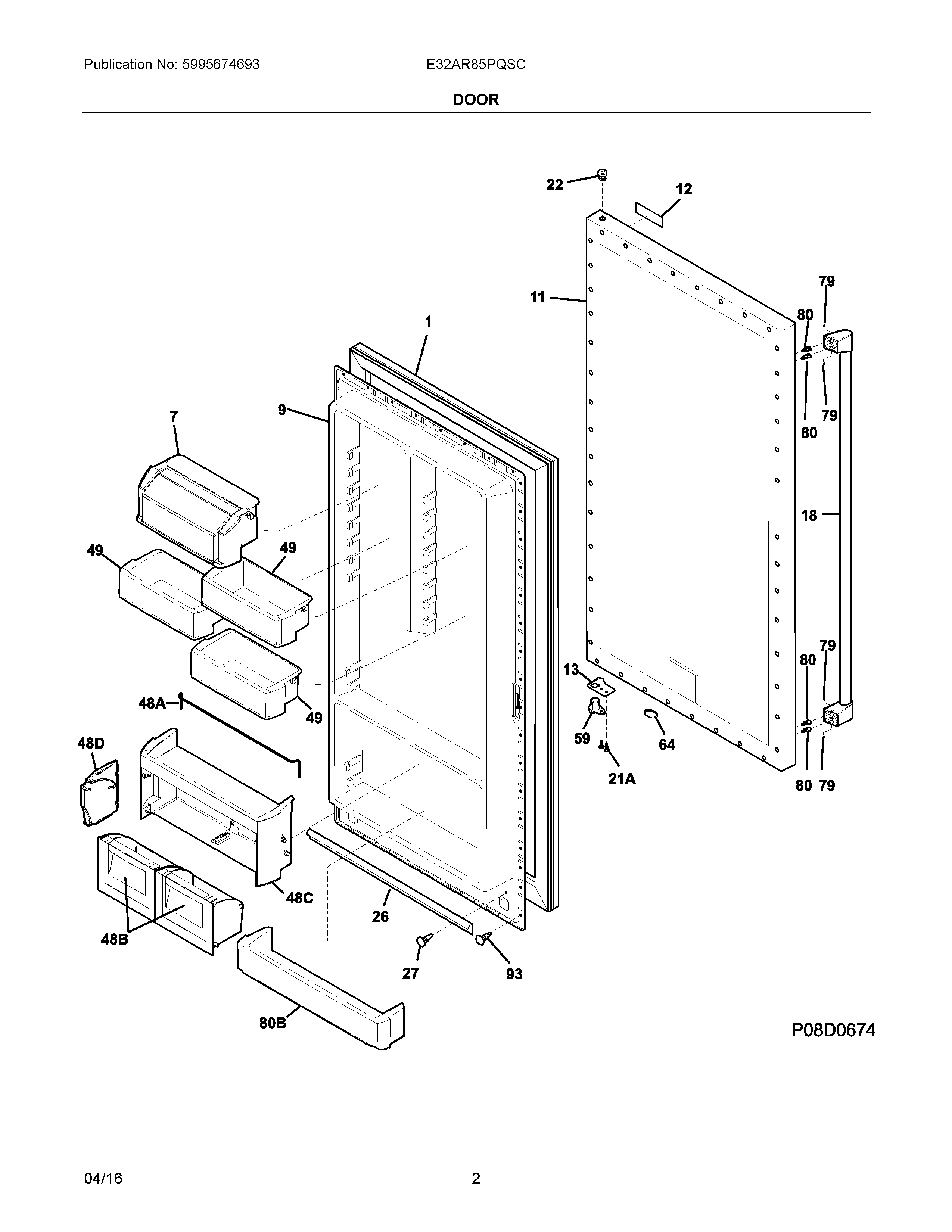

E32AR85PQSC 02 – DOOR

E32AR85PQSC 02 – DOOR

Written by

in

E32AR85PQSC 02 – DOOR

Products

PositionProduct
NI297048000 Frigidaire Refrigerator Screw
NILABEL, QUICK START
NIB241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI240537301 Frigidaire Refrigerator Anchor Nut
NIA5304467131 Frigidaire Refrigerator Wrench
NIA5304406520 Frigidaire Refrigerator Clip 40 Pack
15304505782 Frigidaire Refrigerator Door Gasket
7DAIRY BIN, ASSEMBLY
9297280801 Frigidaire Refrigerator Panel-Inner Door
11PANEL-OUTER DOOR, STAINLESS STEEL
12241603101 Frigidaire Refrigerator Label-Nameplate
13DOOR STOP, RH
18297330600 Frigidaire Refrigerator Handle Assembly
21A297197500 Frigidaire Refrigerator Screw
22216970802 Frigidaire Refrigerator/Freezer Top Hinge Bearing
26216524201 Frigidaire Refrigerator Gasket
275303212828 Frigidaire Refrigerator Primary Clip
48AWIRE
48DDIVIDER
48C297261700 Frigidaire Refrigerator Shelf-Door
48BBIN-DOOR, TILT OUT
49297291700 Frigidaire Refrigerator Door Bin
59BEARING, DOOR STOP
64PLUG-BUTTON, HOLE FILLER, DOOR BASE
79218755401 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
80BSHELF, CONDIMENT
93216858001 Frigidaire Refrigerator Screw
