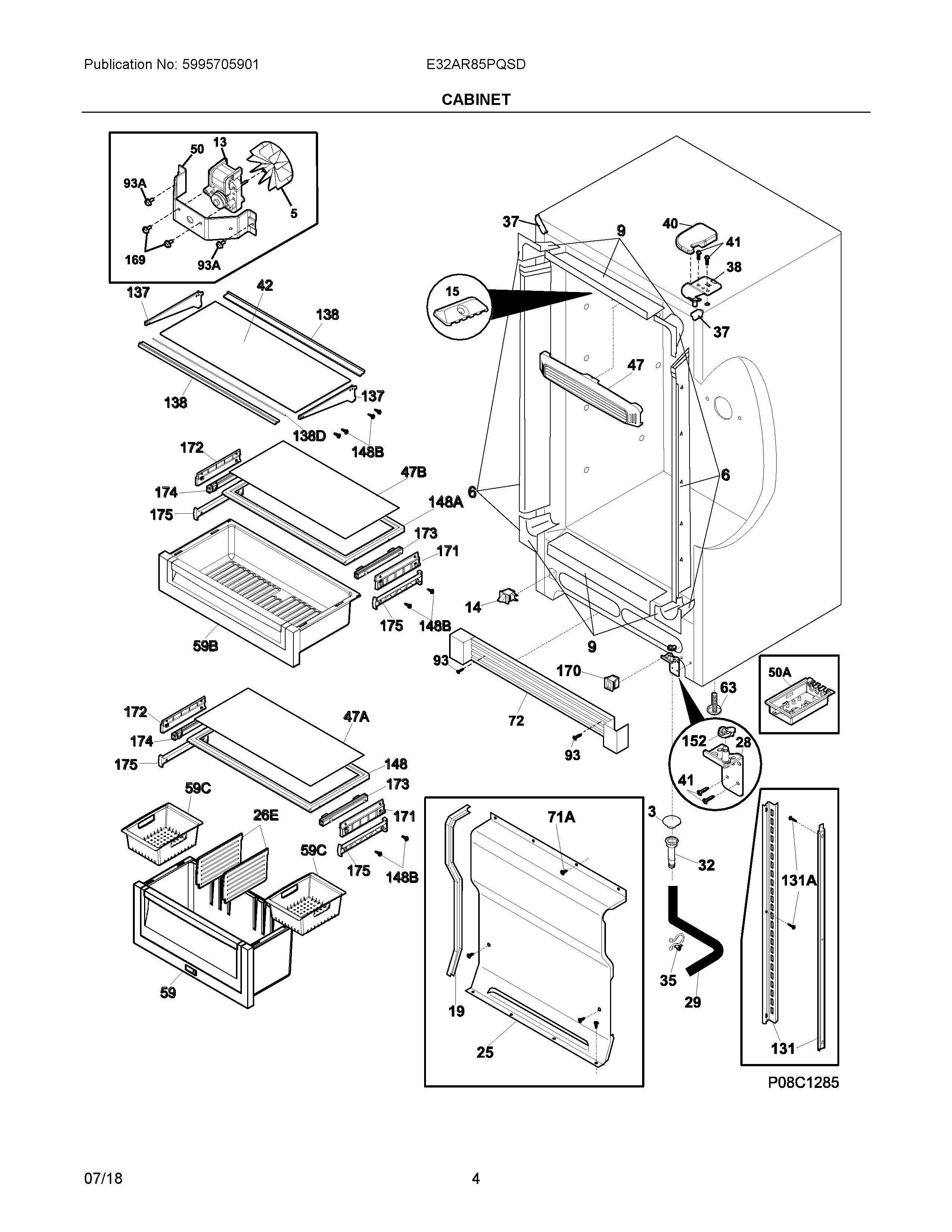

E32AR85PQSD 03 – CABINET

E32AR85PQSD 03 – CABINET

Written by

in

E32AR85PQSD 03 – CABINET

Products

PositionProduct
NIABracket,LH leg levelor
NIBBracket,RH leg levelor
NITRIM KIT, BUILT IN, SINGLE, COMPLETE, TRIMKITSS1
NI297001704 Frigidaire Refrigerator Insulation
NIWCI 297305500
NITRIM KIT, BUILT IN, DUAL, COMPLETE, TRIMKITSS2
NIWCI 5304508336
NIWCI 5303313703
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15LIGHT-LED
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25COVER-EVAPORATOR
26EWCI 297099400
28297302512 Frigidaire Refrigerator Hinge-Lower
295304510353 Frigidaire Refrigerator Hose
30BREAKER, CORNERS
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, RH
40COVER-HINGE, GRAY, RH
41240578902 Frigidaire Screw Mounting Hinge
42SHELF-GLASS
47B297291301 Frigidaire Refrigerator Glass
47297192903 Frigidaire Refrigerator Baffle
47A297291300 Frigidaire Refrigerator Glass
50WCI 08013207
50ABOARD-LED POWER
59CBIN, CRISPER, TALL
59BIN, CRISPER, ASSY
59BDRAWER, DELI-ASSY
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
131297130200 Frigidaire CHANNEL-SHELF MTG
131ASCREW, TH, 8-18X.470 AB QX, WHITE, (6)
137297296511 Frigidaire Refrigerator Bracket-Shelf
138TRIM-SHELF
138D297350900 Frigidaire Refrigerator Gasket
148AFRAME, DELI DRAWER
148B297142600 Frigidaire Refrigerator/Freezer Screw
148FRAME, CRISPER-COVER
152BEARING-HINGE
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304515502 Frigidaire Refrigerator Slide
1745304515501 Frigidaire Refrigerator Slide
175297099500 Frigidaire Refrigerator Support
