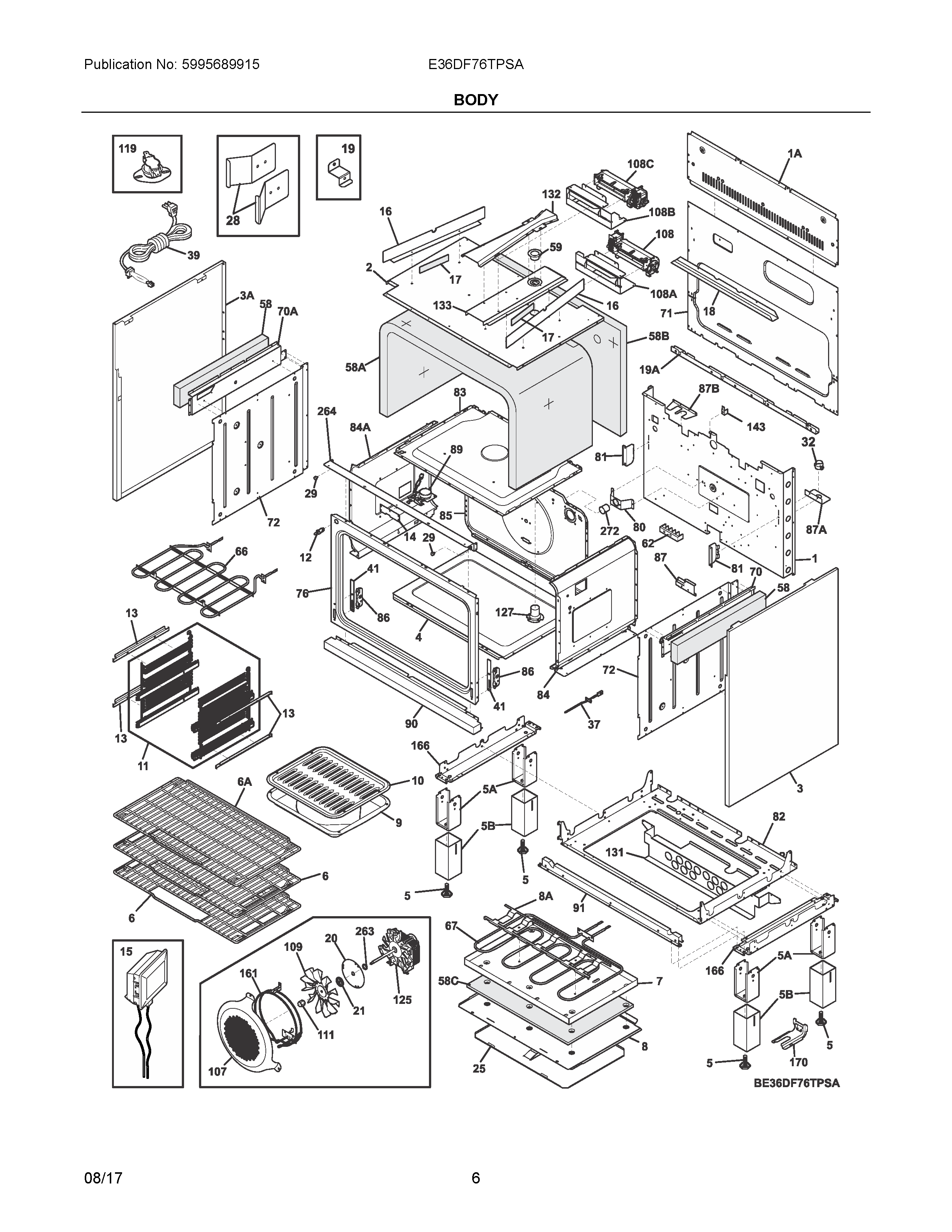

E36DF76TPSA 04 – BODY

E36DF76TPSA 04 – BODY

Written by

in

E36DF76TPSA 04 – BODY

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NIA318946400 Frigidaire Oven Bulb
NIC5303310510 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIB318391100 Frigidaire Oven Screw
NIAWCI 5304463707
NIAWCI 5304481623
NI316001017 Frigidaire Screw
NI316021132 Frigidaire Screw
NIA316116000 Frigidaire Screw
NIWCI 5304509814
NIA316205500 Frigidaire Oven Nut
NI316021105 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021109 Frigidaire Oven Screw
1APANEL, REAR BOX, UPPER
1WCI 5304509790
2WCI 5304509779
3AWCI 318352767
3WCI 318352766
4WCI 318364102
5A318368850 Frigidaire Bracket
5BWCI 318352451
5318175506 Frigidaire Oven Screw
6A808713922 Frigidaire Rack Assembly
6808713921 Frigidaire Rack Assembly
7WCI 318297350
8AWCI 318313605
8PANEL, SERVICE
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11WCI 808713923
12808136601 Frigidaire Oven Switch
13318603908 Frigidaire Oven Bracket
14WCI 5304509798
15WCI 139001800
16WCI 5304509781
17WCI 5304509792
18BRACKET, FLOW GUIDE, (2)
19WCI 318533750
19AWCI 318533705
20WCI 318389400
21318389000 Frigidaire Oven Seal
25318291900 Frigidaire Bracket Assembly
285304509796 Frigidaire Bracket
29316517600 Frigidaire Oven Spacer
32BUSHING, POWER CORD, SNAP TIE
37SENSOR
39CORD, RANGE POWER, 4 WIRE
415304517729 Frigidaire Oven Spacer
58BINSULATION, OVEN BACK
58AWCI 5304509791
58INSULATION, OVEN WRAPPER, EXTENSIONS
58CWCI 318294913
59318072577 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255858 Frigidaire Oven Element
67318254905 Frigidaire Oven Element
70WCI 5304509801
70AWCI 5304509800
71WCI 318260063
72SHIELD, INSULATION, SIDE, (2)
76318364902 Frigidaire Front
80WCI 318364800
81WCI 318373700
82SHIELD, INSULATION, LOWER
83WCI 318364202
84WCI 318364382
84AWCI 318364314
85WCI 318364408
86318241406 Frigidaire Receptacle
875304508575 Frigidaire Bracket
87AWCI 318111820
87B318111817 Frigidaire Plate
89139021302 Frigidaire Oven Motor
90WCI 318355052
91318376300 Frigidaire Bracket
107318906601 Frigidaire Oven Cover
108BWCI 5304509830
108AWCI 5304509829
108CWCI 5304509775
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
1255304463302 Frigidaire Convection Motor
127WCI 318357002
131WCI 5304509788
132WCI 318347800
133WCI 5304509782
143318172904 Frigidaire Bracket
161318255511 Frigidaire Oven Heating Element
166WCI 318352550
170316112009 Frigidaire Anti-Tip Kit
264WCI 5304509784
272318249411 Frigidaire Tube
