E36DF76TPSB 03 – BURNER

E36DF76TPSB 03 – BURNER

Written by

in

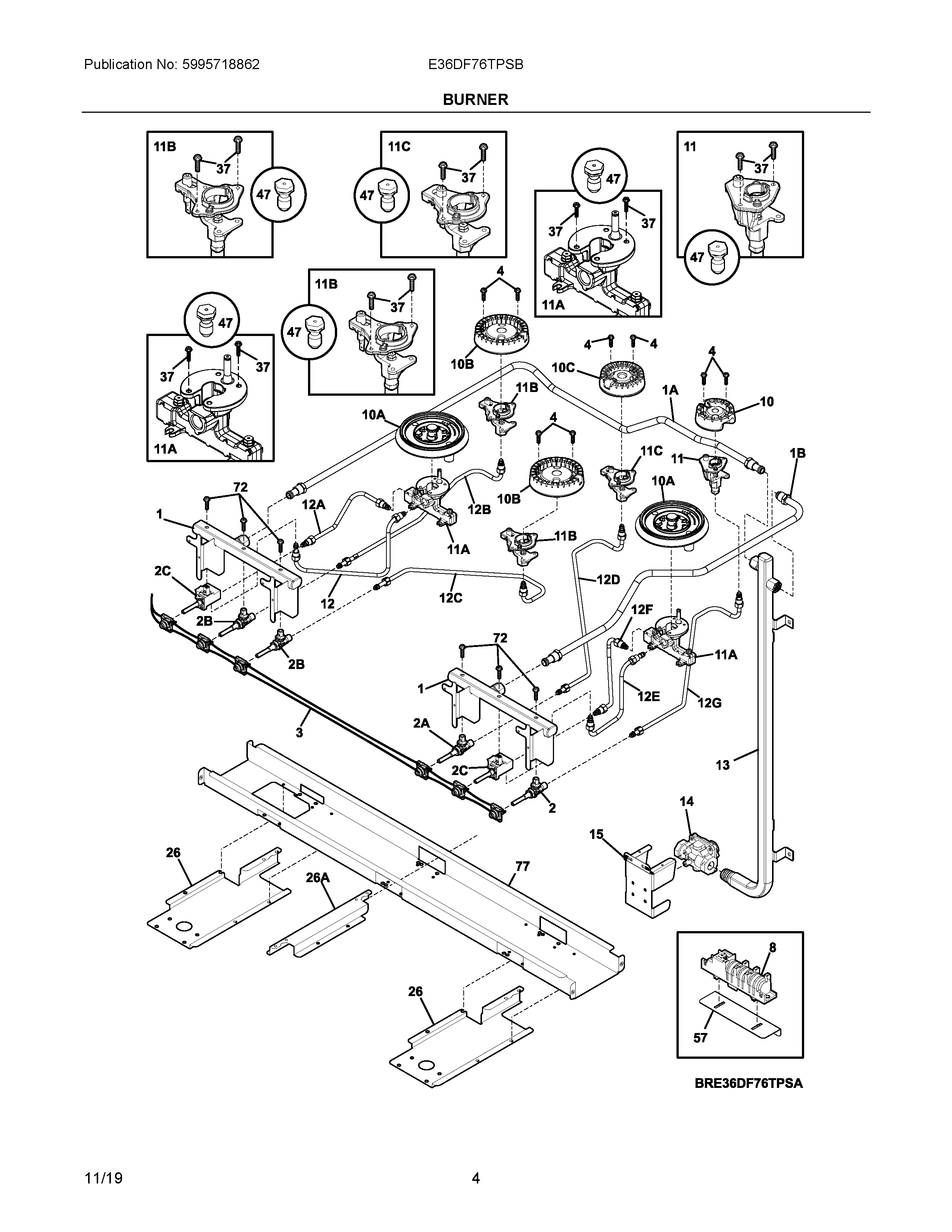

E36DF76TPSB 03 – BURNER

Products

PositionProduct
NIA5304522577 Frigidaire Harness
NI316566901 Frigidaire Oven Sleeve
1WCI 5304509808
1B318305454 Frigidaire Tube
1A318305453 Frigidaire Oven Tube
2B5304507282 Frigidaire Oven Gas Valve
2C316272310 Frigidaire Oven Valve
25304506548 Frigidaire Oven Valve
2A5304506549 Frigidaire Oven Valve
35304509820 Frigidaire Switch Assembly
4316540900 Frigidaire Oven Screw
8SPARK MODULE
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A5304501023 Frigidaire Burner Assembly
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
11B316543204 Frigidaire Igniter/Orifice Assembly
11A316440109 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11C316540700 Frigidaire Igniter/Orifice Assembly
12GWCI 807544008
12FWCI 807544007
12EWCI 807544006
12DWCI 807544005
12CWCI 807544004
12BWCI 807544003
12AWCI 807544002
12WCI 807544001
13318357811 Frigidaire MANIFOLD
14318122705 Frigidaire Oven Regulator
15BRACKET, REGULATOR
26WCI 318363803
26A318363903 Frigidaire Bracket
37316021105 Frigidaire Oven Screw
47LP KIT, GAS CONVERSION
57WCI 5304509835
72316215600 Frigidaire Oven Screw
77BRACKET, CHANNEL MTG.
