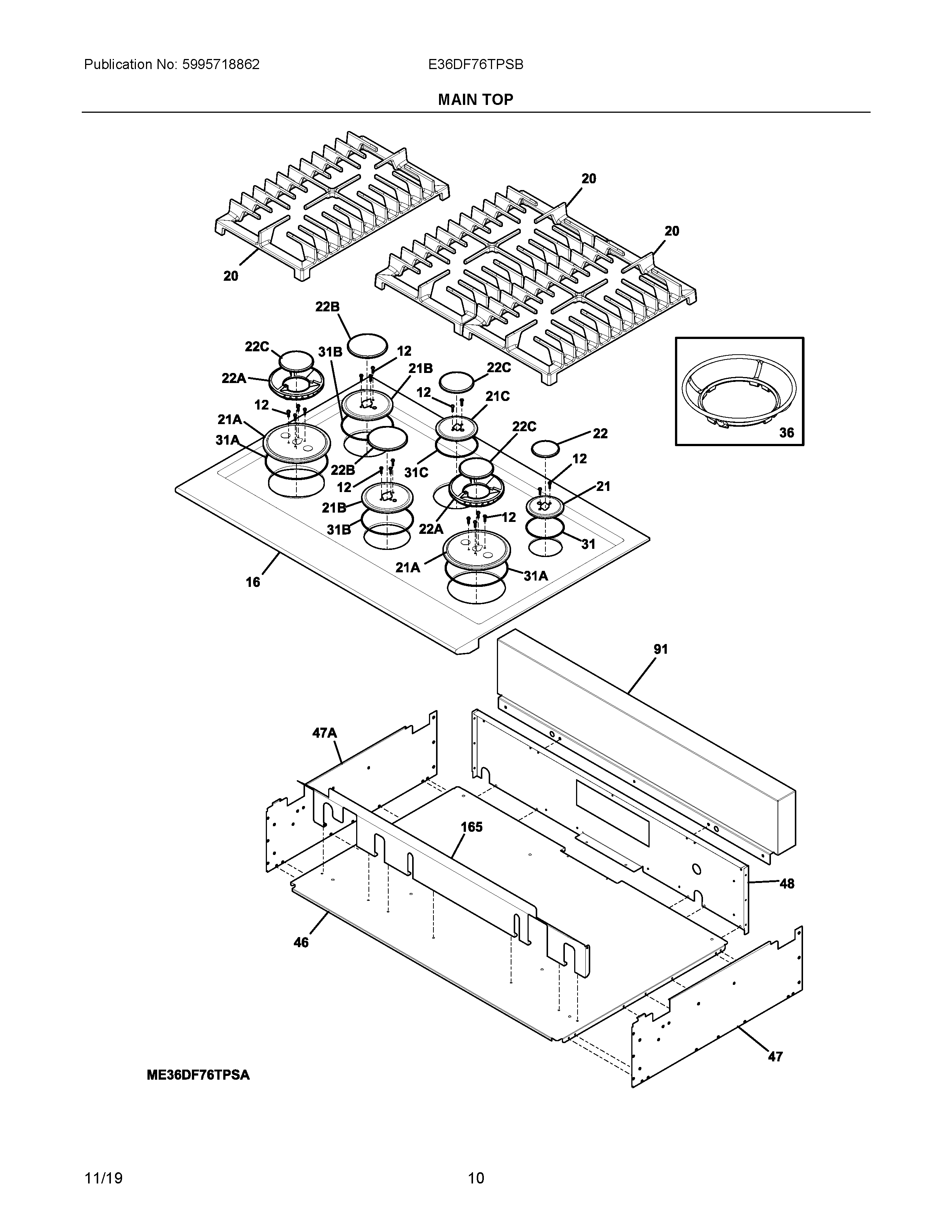

E36DF76TPSB 05 – MAIN TOP

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 318163602
NI	316021109 Frigidaire Oven Screw
12	316540900 Frigidaire Oven Screw
16	318185234 Frigidaire Main Top Assembly
20	5304509811 Frigidaire Oven Grate
21C	318293007 Frigidaire Oven Skirt Assembly
21B	318293308 Frigidaire Oven Skirt
21A	316283900 Frigidaire Skirt
21	318293107 Frigidaire Oven Skirt
22	CAP
22C	5304508442 Frigidaire Oven Surface Burner Cap
22B	5304508443 Frigidaire Oven Surface Burner Cap
22A	5304520332 Frigidaire Oven Cap
31	316242002 Frigidaire Range Burner Seal
31B	316242000 Frigidaire Burner Seal
31A	316515203 Frigidaire Oven Seal
31C	316242001 Frigidaire Oven Burner Seal 9.5k/12k
36	5304509823 Frigidaire Grate
46	WCI 5304509785
47A	WCI 318241707
47	WCI 318241706
48	WCI 5304509832
91	5304509789 Frigidaire Panel
165	WCI 318355151
