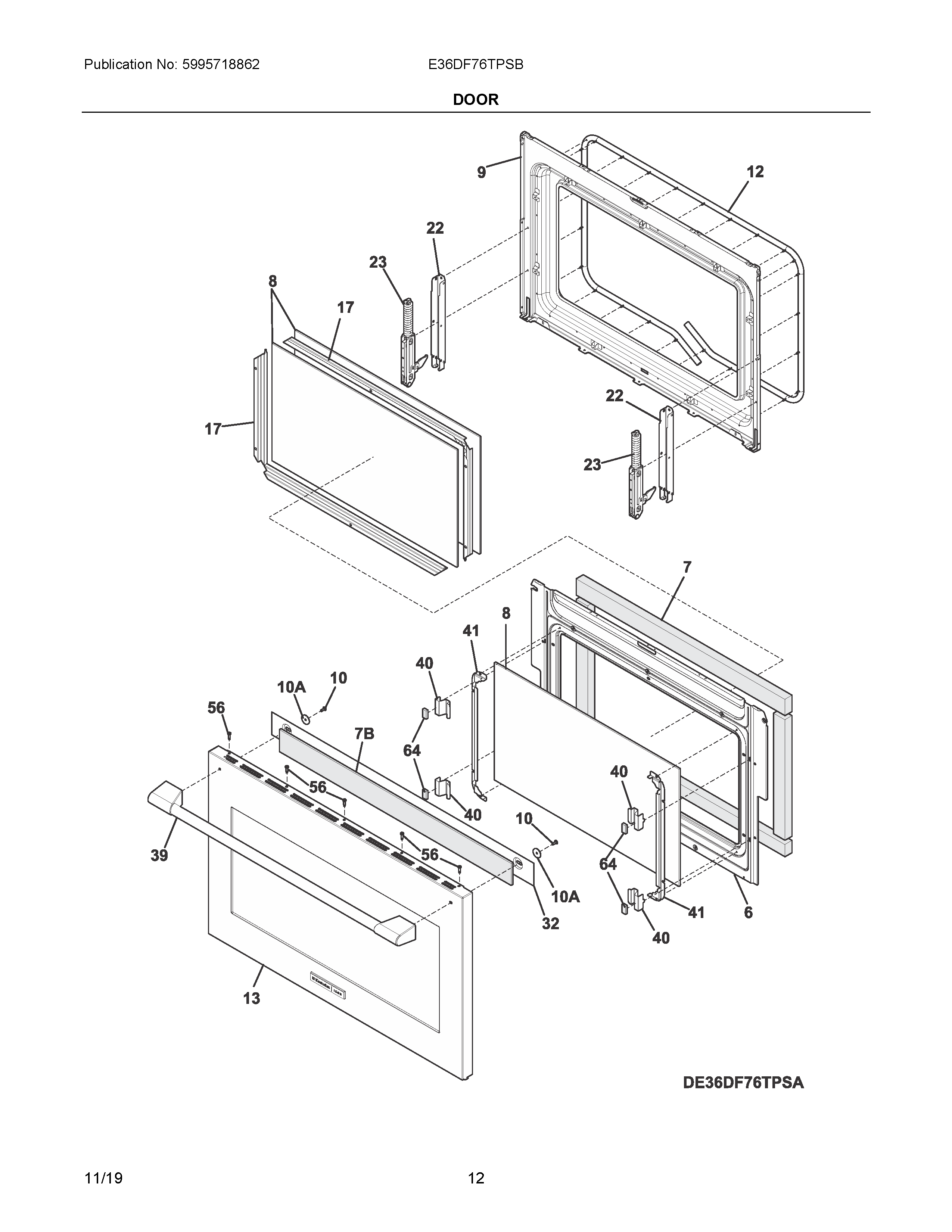

E36DF76TPSB 06 – DOOR

Products

Position	Product
NIA	WCI 5304437044
NIA	316021109 Frigidaire Oven Screw
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	316483102 Frigidaire Oven Label
NI	WCI 318163602
NIA	807597603 Frigidaire Oven Screw
6	BAFFLE, DOOR
7	807354901 Frigidaire Insulation Assembly
7B	5304512679 Frigidaire Insulation
8	318212250 Frigidaire Oven Glass
9	318364602 Frigidaire Oven Liner
10A	WASHER, HANDLE SCREW
10	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
12	SEAL, OVEN DOOR
13	WCI 139039585
17	SPACER, DOOR GLASS, (2)
22	318353803 Frigidaire Oven Retainer
23	318244307 Frigidaire Hinge Assembly
32	318390500 Frigidaire DEFLECTOR
39	318392420 Frigidaire Handle
40	BRACKET, GLASS, (4)
41	BRACKET, GLASS RETAINER
56	5304480396 Frigidaire Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
