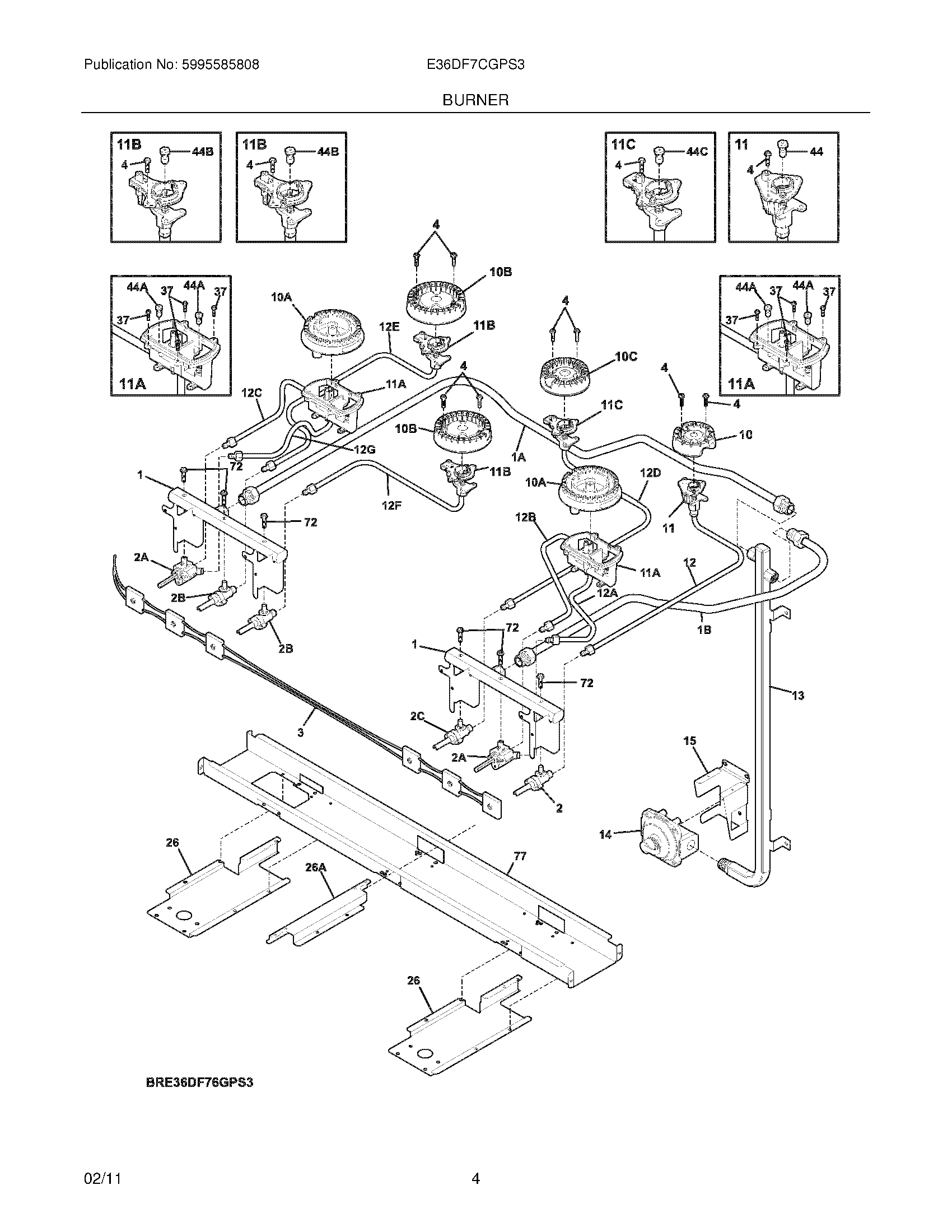

E36DF7CGPS3 05 – BURNER

E36DF7CGPS3 05 – BURNER

Written by

in

E36DF7CGPS3 05 – BURNER

Products

PositionProduct
NI5303211311 Frigidaire Refrigerator Screw
NI5304480396 Frigidaire Screw
NIWCI 318243105
NIWCI 318186928
1B318305454 Frigidaire Tube
1A318305453 Frigidaire Oven Tube
1WCI 318357805
2C316520701 Frigidaire Oven Valve Assembly
2A316574900 Frigidaire Oven Valve
2WCI 316520700
2BWCI 316520703
3318232638 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10AWCI 316525401
11AWCI 316525103
11B316543204 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11C316540700 Frigidaire Igniter/Orifice Assembly
12CWCI 318366722
12GWCI 318366723
12FWCI 318366725
12EWCI 318366724
12DWCI 318366726
12BWCI 318366720
12AWCI 318366721
12WCI 318366711
13318357811 Frigidaire MANIFOLD
14318122705 Frigidaire Oven Regulator
15WCI 318376122
26A318363903 Frigidaire Bracket
26WCI 318363803
44316527504 Frigidaire Oven Orifice
44AWCI 316523512
44B316527511 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44AWCI 316523509
72316215600 Frigidaire Oven Screw
77BRACKET, CHANNEL MTG.
