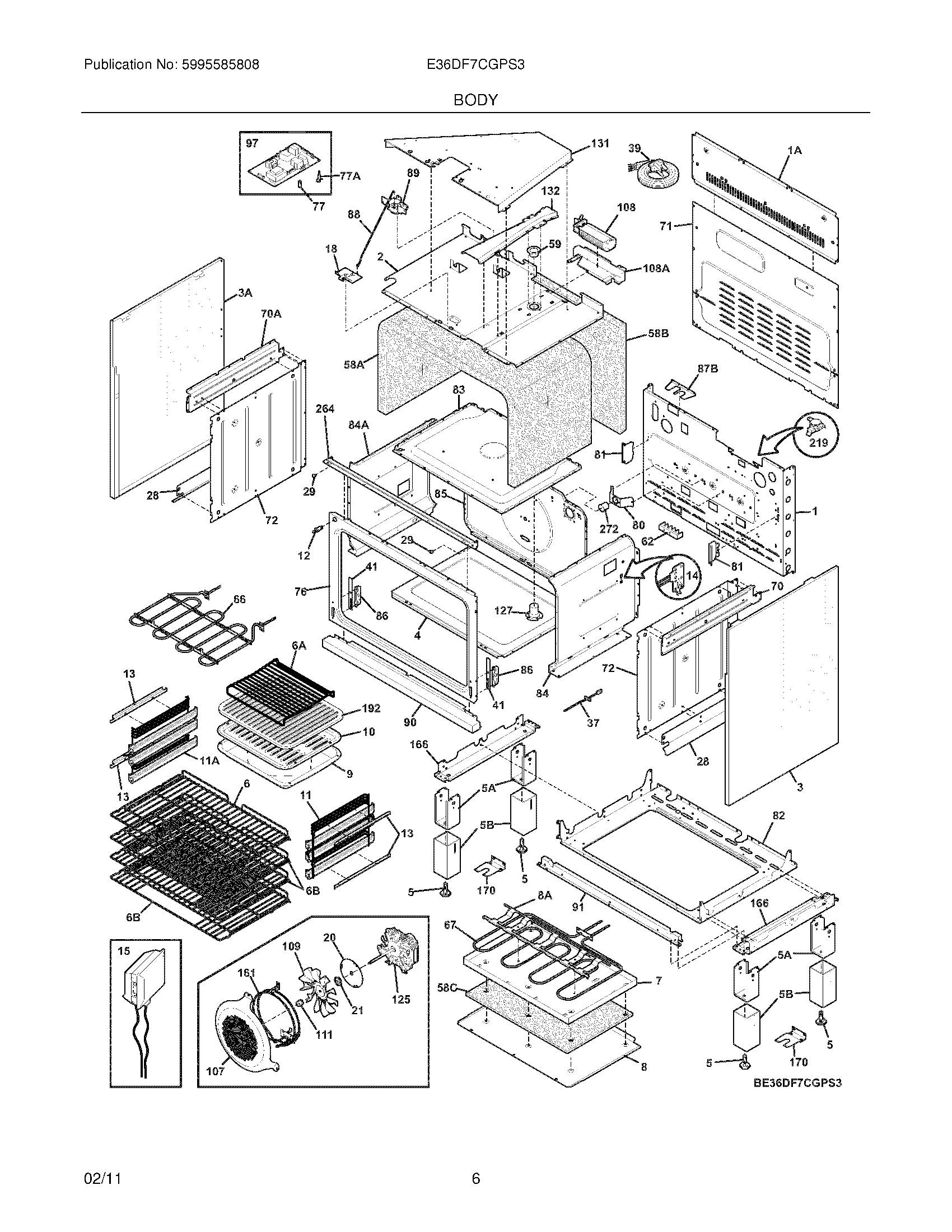

E36DF7CGPS3 07 – BODY

E36DF7CGPS3 07 – BODY

Written by

in

E36DF7CGPS3 07 – BODY

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	5303310510 Frigidaire Oven Screw
NI	WCI 318368404
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	318391100 Frigidaire Oven Screw
NI	WCI 318402211
NI	WCI 5304463707
NI	WCI 5304463705
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318370365
NI	5304453707 Frigidaire Oven Screw
NI	5304480396 Frigidaire Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5304415832 Frigidaire Oven Screw
NI	5303323139 Frigidaire Oven Screw
1	WCI 318259251
1A	PANEL, REAR BOX, UPPER
2	WCI 318258955
3A	WCI 318352755
3	WCI 318352754
4	WCI 318364102
5A	318368850 Frigidaire Bracket
5	318175506 Frigidaire Oven Screw
5B	WCI 318352451
6A	WCI 318365800
6B	WCI 318240251
6	WCI 318240151
7	WCI 318297350
8A	WCI 318313605
8	WCI 318359550
9	318138801 Frigidaire Oven Pan
10	316082001 Frigidaire Oven Insert
11A	WCI 318240055
11	WCI 318240054
12	316445501 Frigidaire Oven Switch
13	318603908 Frigidaire Oven Bracket
14	WCI 318903401
15	WCI 318241006
18	316405800 Frigidaire Assembly Latch
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
28	WCI 318369311
29	316517600 Frigidaire Oven Spacer
37	SENSOR
39	WCI 318113111
41	5304517729 Frigidaire Oven Spacer
58A	WCI 318362117
58B	WCI 318362116
58C	WCI 318294913
59	318072577 Frigidaire Duct
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255851 Frigidaire Element
67	318254905 Frigidaire Oven Element
70A	WCI 318302751
70	WCI 318302750
71	WCI 318260050
72	WCI 318259151
76	318364902 Frigidaire Front
77	Spacer,control
77A	316114100 Frigidaire Oven Spacer
80	WCI 318364800
81	WCI 318373700
82	SHIELD, INSULATION, LOWER
83	WCI 318364202
84	WCI 318364304
84A	WCI 318364314
85	WCI 318364408
86	318241406 Frigidaire Receptacle
87B	318111817 Frigidaire Plate
88	WCI 318376500
89	MOTOR
90	WCI 318355052
91	318376300 Frigidaire Bracket
97	316455705 Frigidaire Oven Board
107	318906601 Frigidaire Oven Cover
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
125	5304463302 Frigidaire Convection Motor
127	WCI 318357002
131	WCI 318272950
132	WCI 318347800
161	318255511 Frigidaire Oven Heating Element
166	WCI 318352550
170	WCI 318335703
219	318004902 Frigidaire Oven Switch
264	WCI 318257753
272	318249411 Frigidaire Tube
