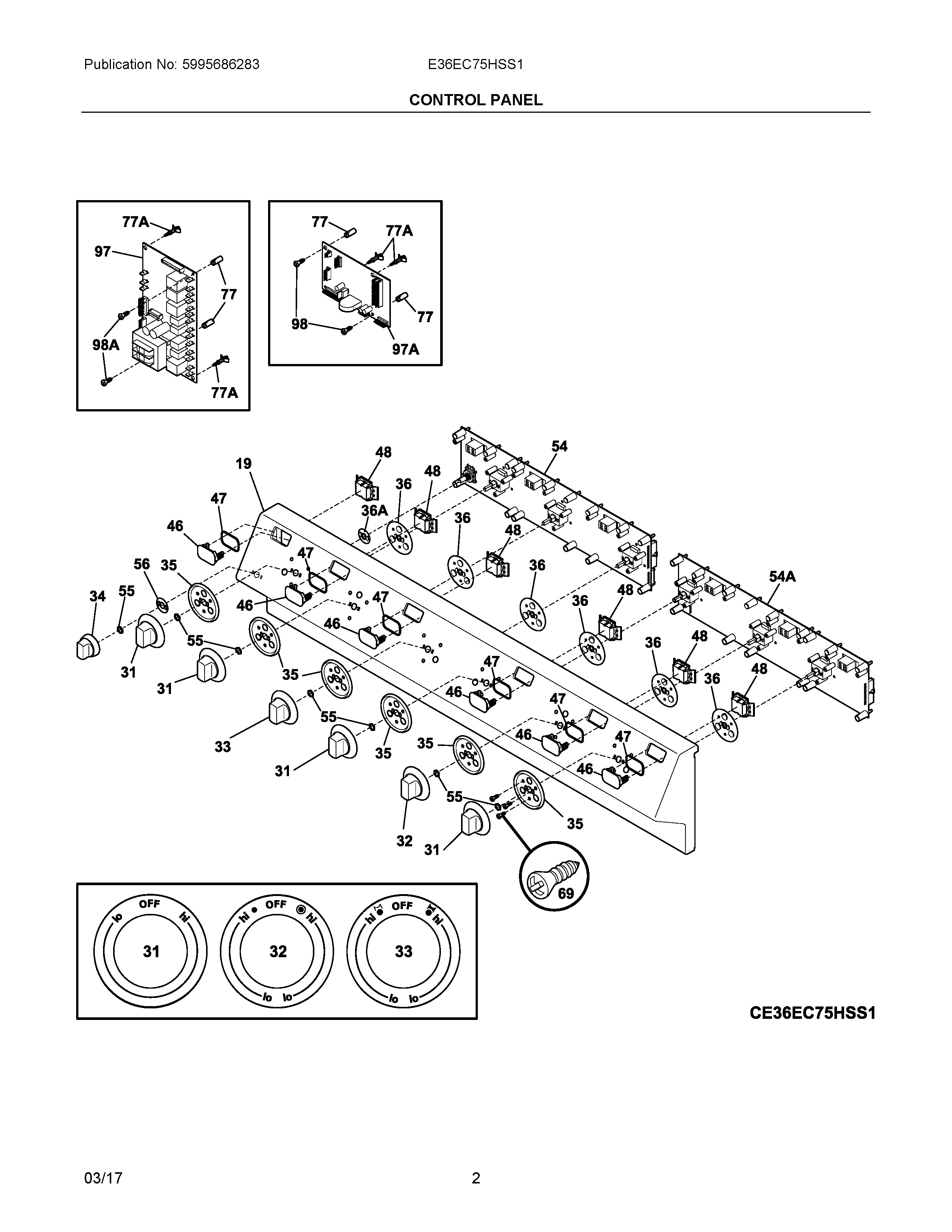

E36EC75HSS1 02 – CONTROL PANEL

E36EC75HSS1 02 – CONTROL PANEL

Written by

in

E36EC75HSS1 02 – CONTROL PANEL

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 5304400192
NIWIRING HARNESS, INTERFACE, TO POWER RELAY
NIA316247800 Frigidaire Oven Washer
NIWIRING HARNESS, INTERFACE, UIB BOARD, TO LH/RH CNTRL
NIWCI 318163602
NIWIRING HARNESS, INTERFACE, UIB BOARD, TO RH CONTROL
NIWIRING HARNESS, INTERFACE, UIB BOARD, TO LH CONTROL
19PANEL, CONTROL, STAINLESS
31KNOB, CONTROL, STAINLESS, (4)
32KNOB, CONTROL, STAINLESS, DUAL
33KNOB, CONTROL, STAINLESS, BRIDGE
34KNOB, SELECTOR, STAINLESS
35SKIRT, (6)
36ABUSHING
36BUSHING, (6)
46318319020 Frigidaire Oven Lens
47WCI 318367102
48GASKET, O'RING
55316247700 Frigidaire Oven Nut
56FLAT WASHER, STAINLESS
69SCREW, 6-32 X 3/8", (4)
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
97WCI 316442113
97AWCI 316442053
98A5303297477 Frigidaire Oven Screw
985304401490 Frigidaire Oven Screw
