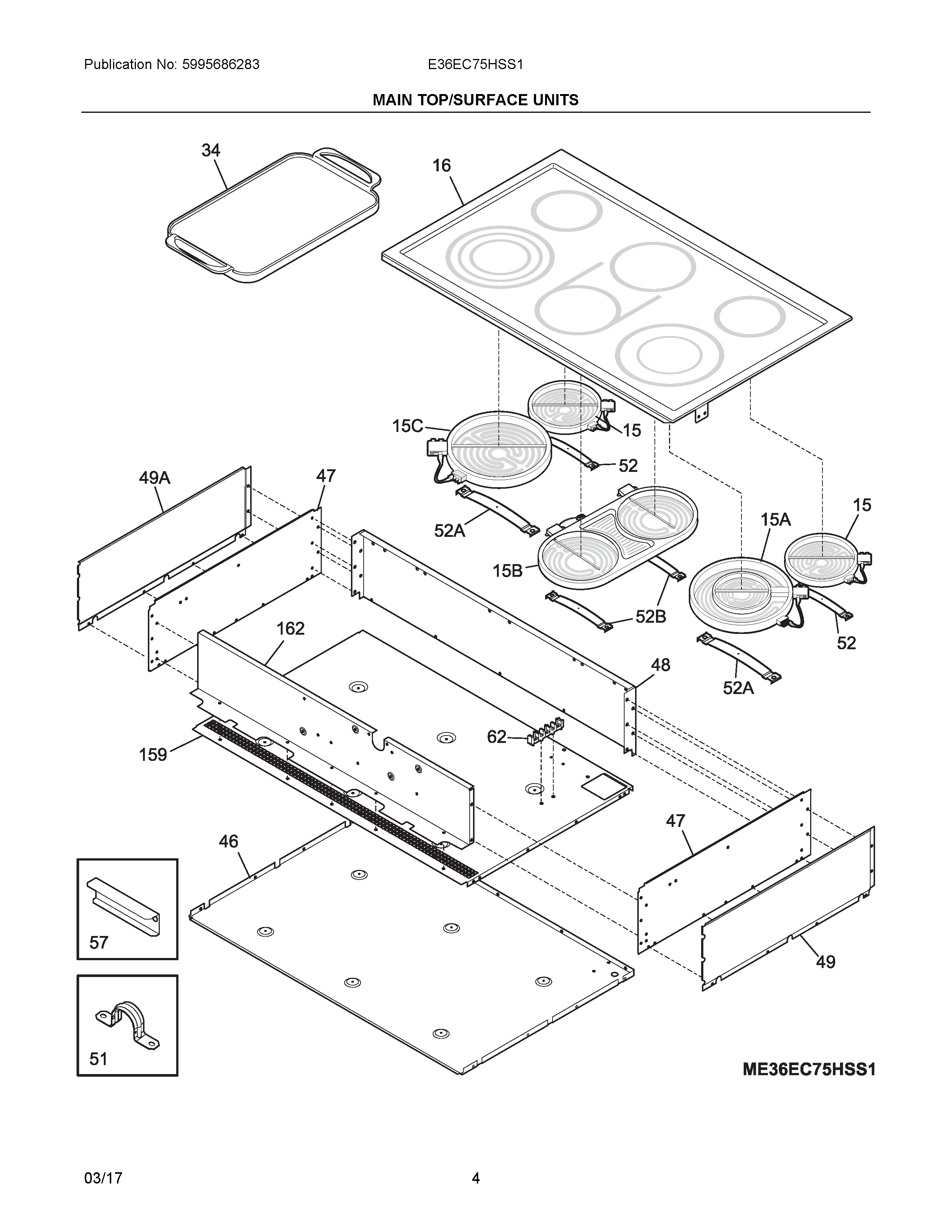

E36EC75HSS1 03 – MAIN TOP/SURFACE UNITS

Products

Position	Product
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5304522474 Frigidaire Box & Wires Assembly
NI	WCI 318406000
NI	5303323140 Frigidaire Oven Screw
NI	HARNESS, WIRING, MAIN
NI	5303323130 Frigidaire Oven Screw
NI	WCI 5304400192
NI	5305511218 Frigidaire Ceramabryte C12 18O
NI	WCI 318163602
NIB	5303323139 Frigidaire Oven Screw
NIA	316205500 Frigidaire Oven Nut
15C	ELEMENT, SURFACE, TRIPLE, 800/900/1000
15B	318258203 Frigidaire Oven Element
15	318178110 Frigidaire Oven Range 6" Surface Element
15A	5304533520 Frigidaire Element
16	MAIN TOP ASSY, FRAME/GLASS, STAINLESS/BLACK
34	5304495353 Frigidaire Oven Griddle
46	PANEL, BASE
47	WCI 318241704
48	PANEL, REAR
49A	PANEL, INTERIOR SIDE, LH
49	PANEL, INTERIOR SIDE, RH
51	318389600 Frigidaire Bracket Assembly
52A	318122010 Frigidaire Oven Spring Assembly
52B	318122008 Frigidaire Oven Spring Assembly
52	318122006 Frigidaire Small Element Mounting Spring
57	PLATE, COVER
62	5304409888 Frigidaire Oven Terminal Block with Hardware
159	PANEL, BOTTOM
162	SHIELD, HEAT
