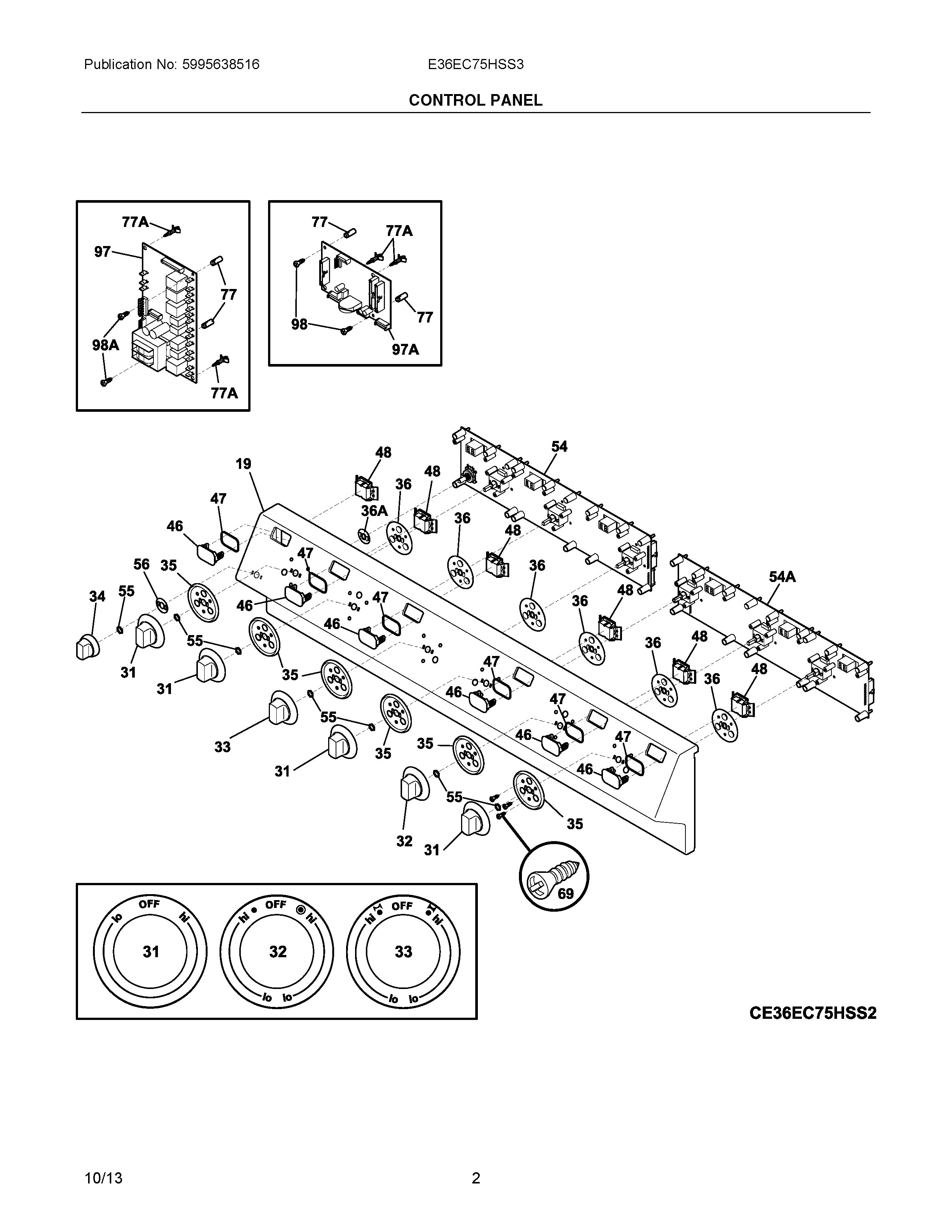

E36EC75HSS3 02 – CONTROL PANEL

E36EC75HSS3 02 – CONTROL PANEL

Written by

in

E36EC75HSS3 02 – CONTROL PANEL

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 5304400192
NIWIRING HARNESS, INTERFACE, TO POWER RELAY
NIA316247800 Frigidaire Oven Washer
NIWIRING HARNESS, INTERFACE, UIB BOARD, TO LH/RH CNTRL
NIWCI 318163602
NIWIRING HARNESS, INTERFACE, UIB BOARD, TO RH CONTROL
NIWIRING HARNESS, INTERFACE, UIB BOARD, TO LH CONTROL
19PANEL, CONTROL, STAINLESS
31KNOB, CONTROL, STAINLESS, (4)
32KNOB, CONTROL, STAINLESS, DUAL
33KNOB, CONTROL, STAINLESS, BRIDGE
34KNOB, SELECTOR, STAINLESS
35SKIRT, (6)
36BUSHING, (6)
36ABUSHING
46318319020 Frigidaire Oven Lens
47CLAMP, LENS
48GASKET, O'RING
54WCI 316541812
54AWCI 316541813
55316247700 Frigidaire Oven Nut
56FLAT WASHER, STAINLESS
69WCI 5304464950
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
97ABOARD, POWER, UIB
97WCI 316442113
985304401490 Frigidaire Oven Screw
98A5303297477 Frigidaire Oven Screw
