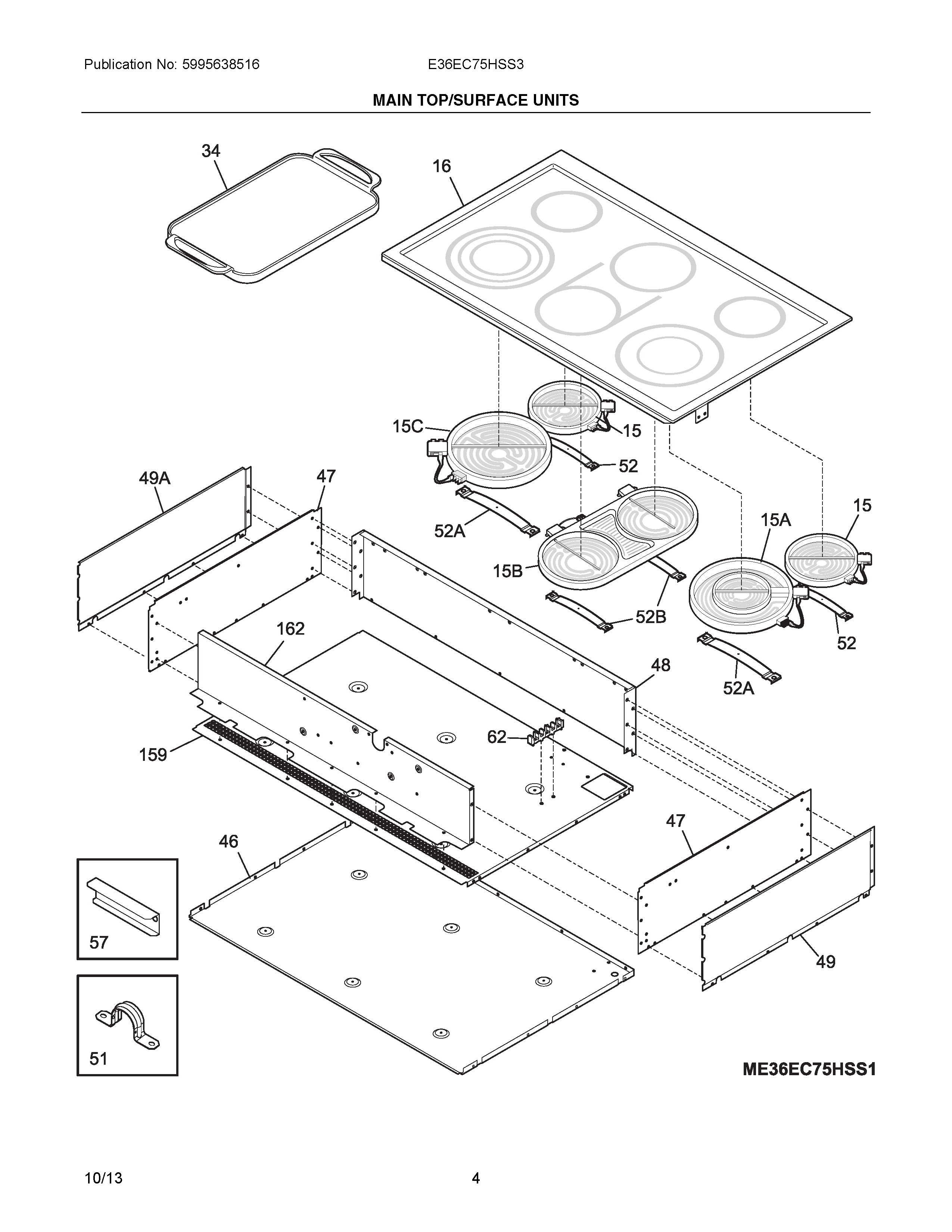

E36EC75HSS3 03 – MAIN TOP/SURFACE UNITS

E36EC75HSS3 03 – MAIN TOP/SURFACE UNITS

Written by

in

E36EC75HSS3 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304522474 Frigidaire Box & Wires Assembly
NIWCI 318406000
NI5303323140 Frigidaire Oven Screw
NIHARNESS, WIRING, MAIN
NIWCI 5304400192
NI5305511218 Frigidaire Ceramabryte C12 18O
NIA5303323139 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIWCI 318163602
15B318258203 Frigidaire Oven Element
15CELEMENT, SURFACE, TRIPLE, 800/900/1000
15A5304533520 Frigidaire Element
15318178110 Frigidaire Oven Range 6" Surface Element
16MAIN TOP ASSY, FRAME/GLASS, STAINLESS/BLACK
345304495353 Frigidaire Oven Griddle
46PANEL, BASE
47WCI 318241704
48PANEL, REAR
49APANEL, INTERIOR SIDE, LH
49PANEL, INTERIOR SIDE, RH
51318389600 Frigidaire Bracket Assembly
52B318122008 Frigidaire Oven Spring Assembly
52318122006 Frigidaire Small Element Mounting Spring
52A318122010 Frigidaire Oven Spring Assembly
57PLATE, COVER
625304409888 Frigidaire Oven Terminal Block with Hardware
159PANEL, BOTTOM
162SHIELD, HEAT
