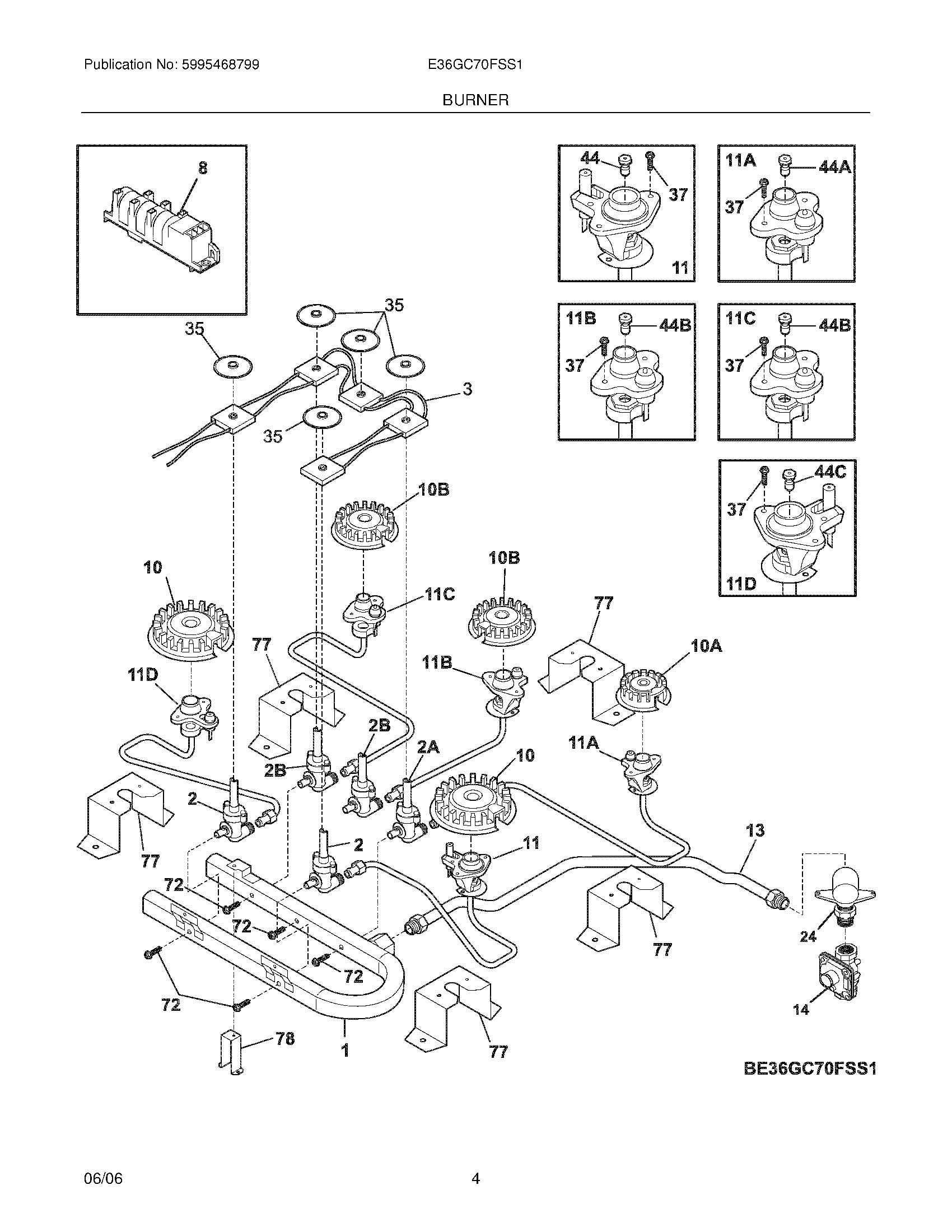

E36GC70FSS1 05 – BURNER

Products

Position	Product
NI	WCI 318199743
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	WCI 318127429
NI	5304403558 Frigidaire Oven Screw
NI	5303311174 Frigidaire Oven Screw
NI	316524400 Frigidaire Oven Screw
NI	5303307980 Frigidaire Oven Screw
1	WCI 318177207
2B	WCI 318233910
2A	318233900 Frigidaire Oven Valve
2	WCI 318233940
3	WCI 318232612
8	SPARK MODULE
10B	316212400 Frigidaire Oven Primary Burner
10	Burner,sealed ,17K
10A	WCI 316206400
11B	WCI 318221342
11	318306246 Frigidaire Igniter/Orifice Assembly
11C	WCI 318221339
11D	WCI 318306245
11A	WCI 318221343
13	WCI 318054509
14	5308007974 Frigidaire Pressure Regulator
24	WCI 318054000
35	WCI 318146301
37	316240600 Frigidaire Igniter Mounting Screw
44C	WCI 318362302
44	WCI 318362300
44A	WCI 316237903
44B	316237902 Frigidaire Orifice Top Burner
72	316215600 Frigidaire Oven Screw
77	WCI 318192606
78	WCI 318280500
