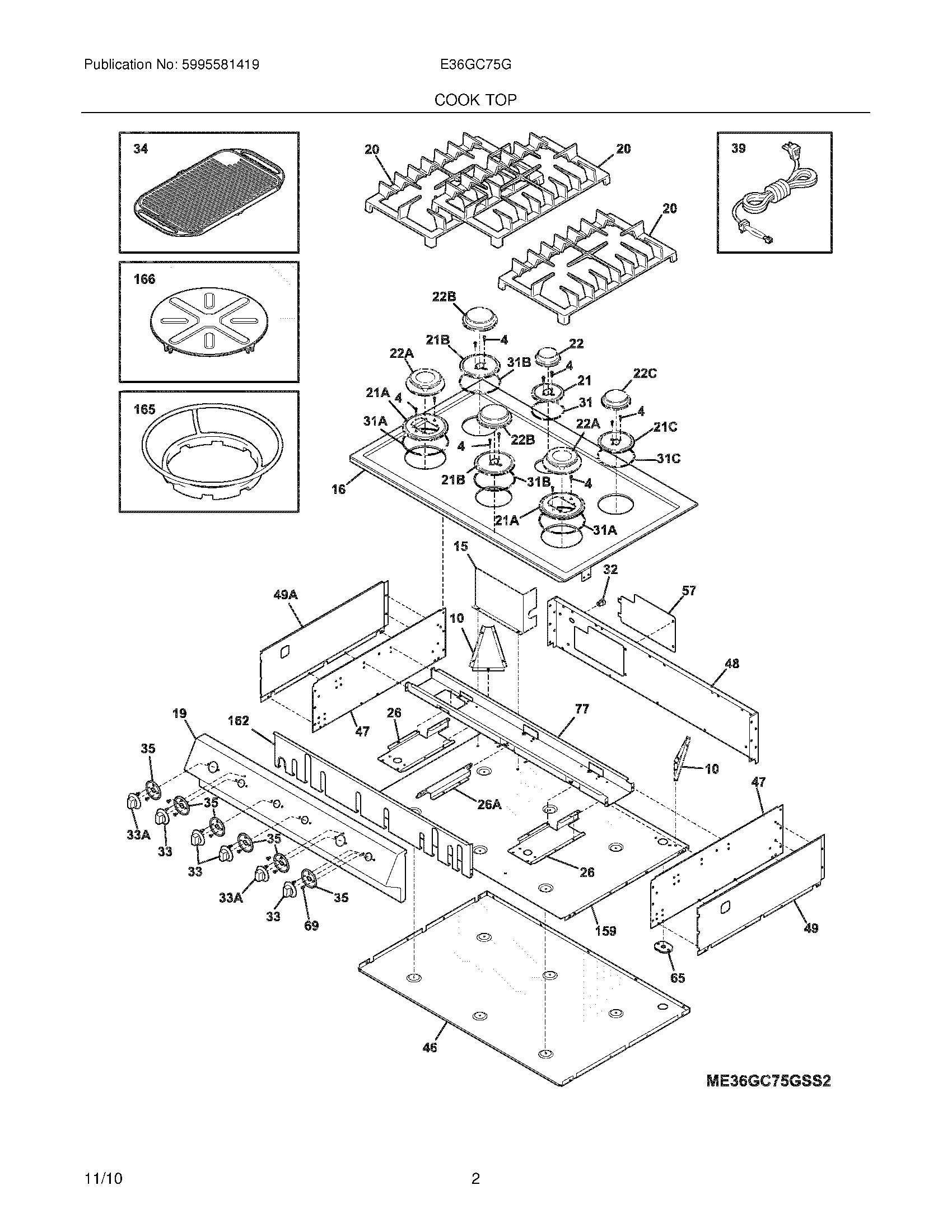

E36GC75GSS2 03 – MAIN TOP

Products

PositionProduct
NI5305511218 Frigidaire Ceramabryte C12 18O
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304403558 Frigidaire Oven Screw
NIWCI 318163602
NIWCI 316459400
NI5303323137 Frigidaire Oven Screw
4316240600 Frigidaire Igniter Mounting Screw
10WCI 318392500
15WCI 318024206
16MAIN TOP ASSY, FRAME/GLASS, STAINLESS/BLACK
19WCI 318234908
20WCI 318361402
21C318293007 Frigidaire Oven Skirt Assembly
21B318293308 Frigidaire Oven Skirt
21318293107 Frigidaire Oven Skirt
21ASkirt,18K burner ,black ,(2)
22C316548700 Frigidaire Oven Cap
22BCap-burner,black ,large
22AWCI 316511502
22316548600 Frigidaire Oven Cap
26A318363903 Frigidaire Bracket
26WCI 318363803
31A316515203 Frigidaire Oven Seal
31B316242000 Frigidaire Burner Seal
31C316242001 Frigidaire Oven Burner Seal 9.5k/12k
31316242002 Frigidaire Range Burner Seal
325304513507 Frigidaire Bushing Assembly
33A318242226 Frigidaire Oven Knob
33Knob,control ,stainless ,(4)
34WCI 318251600
35318251911 Frigidaire Oven Skirt
39WCI 318144006
46PANEL, BASE
47WCI 318241712
48PANEL, REAR
49AWCI 318241905
49WCI 318241904
57WCI 318286400
655304506478 Frigidaire Seal
695303300265 Frigidaire Oven Screw
77BRACKET, CHANNEL MTG.
159PANEL, BOTTOM
162WCI 318399700
165318254300 Frigidaire Oven Ring
166WCI 318254200
