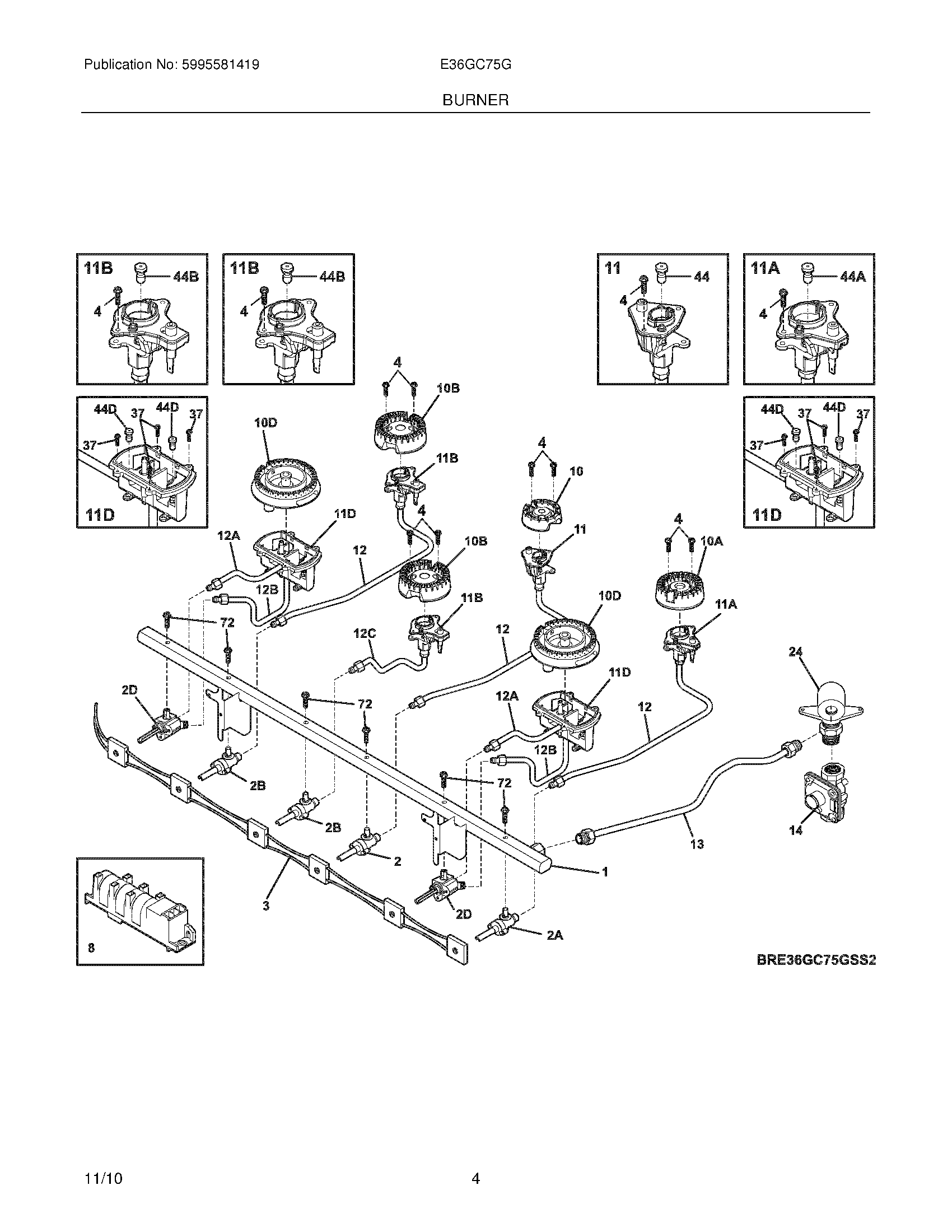

E36GC75GSS2 05 – BURNER

E36GC75GSS2 05 – BURNER

Written by

in

E36GC75GSS2 05 – BURNER

Products

PositionProduct
NIScrew,8-32 x 3/4
NIWCI 318531900
NI5303311174 Frigidaire Oven Screw
NIWCI 318127449
NIHARNESS, BURNER WIRING
1WCI 318234314
2A316520701 Frigidaire Oven Valve Assembly
2BWCI 316520703
2WCI 316520700
2D316574900 Frigidaire Oven Valve
3WCI 318232635
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10DWCI 316525401
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11DWCI 316525103
11316540800 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
12AWCI 318221367
12CTUBING, 14K, FRONT
12TUBING, 5/9.5/14K, REAR, (3)
12BWCI 318221366
13TUBE, CONNECTION, MANIFOLD
14318122705 Frigidaire Oven Regulator
24318054010 Frigidaire Oven Elbow
44DWCI 316523512
44A316527500 Frigidaire Oven Burner Orifice
44B316527511 Frigidaire Oven Orifice
44316527504 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
