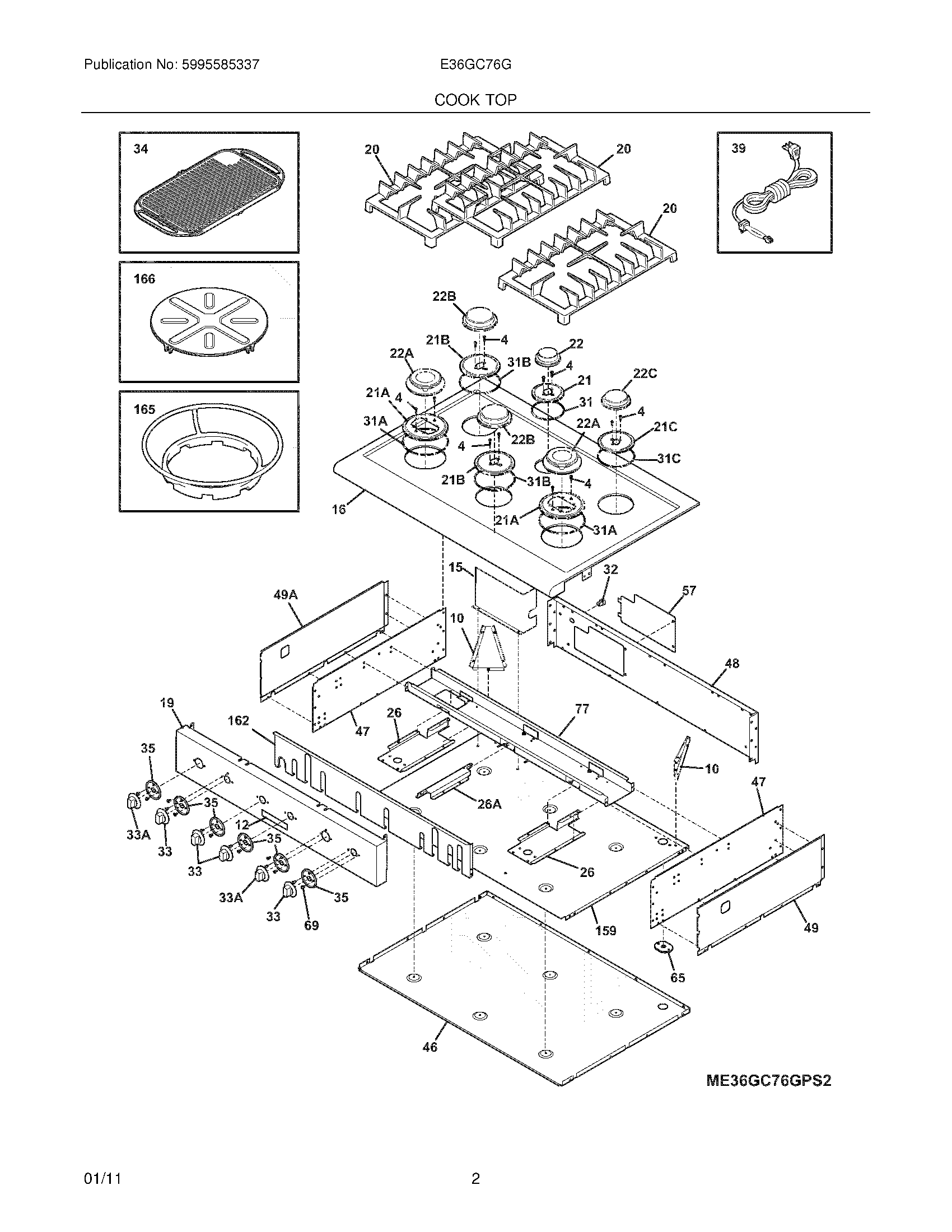

E36GC76GPS2 03 – MAIN TOP

Products

Position	Product
NI	5305511218 Frigidaire Ceramabryte C12 18O
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5304403558 Frigidaire Oven Screw
NI	WCI 318163602
NI	WCI 316459400
NI	5303323137 Frigidaire Oven Screw
4	316240600 Frigidaire Igniter Mounting Screw
10	WCI 318392500
12	241603101 Frigidaire Refrigerator Label-Nameplate
15	WCI 318024206
16	318185238 Frigidaire Assembly Main Top
19	WCI 318285748
20	WCI 318361402
21C	318293007 Frigidaire Oven Skirt Assembly
21	318293107 Frigidaire Oven Skirt
21A	Skirt,18K burner ,black ,(2)
21B	318293308 Frigidaire Oven Skirt
22C	316548700 Frigidaire Oven Cap
22B	Cap-burner,black ,large
22A	WCI 316511502
22	316548600 Frigidaire Oven Cap
26A	318363903 Frigidaire Bracket
26	WCI 318363803
31A	316515203 Frigidaire Oven Seal
31C	316242001 Frigidaire Oven Burner Seal 9.5k/12k
31B	316242000 Frigidaire Burner Seal
31	316242002 Frigidaire Range Burner Seal
32	5304513507 Frigidaire Bushing Assembly
33	Knob,control ,stainless ,(4)
33A	318242226 Frigidaire Oven Knob
34	WCI 318251600
35	318251911 Frigidaire Oven Skirt
39	WCI 318144006
46	PANEL, BASE
47	WCI 318241712
48	PANEL, REAR
49A	WCI 318241905
49	WCI 318241904
57	WCI 318286400
65	5304506478 Frigidaire Seal
69	5303300265 Frigidaire Oven Screw
77	BRACKET, CHANNEL MTG.
159	PANEL, BOTTOM
162	WCI 318399700
165	318254300 Frigidaire Oven Ring
166	WCI 318254200
