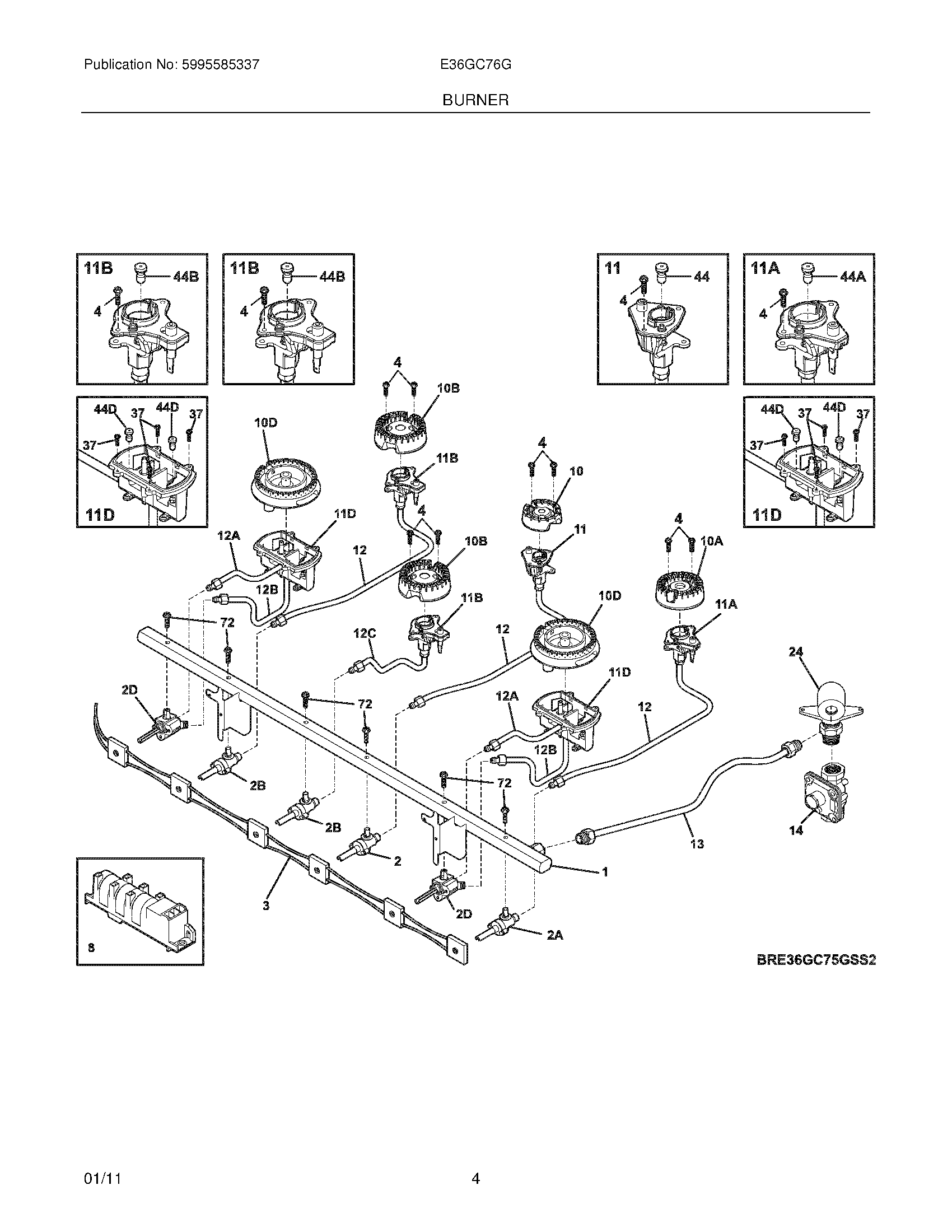

E36GC76GPS2 05 – BURNER

E36GC76GPS2 05 – BURNER

Written by

in

E36GC76GPS2 05 – BURNER

Products

PositionProduct
NIWCI 318127450
NIScrew,8-32 x 3/4
NIHARNESS, BURNER WIRING
NIWCI 318531900
NI5303311174 Frigidaire Oven Screw
1WCI 318234314
2D316574900 Frigidaire Oven Valve
2BWCI 316520703
2A316520701 Frigidaire Oven Valve Assembly
2WCI 316520700
3WCI 318232635
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10DWCI 316525401
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
11B316543204 Frigidaire Igniter/Orifice Assembly
11DWCI 316525103
11316540800 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
12BWCI 318221381
12AWCI 318221382
12TUBING, 5/9.5/14K, REAR, (3)
12CTUBING, 14K, FRONT
13WCI 318054513
14318122705 Frigidaire Oven Regulator
24318054010 Frigidaire Oven Elbow
44316527504 Frigidaire Oven Orifice
44B316527511 Frigidaire Oven Orifice
44DWCI 316523512
44A316527500 Frigidaire Oven Burner Orifice
72316215600 Frigidaire Oven Screw
