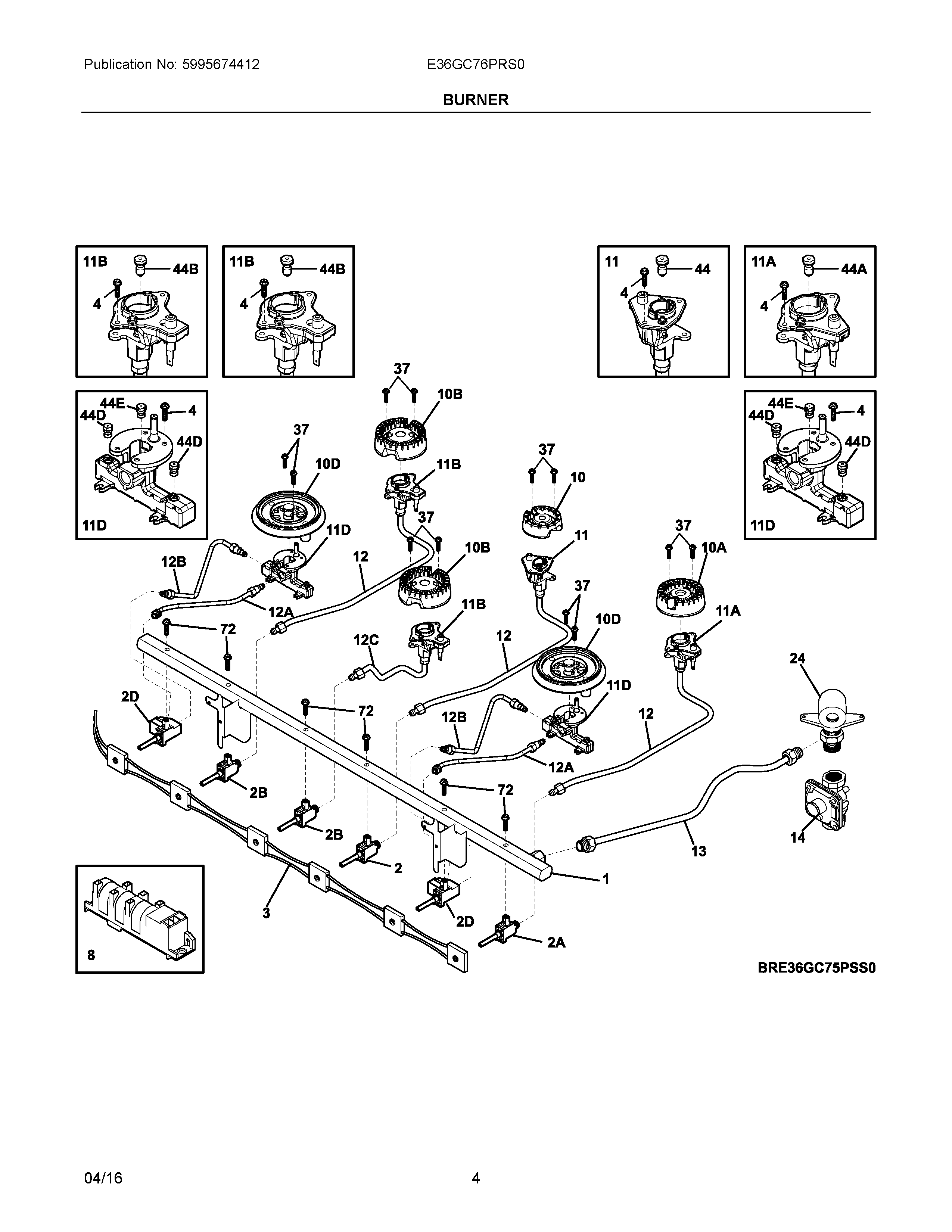

E36GC76PRS0 03 – BURNER

E36GC76PRS0 03 – BURNER

Written by

in

E36GC76PRS0 03 – BURNER

Products

PositionProduct
NIWCI 808695304
NID316566901 Frigidaire Oven Sleeve
NIHARNESS, BURNER WIRING
NIBSCREW, (4)
NIA202855101 Frigidaire Holder
1WCI 318234314
2BWCI 316536008
2A316536006 Frigidaire Oven Valve
2316536002 Frigidaire Valve-Top Burner
2DWCI 316272302
3WCI 305595105
8SPARK MODULE
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10D5304519952 Frigidaire Burner Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11DA316440105 Frigidaire Igniter Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12TUBING, 5/9.5/14K, REAR, (3)
12CTUBING, 14K, FRONT
12BWCI 305594800
12AWCI 305594700
13305596900 Frigidaire Tube
14318122705 Frigidaire Oven Regulator
24318054010 Frigidaire Oven Elbow
37316240600 Frigidaire Igniter Mounting Screw
44D316527502 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44B316527511 Frigidaire Oven Orifice
44316527504 Frigidaire Oven Orifice
44E316527520 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
