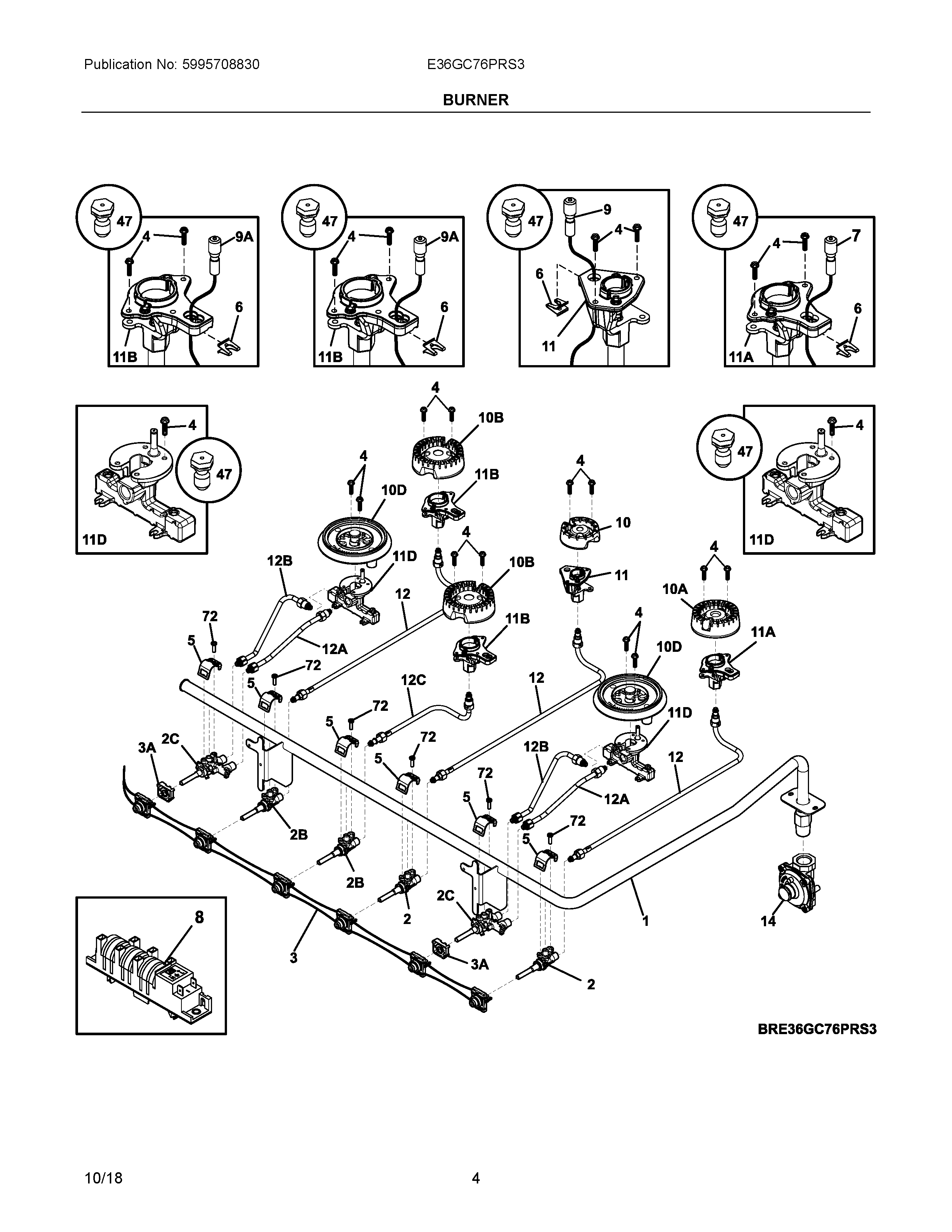

E36GC76PRS3 03 – BURNER

E36GC76PRS3 03 – BURNER

Written by

in

E36GC76PRS3 03 – BURNER

Products

PositionProduct
NIDAWIRING, IGNITOR, G5-600MM, TWIN BURNER, W/SLEEVE
NIDSLEEVE, SILICONE
NIA202855101 Frigidaire Holder
NIBSCREW, (4)
NIC305452800 Frigidaire Screw
NIACA
NI305338602 Frigidaire Screw
NIDBWIRING, IGNITOR, G5-1100MM, TWIN BURNER, W/SLE
NI803910601 Frigidaire Screw
1MANIFOLD PIPE
2B5304508464 Frigidaire Oven Valve
2C5304508465 Frigidaire Oven Valve
25304508463 Frigidaire Oven Valve
3A5304508439 Frigidaire Oven Adapter Assembly
3305595116 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
6SPRING CLIP IGNITOR
75304516453 Frigidaire Igniter
8SPARK MODULE
95304516454 Frigidaire Igniter
9A5304516460 Frigidaire Igniter
10D5304501023 Frigidaire Burner Assembly
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
11A5304516450 Frigidaire Oven Holder
11B5304516452 Frigidaire Oven Holder
115304516449 Frigidaire Oven Holder
11DC5304529110 Frigidaire Igniter/Orifice Assembly
12TUBING, 5/9.5/14K, REAR, (3)
12BTUBE, DUAL BURNER, MAIN
12ATUBE, DUAL BURNER, SECONDARY
12CTUBING, 14K, FRONT
145304519943 Frigidaire Regulator
47LP KIT, GAS CONVERSION
725304508436 Frigidaire Oven Screw
