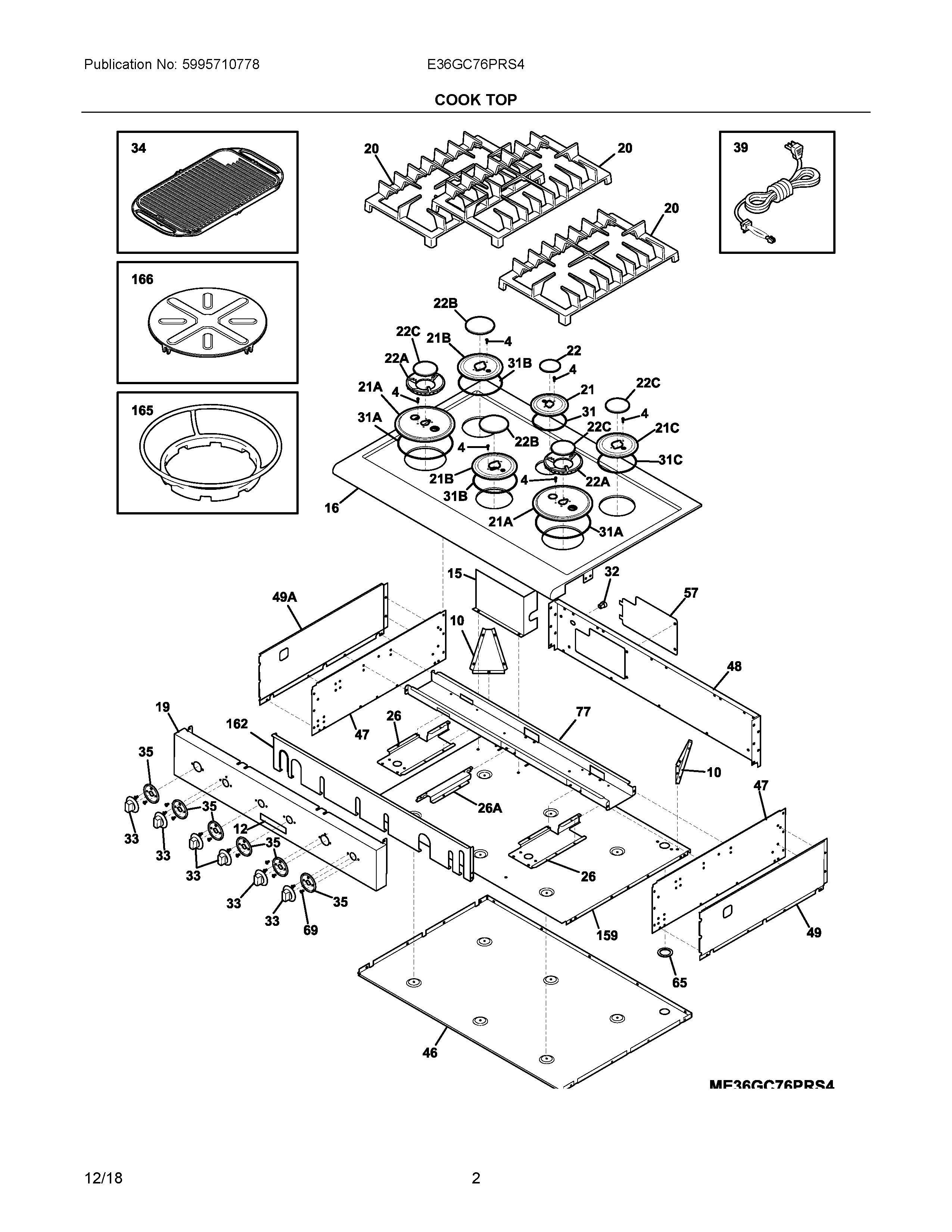

E36GC76PRS4 02 – COOK TOP

E36GC76PRS4 02 – COOK TOP

Written by

in

E36GC76PRS4 02 – COOK TOP

Products

PositionProduct
NI5305511218 Frigidaire Ceramabryte C12 18O
NI305338602 Frigidaire Screw
NIA305452800 Frigidaire Screw
NIWCI 316459400
NIWCI 318163602
NIA305322203 Frigidaire Seal
4316240600 Frigidaire Igniter Mounting Screw
10WCI 318392500
12241603101 Frigidaire Refrigerator Label-Nameplate
15WCI 318024206
16318185238 Frigidaire Assembly Main Top
19PANEL, CONTROL, STAINLESS
20809103801 Frigidaire Oven Grate Assembly
21305596407 Frigidaire Skirt
21ASKIRT, TWIN BURNER, BLACK, G5
21C305596408 Frigidaire Skirt
21B305596410 Frigidaire 14K Matt Black Burner Skirt
22CAP
22A5304520332 Frigidaire Oven Cap
22B5304508443 Frigidaire Oven Surface Burner Cap
22C5304508442 Frigidaire Oven Surface Burner Cap
26ABRACKET, CHANNEL MTG.
26BRACKET, CHANNEL MTG., TWIN BURNER, (2)
31B316242000 Frigidaire Burner Seal
31316242002 Frigidaire Range Burner Seal
31C316242001 Frigidaire Oven Burner Seal 9.5k/12k
31A316515203 Frigidaire Oven Seal
325304513507 Frigidaire Bushing Assembly
33318242275 Frigidaire Oven Burner Knob
34WCI 318251600
35318251911 Frigidaire Oven Skirt
39305574902 Frigidaire Power Cord
46PANEL, BASE
47WCI 318241712
48PANEL, REAR
49AWCI 318241905
49WCI 318241904
57WCI 318286400
655304506478 Frigidaire Seal
69803910601 Frigidaire Screw
77BRACKET, BURNER SUPPORT
159PANEL, BOTTOM
162DEFLECTOR, HEAT
165318254300 Frigidaire Oven Ring
166SIMMER PLATE
