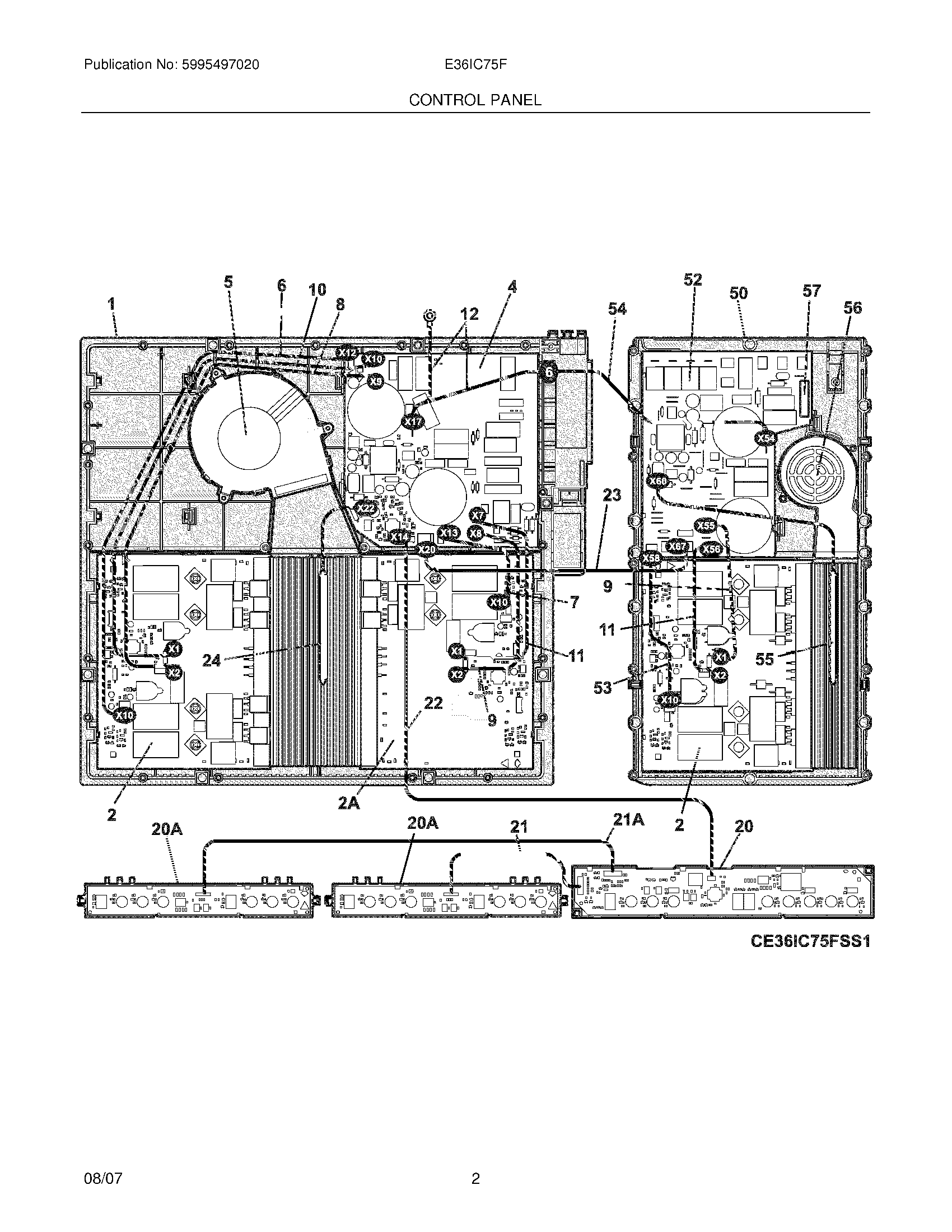

E36IC75FSS3 03 – CONTROL PANELadmin2025-04-26T08:50:59+00:00E36IC75FSS3 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| NI | WCI 318052587 |
| NI | Frame,display ,single ,(5) |
| NI | Frame,display ,double |
| 1 | 318329612 Frigidaire Induction Housing Assembly |
| 2A | 318347100 Frigidaire Oven Generator |
| 4 | 318347000 Frigidaire Filter |
| 5 | Cooling Fan Assembly,large |
| 6 | Communication Cable,generator ,18`` ,to filter,X10/X12 |
| 7 | Communication Cable,generator ,6`` ,to filter,X10/X13 |
| 8 | WCI 318052581 |
| 9 | WCI 318052580 |
| 10 | WCI 318052582 |
| 11 | WCI 318052579 |
| 12 | WCI 318052593 |
| 20A | WCI 318330713 |
| 20 | WCI 318330823 |
| 21 | Interface Cable,side control ,to center |
| 21A | WCI 318083046 |
| 22 | WCI 318083062 |
| 23 | WCI 318083048 |
| 24 | Thermal Cut-Out,short |
| 50 | WCI 318329620 |
| 52 | WCI 318347010 |
| 53 | WCI 318348002 |
| 54 | Groung Wire,X54/6 |
| 55 | WCI 318349910 |
| 56 | WCI 318346910 |
| 57 | 318373300 Frigidaire Oven Fuse |
