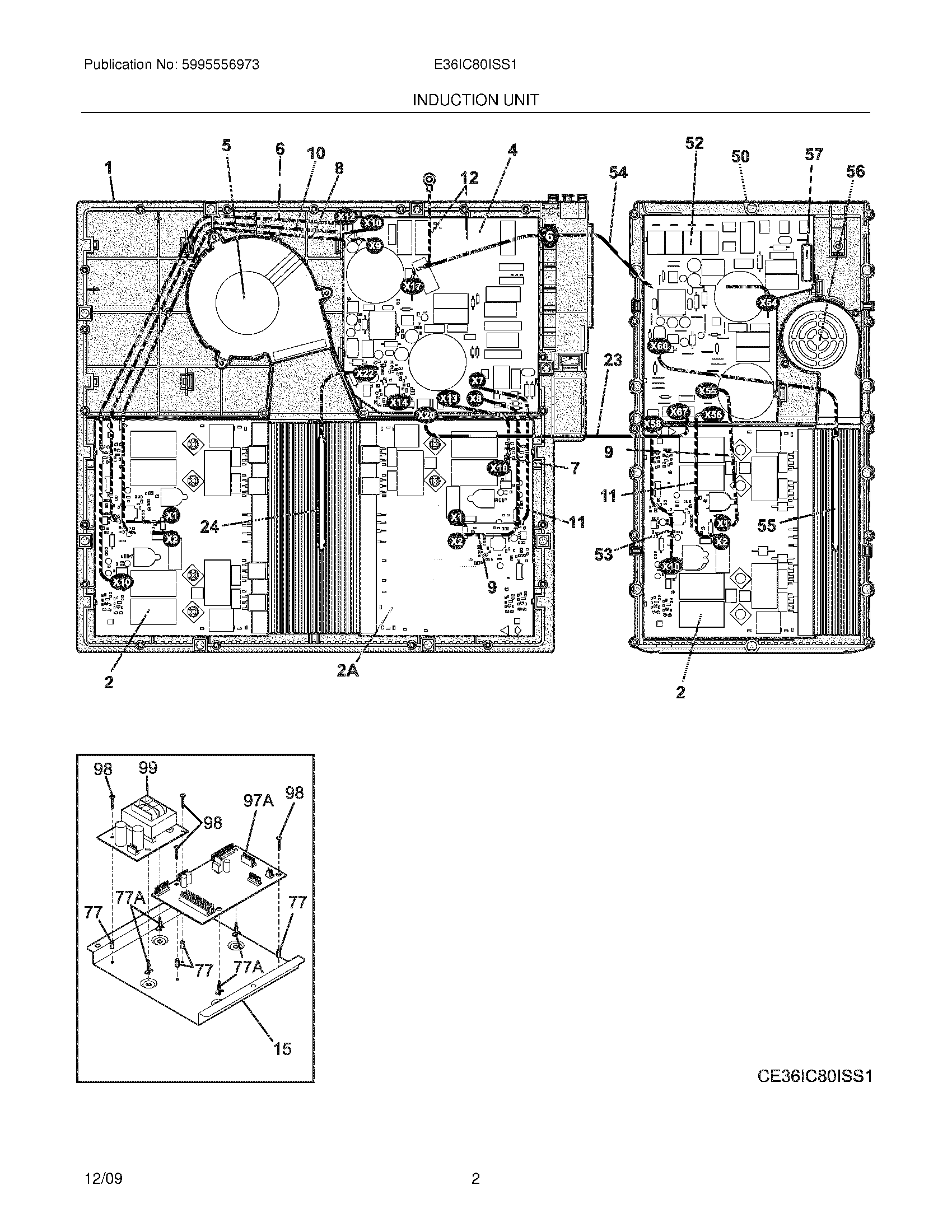

E36IC80ISS1 03 – INDUCTION UNITadmin2025-04-26T08:51:12+00:00E36IC80ISS1 03 – INDUCTION UNIT
Products
| Position | Product |
|---|
| NI | Screw,7-19 x 1/2`` ,(11) ,housing ring |
| NI | WCI 318341200 |
| NI | SCREW, 8 X 5/8, SPARK MODULE |
| NI | WCI 318402356 |
| NI | 5303323140 Frigidaire Oven Screw |
| NI | NUT, KEPS, 8-32, (2) |
| 1 | WCI 318329613 |
| 2A | WCI 318347111 |
| 2 | WCI 318347103 |
| 4 | 318347000 Frigidaire Filter |
| 5 | Cooling Fan Assembly,large |
| 6 | Communication Cable,generator ,18`` ,to filter,X10/X12 |
| 7 | Communication Cable,generator ,6`` ,to filter,X10/X13 |
| 8 | WCI 318052581 |
| 9 | WCI 318052580 |
| 10 | WCI 318052582 |
| 11 | WCI 318052579 |
| 12 | WCI 318532141 |
| 15 | WCI 318537301 |
| 23 | WCI 318402337 |
| 24 | Thermal Cut-Out,short |
| 50 | WCI 318329621 |
| 52 | WCI 318347010 |
| 53 | WCI 318348002 |
| 54 | WCI 318052596 |
| 55 | WCI 318349910 |
| 56 | WCI 318346910 |
| 57 | 318373300 Frigidaire Oven Fuse |
| 77A | 316114100 Frigidaire Oven Spacer |
| 77 | 316247900 Frigidaire Oven Spacer |
| 97A | WCI 316442068 |
| 98 | 5304401490 Frigidaire Oven Screw |
| 99 | 316435703 Frigidaire Oven Board |
