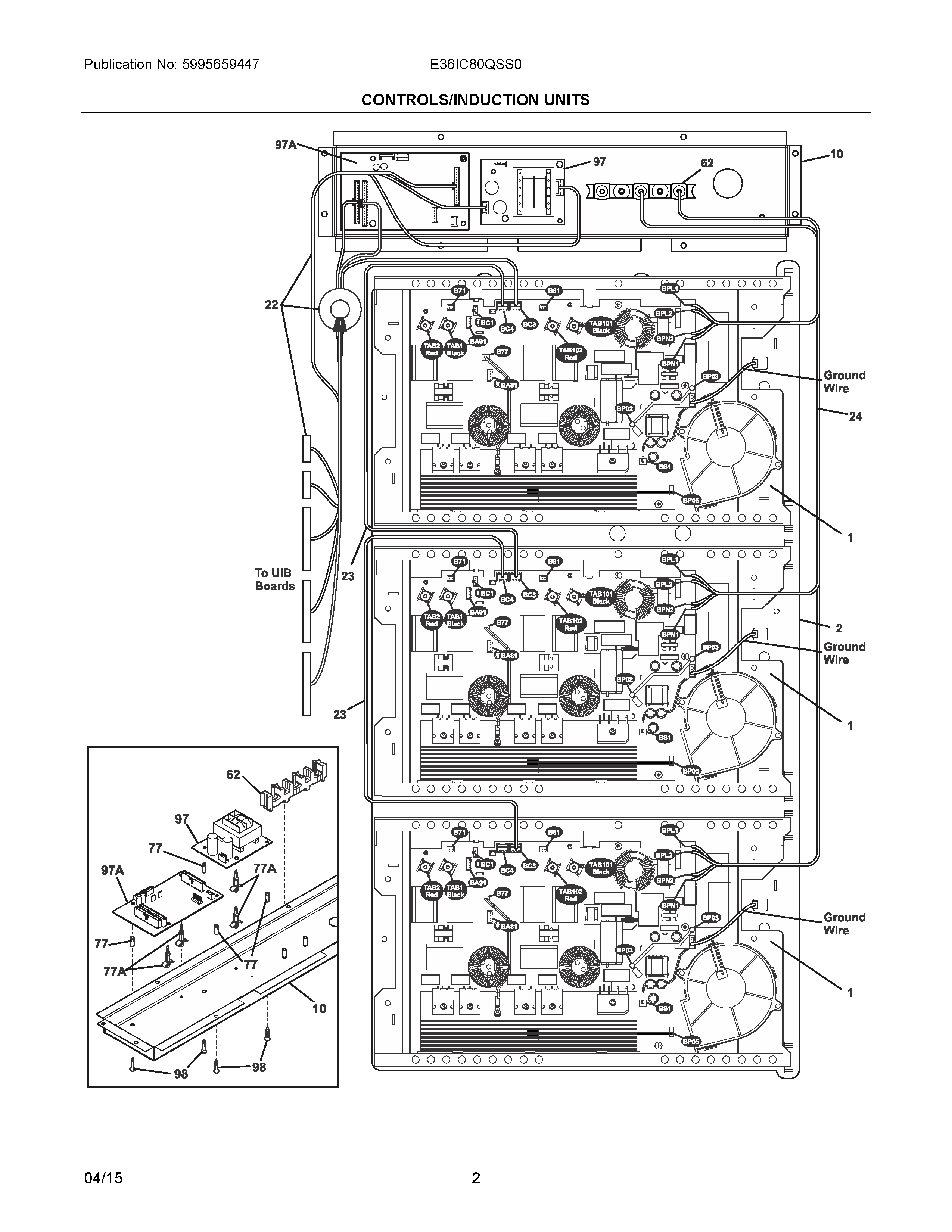

E36IC80QSS0 02 – CONTROLS/INDUCTION UNITS

Products

PositionProduct
NI5304522476 Frigidaire Box & Wires Assy
NICSCREW, 6-32 X 3/8", (4)
NIWCI 5304400192
NI5304462994 Frigidaire Oven Screw
NIB305452800 Frigidaire Screw
NI318578302 Frigidaire Wire
NIANUT, TERMINAL BLOCK, (2)
1903160-9010 Frigidaire Generator and Harness
2PLATE, GENERATOR MTG.
10BOX, POWER SUPPLY
22HARNESS, WIRING, COMMUNICATION, W/MAGNETIC CORE
23318578332 Frigidaire Oven Harness
24WCI 5304499628
625304409888 Frigidaire Oven Terminal Block with Hardware
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
97A316578338 Frigidaire Oven Board
97316435703 Frigidaire Oven Board
98SCREW, M4
