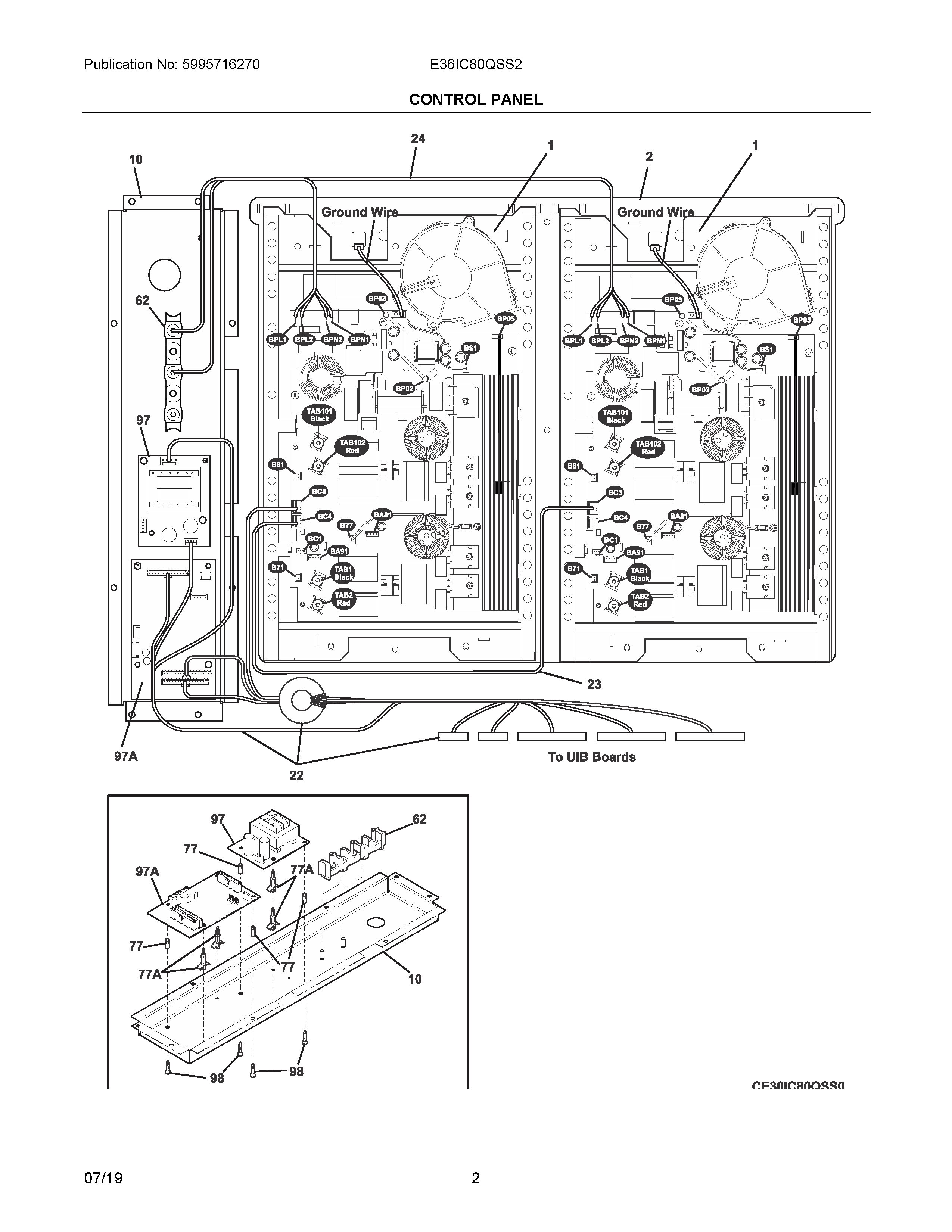

E36IC80QSS2 02 – CONTROL PANEL

Products

Position	Product
NIC	SCREW, 6-32 X 3/8", (4)
NI	5304522476 Frigidaire Box & Wires Assy
NI	WCI 5304400192
NI	5304462994 Frigidaire Oven Screw
NIB	305452800 Frigidaire Screw
NI	318578302 Frigidaire Wire
NIA	NUT, TERMINAL BLOCK, (2)
1	903160-9010 Frigidaire Generator and Harness
2	PLATE, GENERATOR MTG.
10	BOX, POWER SUPPLY
22	HARNESS, WIRING, COMMUNICATION, W/MAGNETIC CORE
23	318578332 Frigidaire Oven Harness
24	WCI 5304522475
62	5304409888 Frigidaire Oven Terminal Block with Hardware
77	316247900 Frigidaire Oven Spacer
77A	316114100 Frigidaire Oven Spacer
97A	316578338 Frigidaire Oven Board
97	316435703 Frigidaire Oven Board
98	SCREW, M4
