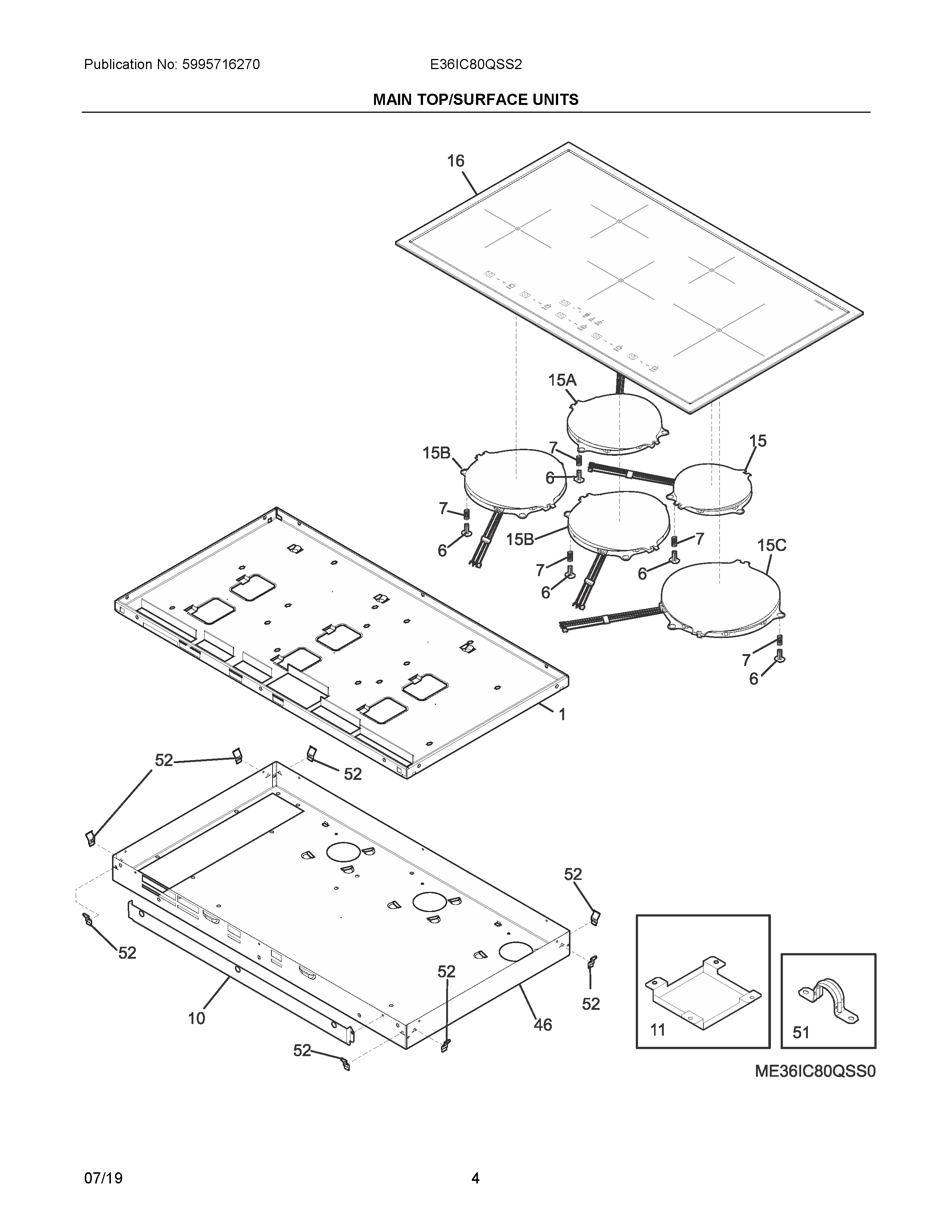

E36IC80QSS2 03 – MAIN TOP/SURFACE UNITS

E36IC80QSS2 03 – MAIN TOP/SURFACE UNITS

Written by

in

E36IC80QSS2 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NI5304462994 Frigidaire Oven Screw
NIA73218-3010 Frigidaire Foam Tape
NIA5304424462 Frigidaire Foam Tape
1BOX, INNER
6318405000 Frigidaire Oven Pin
7318534300 Frigidaire Spring
10DEFLECTOR, OUTER
11DEFLECTOR, AIR
15B318329243 Frigidaire Oven Heating Element
15A318329242 Frigidaire Oven Element
15318329241 Frigidaire Oven Element
15C318329246 Frigidaire Oven Element
16305638949 Frigidaire Oven Maintop
46BOX, OUTER
51318389600 Frigidaire Bracket Assembly
52387174602 Frigidaire Oven Bracket
