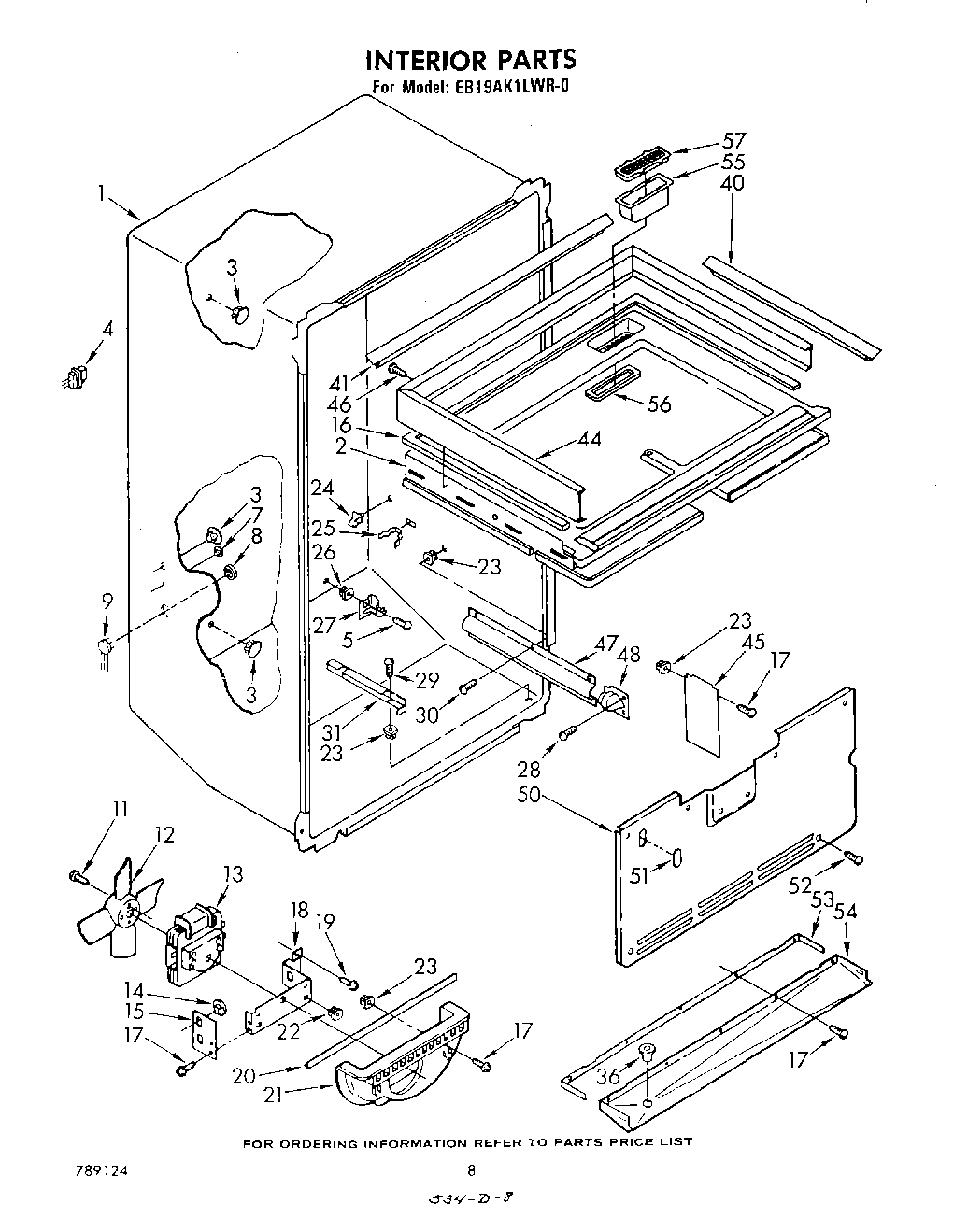

EB19AK1LWR0 05 – INTERIOR

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Separator, Compartment
3	Hole, Plug
4	Liner Wiring (Defrost Timer)
5	SCREW
7	Hole, Plug
8	Receptacle Cap
9	Wiring, Ice Maker
11	WP487887 Whirlpool Refrigerator Screw
12	Blade, Fan
13	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
14	Grommet (3)
15	Fan, Bracket Double
16	Gasket, Sealing
18	Bracket, Fan Mounting (Single)
19	WP489069 Whirlpool Compactor Screw
20	Gasket, Sealing
21	Scroll Fan
22	Screw Grommet
23	Grommet
24	Stud, Support (2)
25	Speed Clip, Light Lens (3)
26	Grommet, Screw (2)
27	Support, Evaporator
29	W11693756 Whirlpool Screw Assembly
30	WP488729 Whirlpool Refrigerator Door Screw
31	Slide, Basket (R.S)
31	Slide, Basket (Left Side)
36	Fitting, Drain Pan
40	Gasket, Side (2)
41	Gasket, Rear
44	Track, Compartment
45	Baffle, Air Evaporator
46	W11624204 Whirlpool Screw
47	Cover, Tube
48	Cover, Tub Entry
50	Cover, Evaporator
51	Hole Plug, Evaporator
53	Gasket, Drain Pan
54	Pan, Drain (Also Includes Illus. 36)
55	Insert, Air Return
56	Gasket
57	Grid, Insert
