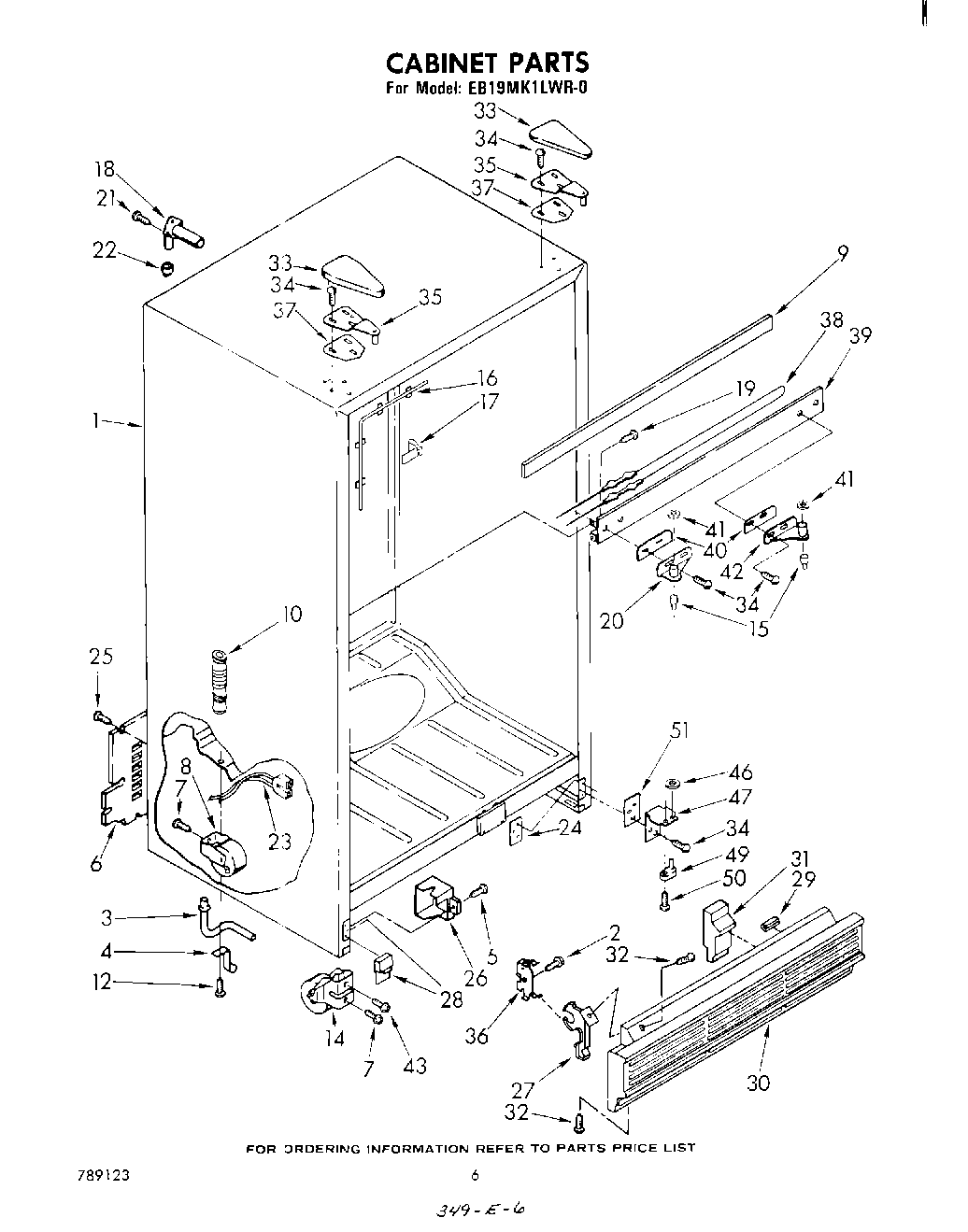

EB19MK1LWR0 04 – CABINET

EB19MK1LWR0 04 – CABINET

Written by

in

EB19MK1LWR0 04 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11624204 Whirlpool Screw
3Extension, Drain Fitting
4Cup, Drain Extension
5WP488729 Whirlpool Refrigerator Door Screw
6WPL 850459
7Screw, 1/4-28 x 1/2 (2)
8WPW10250570 Whirlpool Refrigerator Cabinet Roller
9Seal Strip
10Drain Fitting
12Screw, 8-32 x 1/2
14Roller, Front
15Pin, Hinge
16WPL 936075
17WPL 935663
18WP2196157 Whirlpool Fill Tube
19Screw (Repair)
19WP965173 Whirlpool Dishwasher Screw
20Hinge, Center (L.H.)
21WP98165 Whirlpool Screw
22WP487996 Whirlpool Refrigerator Cap Tube
23WPL 548734
24Tap Plate
26WPL 549947
27WP944224 Whirlpool Refrigerator Support
28Corner, Filler (
28Filler, Grille (Platinum)
28WPL 989928
28Filler, Grille (Toast)
28WPL 989931
28WPL 989930
28WPL 989929
29Bumper, Grille
30Exterior, Grille (Toast)
30Exterior, Grille (Coffee)
30Exterior, Grille (Golden Harvest)
30Exterior Grille (New Avocado)
30Exterior, Grille (Almond)
30Exterior, Grille (Platinum)
30Exterior, Grille (White)
31WPL 836372
32WPL 489085
33Hinge, Cover (Coffee)
33Hinge Cover (Golden Harvest)
33Hinge Cover (New Avocado)
33Hinge Cover (Toast)
331119787 Whirlpool Refrigerator Hinge Cover
34Screw (Repair)
34WP999367 Whirlpool Refrigerator Screw
35Hinge, Top (2)
36WPL 989068
37WPL 836151
38Heater, Mullion
39Center Rail (Golden Harvest)
39WPL 1100303
39Center Rail (Coffee)
39WPL 1100304
39Center Rail (New Avocado)
39Center Rail (White)
39Center Rail (Almond)
40Shim, Hinge Center
41WP488296 Whirlpool Washer Refrigerator
42WPL 992544
43Screw, 5/16-24 x 1
46WP487802 Whirlpool Refrigerator Washer
47Hinge, Bottom
49Hinge Pin, Bottom
50Screw 10-32 x 5/16
51Shim, Bottom Hinge
