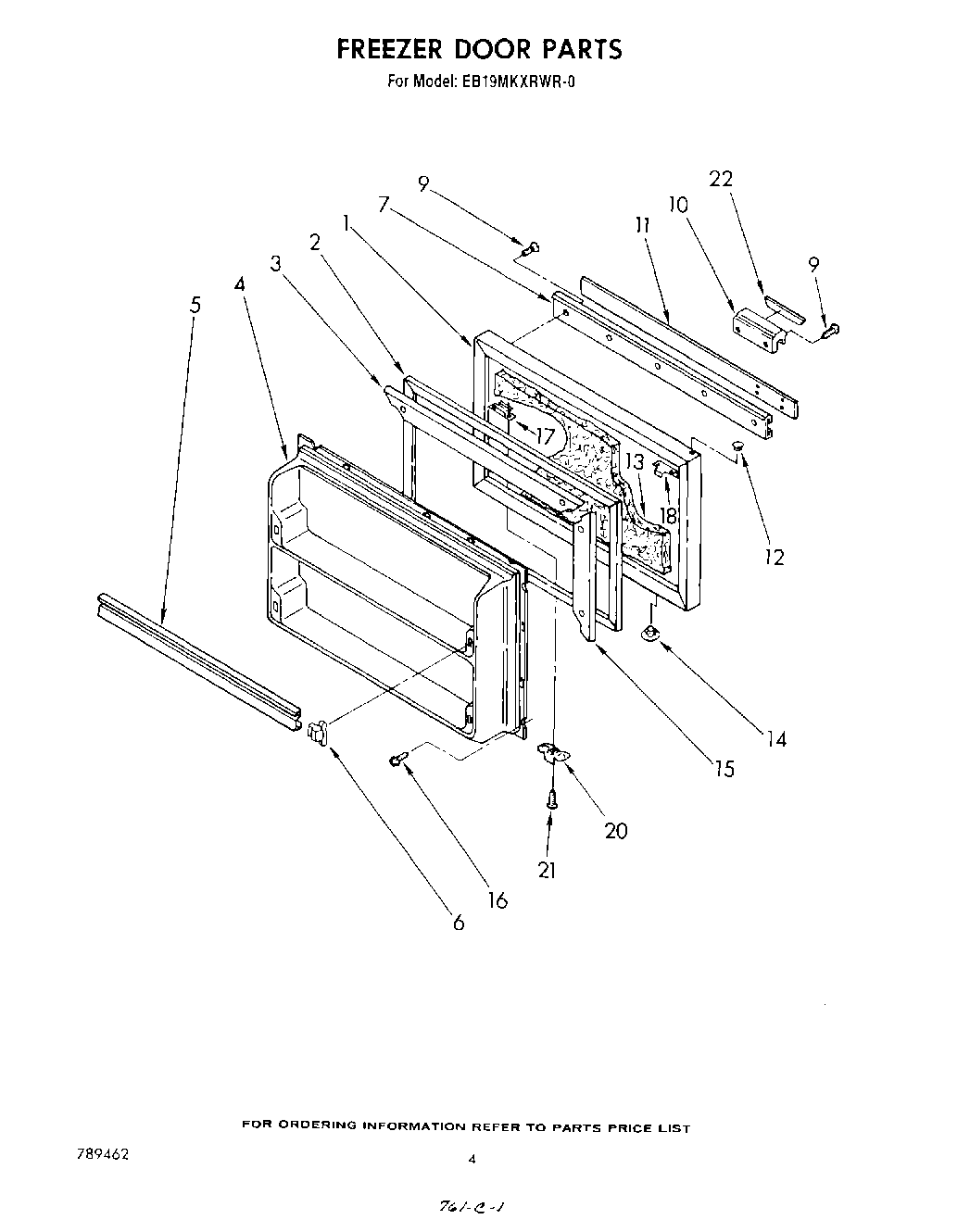

EB19MKXRWR0 03 – FREEZER DOOR
Written by
in
EB19MKXRWR0 03 – FREEZER DOOR
Products
Position
Product
1
Door, Freezer (Also Order Item 13) (Platinum)
1
Door, Freezer (Also Order Item 13) (Toast)
1
Door, Freezer (Also Order Item 13) (White)
1
Door, Freezer (Also Order Item 13) (Almond)
1
Door, Freezer (Also Order Item 13) (Golden Harvest)
2
Gasket, Freezer Door
3
Retainer, Gasket Top
4
Panel, Interior Door
5
Trim, Door Shelf (2)
6
WP839904 Whirlpool Refrigerator Endcap Trim
7
Trim, Handle Door
9
Screw, 8.18 x 3/4
10
Handle, Door
11
Insert, Trim Handle (Almond)
11
Insert, Trim Handle (Golden Harvest)
11
Insert, Trim Handle (White)
11
Insert, Trim Handle (Platinum)
11
Insert, Trim Handle (Toast)
12
Hole Plug (Platinum)
12
WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
12
Hole Plug (Almond)
12
Hole Plug (Toast)
13
WPL 876029
14
Hole Plug (2) (Almond)
14
Hole Plug (2)
14
Hole Plug (2) (Toast)
14
Hole Plug (2) (Golden Harvest)
14
Hole Plug (2) (Platinum)
15
WPL 986015
16
SCREW
16
WP489069 Whirlpool Compactor Screw
17
W10833053 Whirlpool Refrigerator Plate
18
WP939101 Whirlpool Refrigerator Plate
20
Bracket, Door Stop
21
Screw (Repair)
21
WP488921 Whirlpool Refrigerator Screw
22
Insert, Trim Handle (White)
22
Insert, Trim H
22
WPL 1109067
22
WPL 1109068
22
WPL 1109069
←
