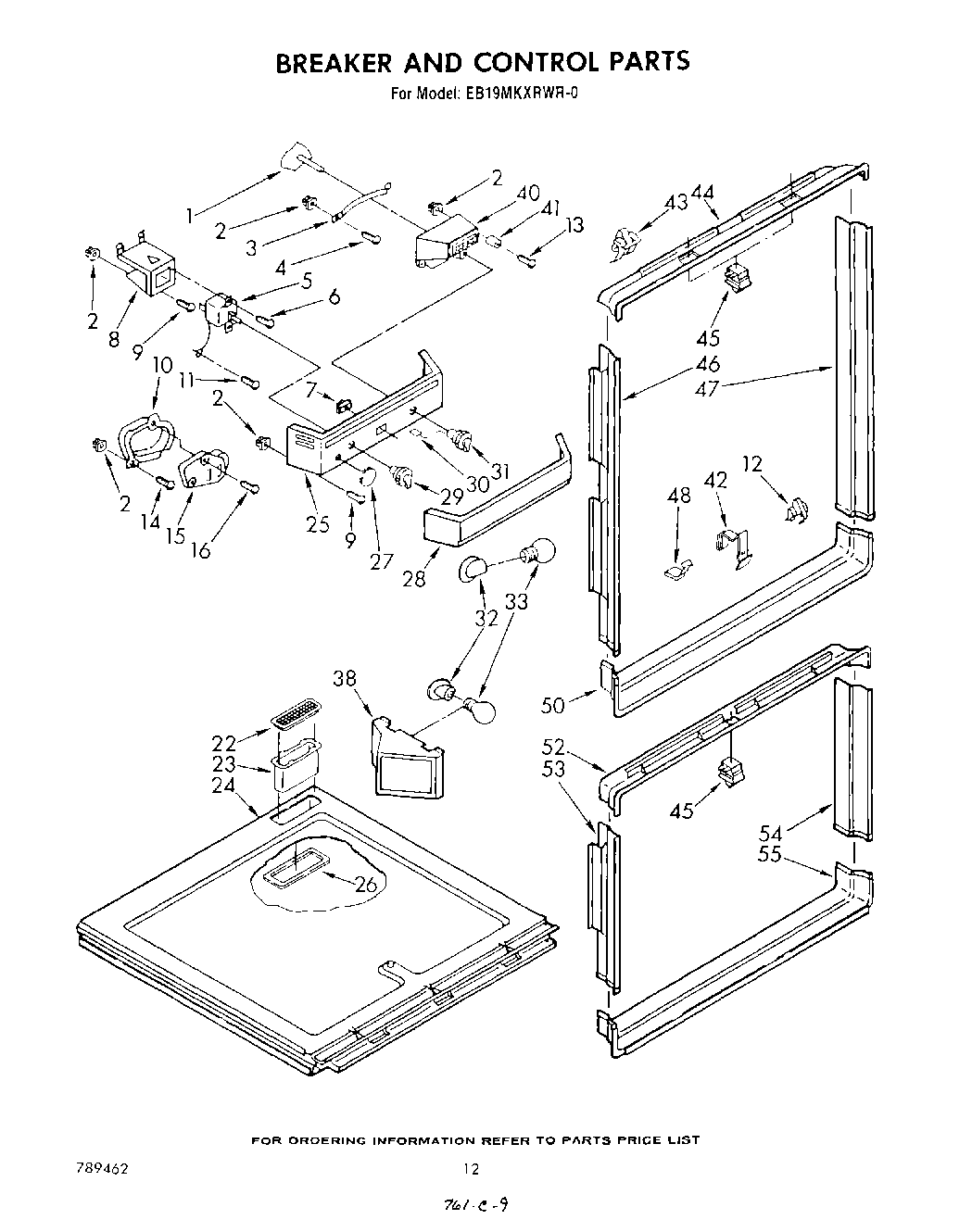

EB19MKXRWR0 07 – BREAKER AND CONTROL

Products

Position	Product
1	Damper, Air
2	Grommet
3	Retrainer, Air Dampener
4	Screw, 8 x 3/8
5	WP4317800 Whirlpool Refrigerator Thermostat
6	WP965173 Whirlpool Dishwasher Screw
7	WP938213 Whirlpool Refrigerator Power Switch
8	Bracket, Thermostat
9	W11624204 Whirlpool Screw
10	Timer, Container
11	WP489128 Whirlpool Refrigerator Screw
12	Clip, Breaker Retainer (2)
13	Screw, 8 x 1-1/4 (3)
14	WP489069 Whirlpool Compactor Screw
15	Timer, Defrost
16	Screw, 8 x 3/8 (2)
22	Grid, Insert
23	Insert, Air Return
24	Separator, Compartment
25	Panel, Control
26	Gasket
27	Hole Plug (2)
28	Light Lens
29	Knob, Temperature Control
30	Knob, Retainer
31	Control Knob
32	4387478 Whirlpool Refrigerator Light Socket
33	RANGE ONLY 40W 120V APPL BULB
38	Shield, Light (Freezer Compartment)
40	Diffuser Assembly, Air
41	836667 Whirlpool Refrigerator Spacer
42	Breaker, Retainer Clip (3)
43	Breaker, Clip
44	Breaker, Refrigerator Trim (Top)
45	W11384469 Whirlpool Door Switch
46	Breaker, Refrigerator Trim (L.S.)
47	Breaker, Refrigerator Trim (R.S.)
48	Breaker, Trim Clip
50	Breaker, Mullion Trim (Refrigerator)
52	Breaker, Mullion Bottom
53	Breaker, Freezer Trim (L.S.)
54	Breaker, Freezer Trim (R.S.)
55	Breaker, Bottom
