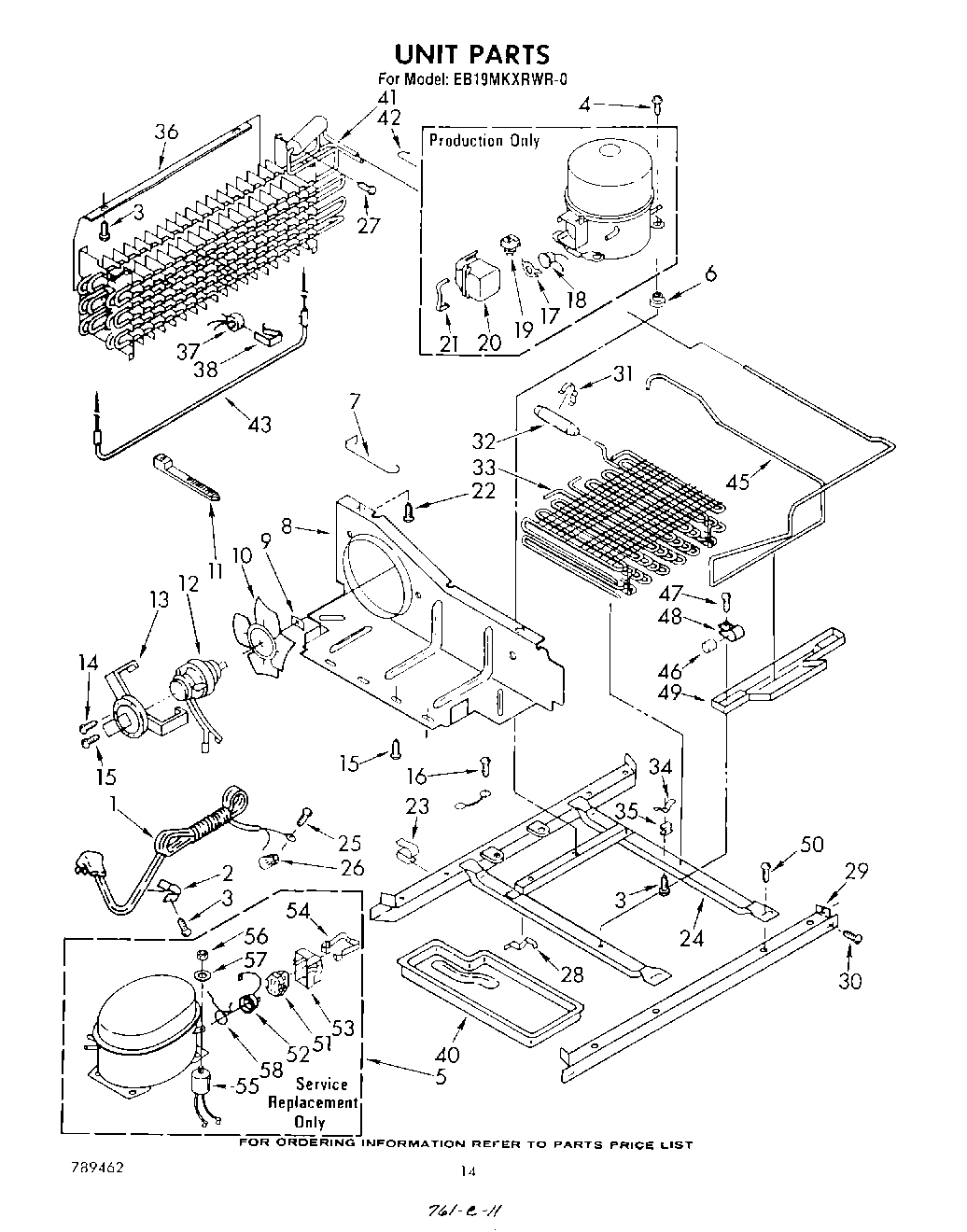

EB19MKXRWR0 08 – UNIT , LITERATURE AND OPTIONAL

EB19MKXRWR0 08 – UNIT , LITERATURE AND OPTIONAL

Written by

in

EB19MKXRWR0 08 – UNIT , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
WPL LIT789462
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
350942 Whirlpool Spray Paint
350956 Whirlpool Spray Assembly
Leveler (Thinner)
WPL LIT1109076
WPL LIT945560
WPL LIT1109078
1Cord, Service
2549193 Whirlpool Refrigerator Power Clamp
3W11624204 Whirlpool Screw
5Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
6876811 Whirlpool Grommet
7Guard, Fan
8Baffle
9WP486692 Whirlpool Refrigerator Nut
10Fan, Blade
11Strap
12833697 Whirlpool Condenser Fan Motor
13Bracket, Motor
14681390 Whirlpool Refrigerator Screw
15Screw, 8 x 3/8
16303776 Whirlpool Dishwasher Screw
17Overload Spring
18Overload
19Relay
20Case, Relay
21Spring, Case
22Screw, 8-32 x 1/2
23Clip, Wire (2)
24Frame
25Screw, 8-32 x 3/8
26Wire Connector
27W11693756 Whirlpool Screw Assembly
28Clip (2)
29Rail, Front
30489340 Whirlpool Refrigerator Screw
31Clamp
32W10843121 Whirlpool Refrigerator Tube
33Condenser & Precooler
34Clamp (4)
35Grommet (4)
36Baffle, Air Evaporator
37WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38Clamp
40WPL 842041
41Evaporator
42Clip, Heater (2)
43Heater, Defrost
45Exchanger, Heat
46Dampener (2)
47WPW10141625 Whirlpool Refrigerator Screw Assembly
48Clamp Tube
49Pan, Drip
50Screw, 1/4-28 x 1/2 (2)
51WP2262181 Whirlpool Refrigerator Start Relay
52Overload
53Cover, Terminal
54Strap
55Capacitor
56Nut
57Washer
58978030 Whirlpool Refrigerator Valve
58TAPE, VINYL (3/4 X 108“)
58VALVE, ACCESS (5/8“)
58VALVE, ACCESS (1/2“)
58876764 Whirlpool Refrigerator Primary Valve
58Overload Spring
58Almond (Uncut)
5872017 Whirlpool Appliance Touch-Up Paint White
58WP542638 Whirlpool Refrigerator Grease
58CEMENT, ALUMILASTIC (1 1/4 OZ.)
58799344 Whirlpool Refrigerator Paint
58WP72107 Whirlpool Touchup
58978027 Whirlpool Refrigerator Primary Valve
58WP505587 Whirlpool Refrigerator Sealer
58Enamel, Black (1 Qt. Uncut)
5872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
58606755 Whirlpool Refrigerator Bag
58WP978025 Whirlpool Refrigerator Valve
58511873 Whirlpool Refrigerator Paint
58WPL 72112
58833938 Whirlpool Refrigerator Terminal
58876370 Whirlpool Refrigerator Insulation
58978026 Whirlpool Refrigerator Primary Valve
5872032 Whirlpool Touch Up Paint Black
58WP503695 Whirlpool Refrigerator Sealer
58WPL 876029
58Platinum (Uncut)
58WPL 799833
58WPL 799832
58Enamal, Toast (1 Qt. Uncut)
58Golden Harvest (Uncut)
5872113 Whirlpool Touch-Up Paint
58212643 Whirlpool Refrigerator Permagum Sealer
