EB19MKXRWR1 03 – FREEZER DOOR
Written by
in

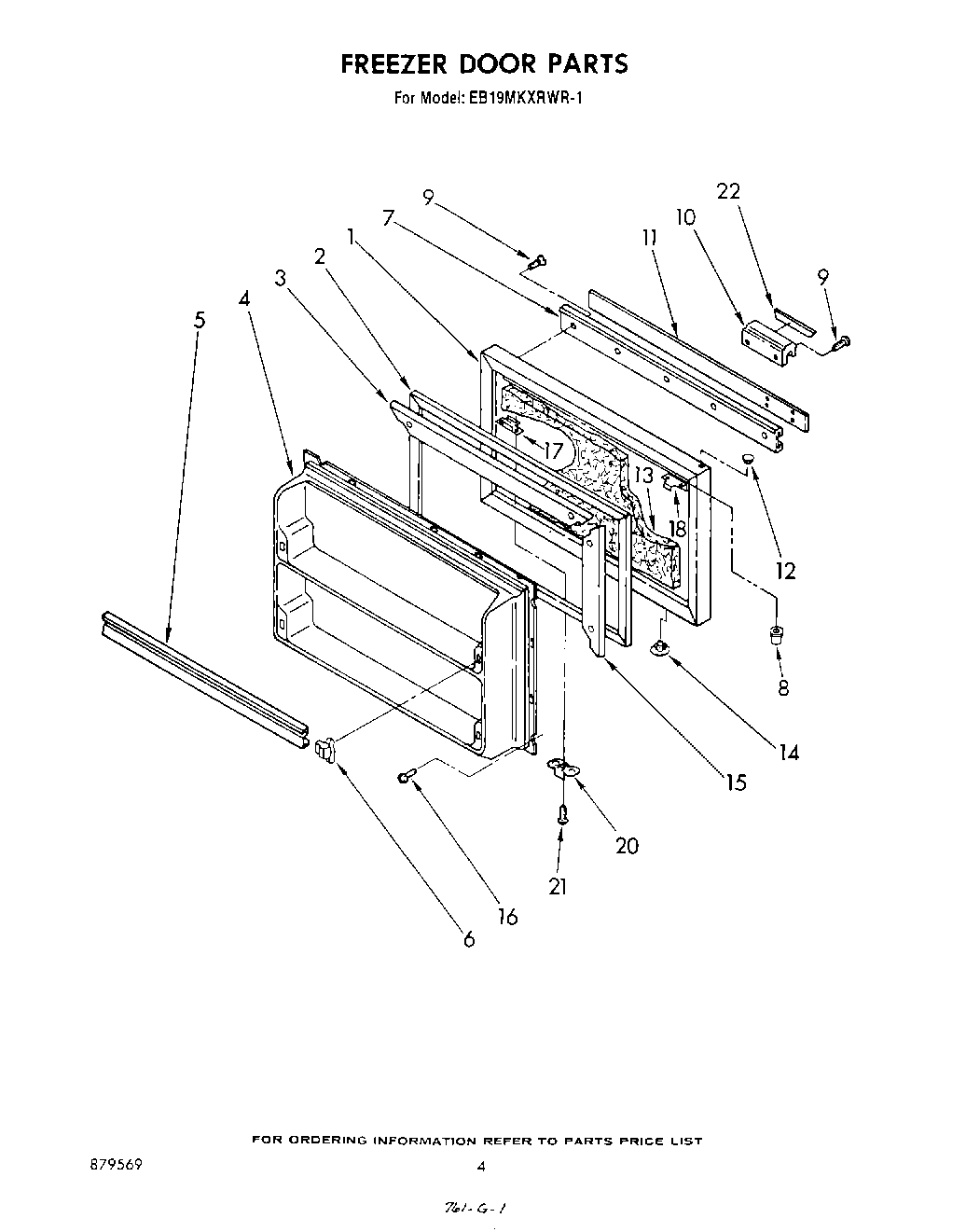

EB19MKXRWR1 03 – FREEZER DOOR
Products
Position
Product
1
Door, Freezer (Also Order Item 13) (White)
1
Door, Freezer (Also Order Item 13) (Platinum)
1
Door, Freezer (Also Order Item 13) (Toast)
1
Door, Freezer (Also Order Item 13) (Almond)
1
Door, Freezer (Also Order Item 13) (Golden Harvest)
2
Gasket, Freezer Door
3
Retainer, Gasket Top
4
Panel, Interior Door
5
Trim, Door Shelf (2)
6
WP839904 Whirlpool Refrigerator Endcap Trim
7
Trim, Handle Door
8
Cap, Hinge Sleeve (2)
9
Screw, 8.18 x 3/4
10
Handle, Door
11
Insert, Trim Handle (White)
11
Insert, Trim Handle (Platinum)
11
Insert, Trim Handle (Toast)
11
Insert, Trim Handle (Almond)
11
Insert, Trim Handle (Golden Harvest)
12
WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
12
Hole Plug (Almond)
12
Hole Plug (Platinum)
12
Hole Plug (Toast)
13
WPL 876029
14
Hole Plug (2)
15
WPL 986015
16
WP489069 Whirlpool Compactor Screw
16
SCREW
17
W10833053 Whirlpool Refrigerator Plate
18
WP939101 Whirlpool Refrigerator Plate
20
Bracket, Door Stop
21
WP488921 Whirlpool Refrigerator Screw
21
Screw (Repair)
22
WPL 1109068
22
WPL 1109067
22
Insert, Trim H
22
Insert, Trim Handle (White)
22
WPL 1109069
←
