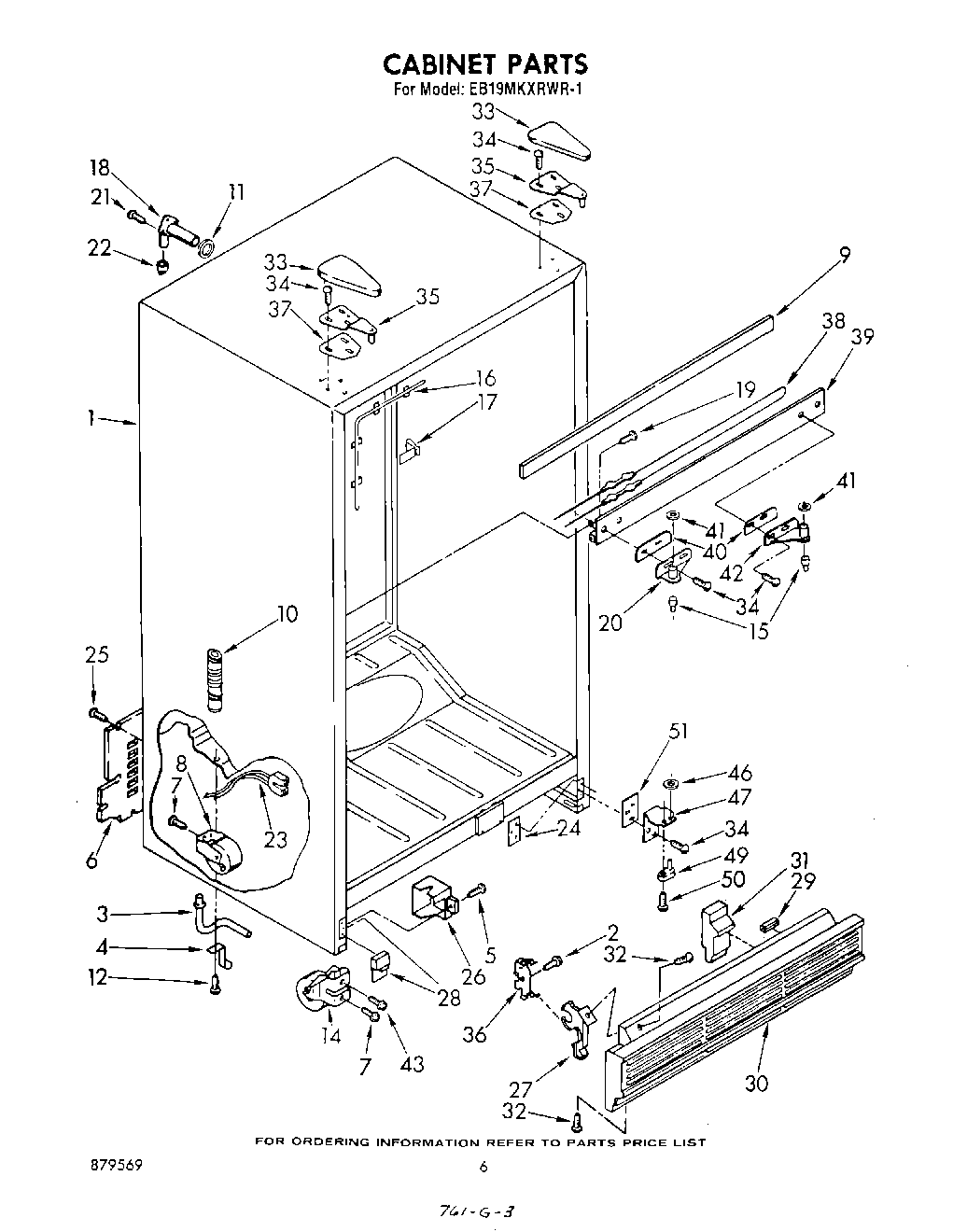

EB19MKXRWR1 04 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	Extension, Drain Fitting
4	Cup, Drain Extension
5	WP488729 Whirlpool Refrigerator Door Screw
6	WPL 850459
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	Seal Strip
10	Drain Fitting
11	WP1106508 Whirlpool Refrigerator Gasket
12	Screw, 8-32 x 1/2
14	Roller, Front
15	Pin, Hinge
16	Heater, Stile
17	WPL 935663
18	WP2196157 Whirlpool Fill Tube
19	Screw (Repair)
19	Screw, 8 x 3/8
20	Hinge, Center (L.H.)
21	WP98165 Whirlpool Screw
22	WP487996 Whirlpool Refrigerator Cap Tube
23	WPL 548734
24	Tap Plate
26	WPL 549947
27	WP944224 Whirlpool Refrigerator Support
28	WPL 989931
28	WPL 989929
28	Corner, Filler (
28	Filler, Grille (Platinum)
28	Filler, Grille (Toast)
29	Bumper, Grille
30	Exterior, Grille (Toast)
30	Exterior, Grille (Platinum)
30	Exterior, Grille (Almond)
30	Exterior, Grille (White)
30	Exterior, Grille (Golden Harvest)
31	WPL 836372
32	WPL 489085
33	Hinge Cover (Toast)
33	1119787 Whirlpool Refrigerator Hinge Cover
33	Hinge Cover (Golden Harvest)
34	Screw (Repair)
34	WP999367 Whirlpool Refrigerator Screw
35	Hinge, Top (2)
36	WPL 989068
37	WPL 836151
38	Heater, Mullion
39	WPL 1100304
39	WPL 1100303
39	Center Rail (White)
39	Center Rail (Almond)
39	Center Rail (Golden Harvest)
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	WPL 992544
43	Screw, 5/16-24 x 1
46	WP487802 Whirlpool Refrigerator Washer
47	Hinge, Bottom
49	Hinge Pin, Bottom
50	Screw 10-32 x 5/16
51	Shim, Bottom Hinge
