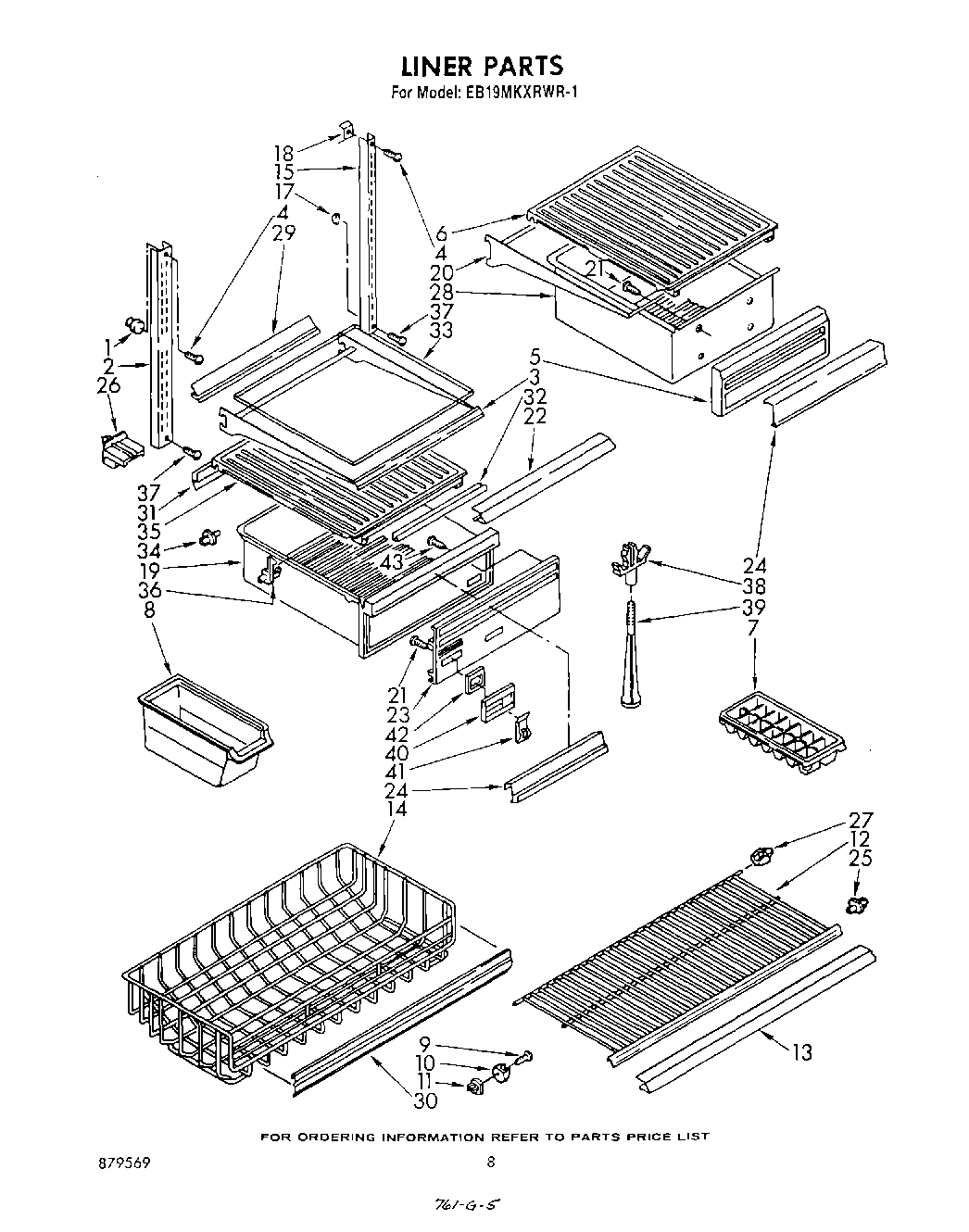

EB19MKXRWR1 05 – LINER

Products

Position	Product
1	Screw Support, Center Ladder (2)
2	Shelf, Ladder Center
3	Shelf, Cantilever (3)
4	Screw, 8 x 1-1/4 (3)
5	Front Cover, Meat Pan
6	Cover, Meat Pan
7	WP841180A Whirlpool Microwave Glass Turntable Tray
8	WP982704 Whirlpool Refrigerator Container
9	WP488729 Whirlpool Refrigerator Door Screw
10	Stud, Saddle (L.S.)
11	Screw Grommet
12	Shelf, Freezer
13	Trim, Shelf
14	Basket, Freezer
15	Shelf, Ladder (2)
17	520965 Whirlpool Refrigerator Support
18	Screw, Anchor (3)
19	Pan Crisper (2)
20	Shelf, Cantilever (Meat Pan)
21	Screw (Repair)
22	Trim, Shelf
23	Front Cover, Crisper
24	Overlay, Pan
25	Shelf, Stud (2)
26	Stud, Support Rear
27	Stud, Saddle (R.S.)
28	Pan, Meat
29	Reflector, Shelf
30	Trim, Freezer Basket
31	Crisper Gasket, Rear
32	Crisper Gasket, Front
33	Glass Shelf
34	Shelf, Stud
35	Cover, Crisper Pan (2)
36	Shelf, Stud
37	Screw, 8-32 x 1-1/4
37	Screw (Repair)
38	Support, Cover
39	Post, Cover
40	Housing, Humidity Control
41	Slide, Humidity Control
42	Seal, Humidity Control
43	Screw, 6-19 x 7/16
