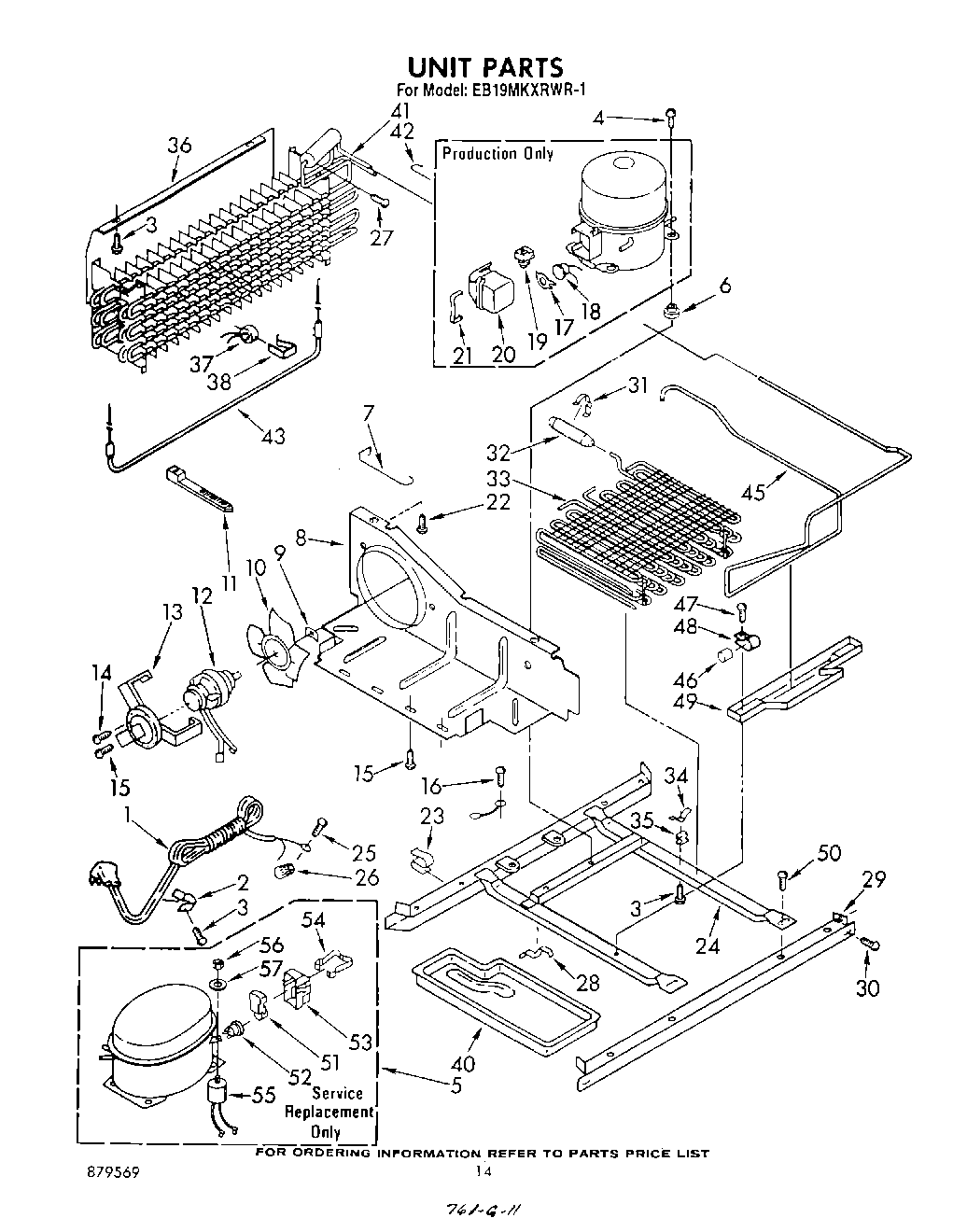

EB19MKXRWR1 08 – UNIT , LITERATURE AND OPTIONAL

EB19MKXRWR1 08 – UNIT , LITERATURE AND OPTIONAL

Written by

in

EB19MKXRWR1 08 – UNIT , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	WPL LIT879569
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest
	350942 Whirlpool Spray Paint
	WPL LIT945560
	350956 Whirlpool Spray Assembly
	WPL LIT1109078
	WPL LIT1109076
	Leveler (Thinner)
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
5	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
6	876811 Whirlpool Grommet
7	Guard, Fan
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	Strap
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	681390 Whirlpool Refrigerator Screw
15	Screw, 8 x 3/8
16	303776 Whirlpool Dishwasher Screw
17	Overload Spring
18	Overload
19	Relay
20	Case, Relay
21	Spring, Case
22	Screw, 8-32 x 1/2
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	W11693756 Whirlpool Screw Assembly
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler
34	Clamp (4)
35	Grommet (4)
36	Baffle, Air Evaporator
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
40	WPL 842041
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
51	Relay
52	Overload
53	Cover, Terminal
54	Strap
55	Capacitor
56	Nut
57	WPL 799833
57	72032 Whirlpool Touch Up Paint Black
57	VALVE, ACCESS (5/8“)
57	212643 Whirlpool Refrigerator Permagum Sealer
57	511873 Whirlpool Refrigerator Paint
57	Almond (Uncut)
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (1/2“)
57	978030 Whirlpool Refrigerator Valve
57	606755 Whirlpool Refrigerator Bag
57	WP503695 Whirlpool Refrigerator Sealer
57	WP72107 Whirlpool Touchup
57	799344 Whirlpool Refrigerator Paint
57	72017 Whirlpool Appliance Touch-Up Paint White
57	WP505587 Whirlpool Refrigerator Sealer
57	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57	72113 Whirlpool Touch-Up Paint
57	WPL 799832
57	WPL 72112
57	Enamel, Black (1 Qt. Uncut)
57	WPL 876029
57	CEMENT, ALUMILASTIC (1 1/4 OZ.)
57	TAPE, VINYL (3/4 X 108“)
57	WP978025 Whirlpool Refrigerator Valve
57	876370 Whirlpool Refrigerator Insulation
57	Washer
57	Platinum (Uncut)
57	833938 Whirlpool Refrigerator Terminal
57	WP542638 Whirlpool Refrigerator Grease
57	978027 Whirlpool Refrigerator Primary Valve
57	Enamal, Toast (1 Qt. Uncut)
57	Golden Harvest (Uncut)
57	978026 Whirlpool Refrigerator Primary Valve
