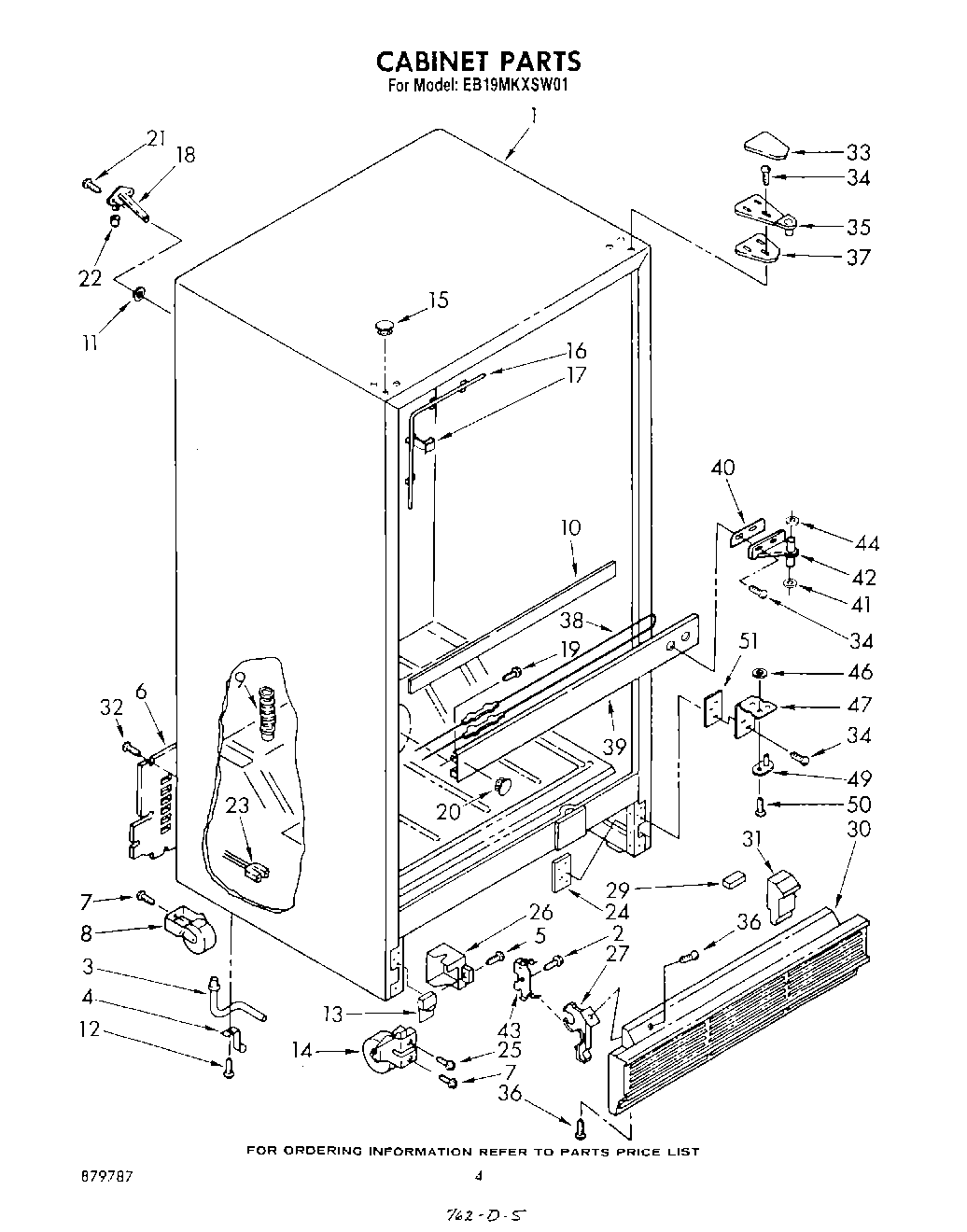

EB19MKXSG01 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	Extension, Drain Fitting
4	Cup, Drain Extension
5	WP488729 Whirlpool Refrigerator Door Screw
6	WPL 850459
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	Drain Fitting
10	Seal Strip
11	WP1106508 Whirlpool Refrigerator Gasket
12	Screw, 8-32 x 1/2
13	Filler, Corner
14	Roller, Front
15	Hole Plug (3) (Platinum)
15	Hole Plug (2) (White)
15	Hole Plug (3) (Toast)
15	Hole Plug (2) (Almond)
15	Hole Plug (2) (Golden Harvest)
16	Heater, Stile
17	WPL 935663
18	WP2196157 Whirlpool Fill Tube
19	Screw, 8 x 3/8
19	Screw (Repair)
20	Hole Plug (Golden Harvest)
20	Hole, Plug (Almond)
20	Hole, Plug (White)
20	Hole Plug (2) (Platinum)
20	Plug, Hole (2) (Toast)
21	WP98165 Whirlpool Screw
22	WP487996 Whirlpool Refrigerator Cap Tube
23	WPL 548734
24	Tap Plate
25	Screw, 5/16-24 x 1
26	WPL 549947
27	WP944224 Whirlpool Refrigerator Support
29	Bumper, Grille
30	Grille
31	WPL 836372
33	1119787 Whirlpool Refrigerator Hinge Cover
33	Hinge Cover (Golden Harvest)
33	Hinge Cover (Toast)
34	Screw (Repair)
34	WP999367 Whirlpool Refrigerator Screw
35	Hinge, Top
36	Screw, 8-22 x 5/16 (4)
37	Shim, Hinge
38	Heater, Mullion
39	WPL 1100304
39	Center Rail (Almond)
39	Center Rail (Golden Harvest)
39	Center Rail (White)
39	WPL 1100303
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	Hinge, Center
43	WPL 989068
44	WP487802 Whirlpool Refrigerator Washer
47	Hinge, Bottom
49	Hinge Pin, Bottom
50	Screw 10-32 x 5/16
51	Shim, Bottom Hinge
