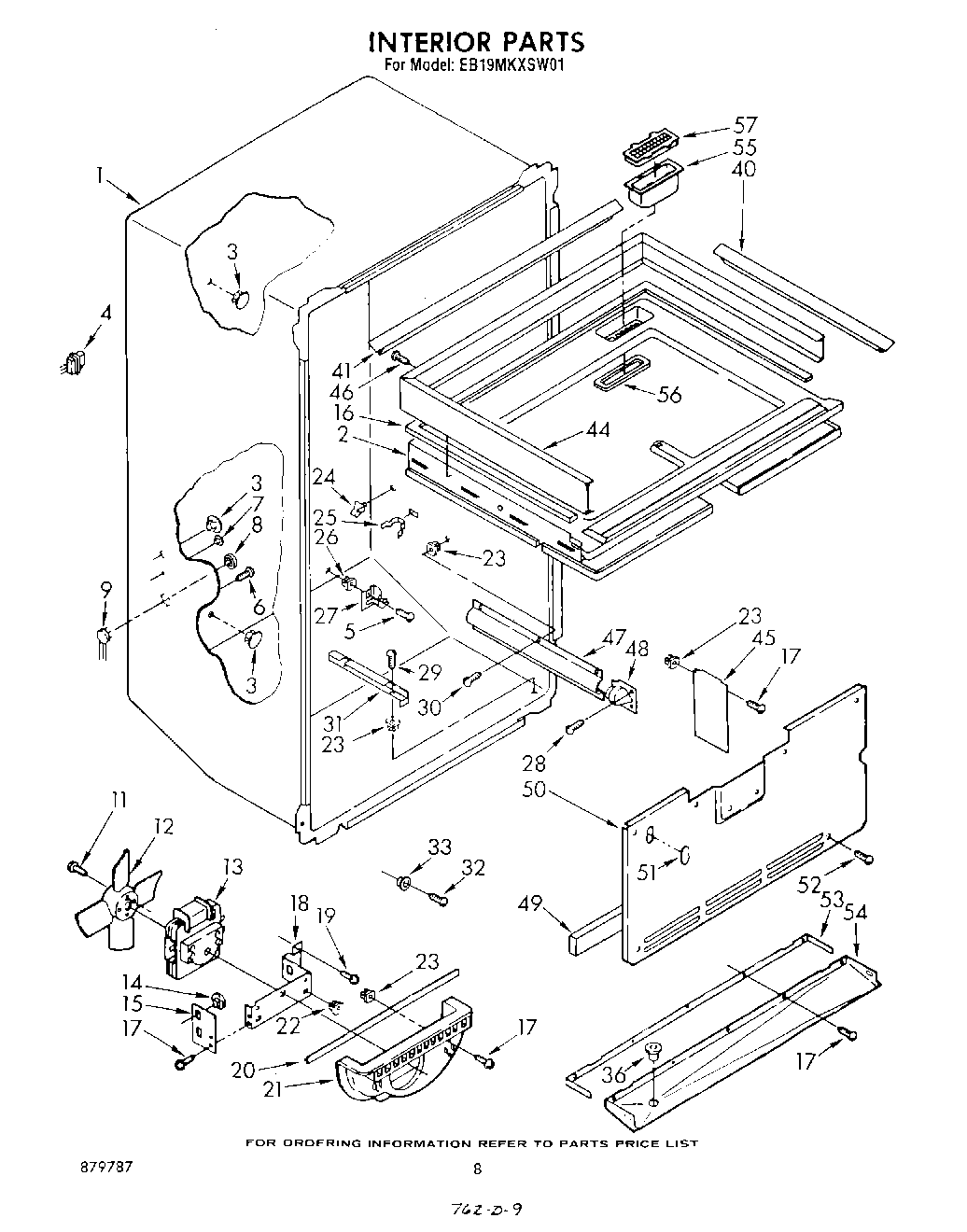

EB19MKXSG01 05 – INTERIORadmin2025-04-26T12:41:11+00:00EB19MKXSG01 05 – INTERIOR
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Separator, Compartment |
| 3 | Hole, Plug |
| 4 | Liner Wiring (Defrost Timer) |
| 5 | SCREW |
| 6 | WP489069 Whirlpool Compactor Screw |
| 7 | Hole, Plug |
| 8 | Receptacle Cap |
| 9 | Wiring, Ice Maker |
| 11 | WP487887 Whirlpool Refrigerator Screw |
| 12 | Blade, Fan |
| 13 | 482469 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 14 | Grommet (3) |
| 15 | Fan, Bracket Double |
| 16 | Gasket, Sealing |
| 18 | Bracket, Fan Mounting (Single) |
| 20 | Gasket, Sealing |
| 21 | Scroll, Fan |
| 22 | Screw Grommet |
| 23 | Grommet |
| 24 | Stud, Support (2) |
| 25 | Speed Clip, Light Lens (3) |
| 26 | Grommet, Screw |
| 27 | Support, Evaporator |
| 29 | W11693756 Whirlpool Screw Assembly |
| 30 | WP488729 Whirlpool Refrigerator Door Screw |
| 31 | Slide, Basket (R.S) |
| 31 | Slide, Basket (Left Side) |
| 32 | WP488163 Whirlpool Refrigerator Screw |
| 33 | Cap Nut |
| 36 | Fitting, Drain Pan |
| 40 | Gasket, Side (2) |
| 41 | Gasket, Rear |
| 44 | Track, Compartment |
| 45 | Baffle, Air Evaporator |
| 46 | W11624204 Whirlpool Screw |
| 47 | Cover, Tube |
| 48 | Cover, Tub Entry |
| 49 | Air Baffle |
| 50 | Cover, Evaporator |
| 51 | Hole Plug, Evaporator |
| 53 | Gasket, Drain Pan |
| 54 | Pan, Drain (Also Includes Illus. 36) |
| 55 | Insert, Air Return |
| 56 | Gasket |
| 57 | Grid, Insert |
