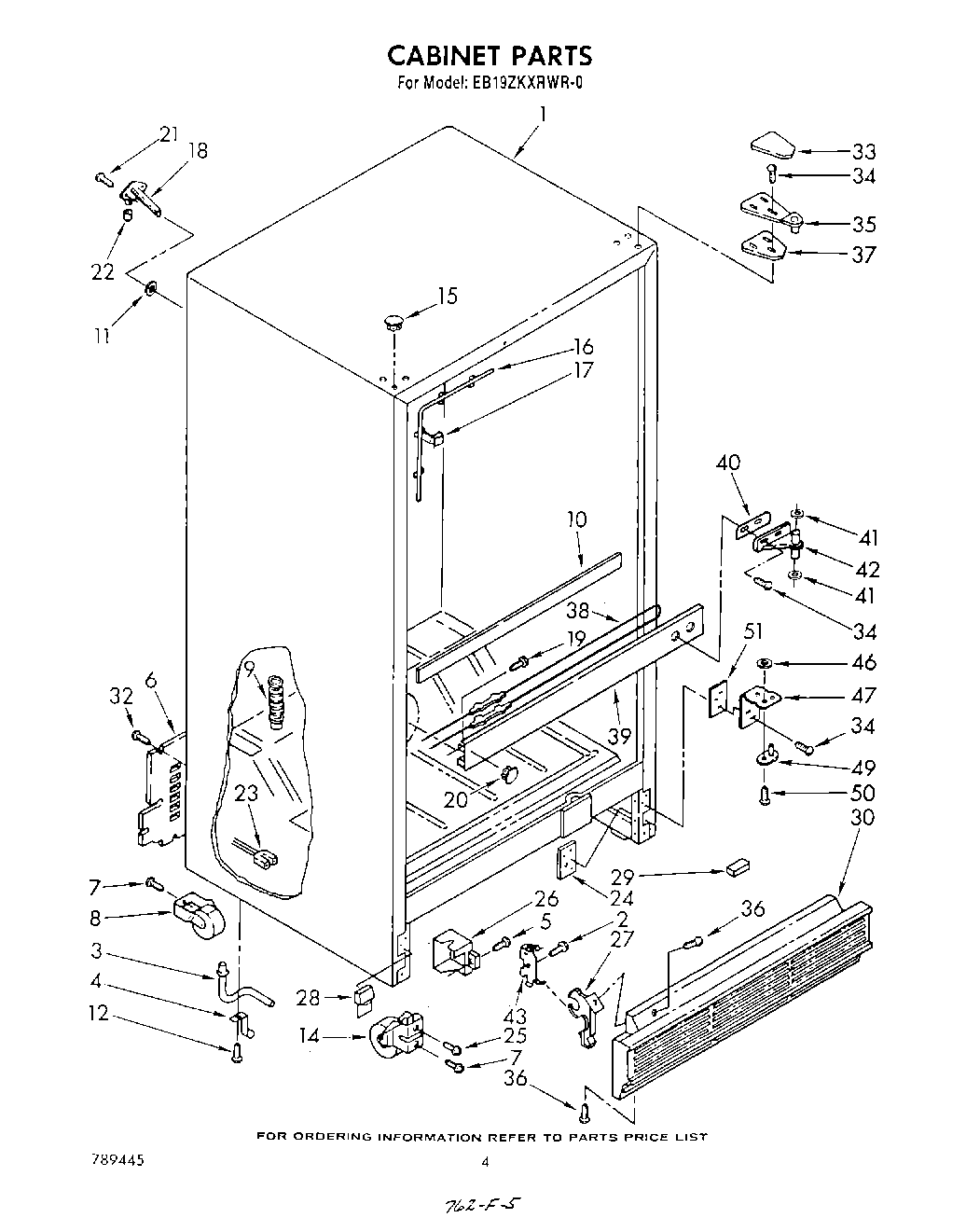

EB19ZKXRWR0 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	Extension, Drain Fitting
4	Cup, Drain Extension
5	WP488729 Whirlpool Refrigerator Door Screw
6	WPL 850459
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	Drain Fitting
10	Seal Strip
11	WP1106508 Whirlpool Refrigerator Gasket
12	Screw, 8-32 x 1/2
14	Roller, Front
15	Hole Plug (3) (Toast)
15	Hole Plug (2) (Golden Harvest)
15	Hole Plug (2) (Almond)
15	Hole Plug (3) (Platinum)
15	Hole Plug (2) (White)
16	WPL 936075
17	WPL 935663
18	WP2196157 Whirlpool Fill Tube
19	Screw (Repair)
19	WP965173 Whirlpool Dishwasher Screw
20	Hole Plug (Golden Harvest)
20	Hole, Plug (Almond)
20	Hole, Plug (White)
20	Plug, Hole (2) (Toast)
20	Hole Plug (2) (Platinum)
21	WP98165 Whirlpool Screw
22	WP487996 Whirlpool Refrigerator Cap Tube
23	WPL 548734
24	Tap Plate
25	Screw, 5/16-24 x 1
26	WPL 549947
27	WP944224 Whirlpool Refrigerator Support
28	Corner, Filler (
28	WPL 989931
28	WPL 989929
28	Filler, Grille (Toast)
28	Filler, Grille (Platinum)
29	Bumper, Grille
30	Exterior, Grille (Almond)
30	Exterior, Grille (Platinum)
30	Exterior, Grille (Toast)
30	Exterior, Grille (White)
30	Exterior, Grille (Golden Harvest)
33	Hinge Cover (Toast)
33	Hinge Cover (Golden Harvest)
33	1119787 Whirlpool Refrigerator Hinge Cover
34	Screw (Repair)
34	WP999367 Whirlpool Refrigerator Screw
35	Hinge, Top
36	WPL 489085
37	Shim, Hinge
38	Heater, Mullion
39	WPL 1100303
39	Center Rail (Almond)
39	Center Rail (White)
39	WPL 1100304
39	Center Rail (Golden Harvest)
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	Hinge, Center
43	WPL 989068
46	WP487802 Whirlpool Refrigerator Washer
47	Hinge, Bottom
49	Hinge Pin, Bottom
50	Screw 10-32 x 5/16
51	Shim, Bottom Hinge
