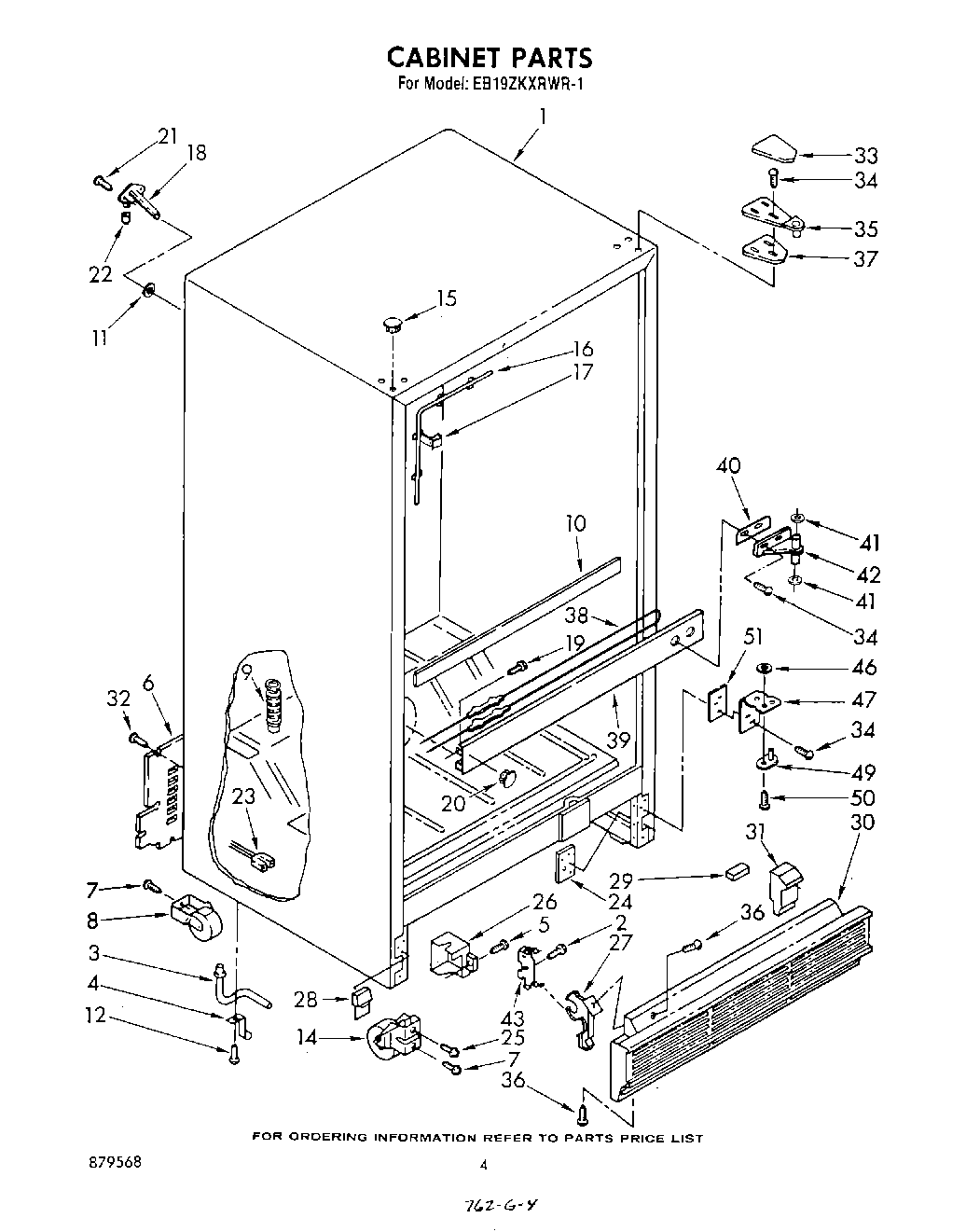

EB19ZKXRWR1 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11624204 Whirlpool Screw
3Extension, Drain Fitting
4Cup, Drain Extension
5WP488729 Whirlpool Refrigerator Door Screw
6WPL 850459
7Screw, 1/4-28 x 1/2 (2)
8WPW10250570 Whirlpool Refrigerator Cabinet Roller
9Drain Fitting
10Seal Strip
11WP1106508 Whirlpool Refrigerator Gasket
12Screw, 8-32 x 1/2
14Roller, Front
15Hole Plug (2) (Almond)
15Hole Plug (3) (Toast)
15Hole Plug (3) (Platinum)
15Hole Plug (2) (Golden Harvest)
15Hole Plug (2) (White)
16Heater, Stile
17WPL 935663
18WP2196157 Whirlpool Fill Tube
19Screw, 8 x 3/8
19Screw (Repair)
20Hole, Plug (Almond)
20Hole Plug (Golden Harvest)
20Hole, Plug (White)
20Plug, Hole (2) (Toast)
20Hole Plug (2) (Platinum)
21WP98165 Whirlpool Screw
22WP487996 Whirlpool Refrigerator Cap Tube
23WPL 548734
24Tap Plate
25Screw, 5/16-24 x 1
26WPL 549947
27WP944224 Whirlpool Refrigerator Support
28Filler, Grille (Toast)
28WPL 989931
28Filler, Grille (Platinum)
28Corner, Filler (
28WPL 989929
29Bumper, Grille
30Exterior, Grille (Toast)
30Exterior, Grille (Platinum)
30Exterior, Grille (Almond)
30Exterior, Grille (White)
30Exterior, Grille (Golden Harvest)
31WPL 836372
33Hinge Cover (Toast)
33Hinge Cover (Golden Harvest)
331119787 Whirlpool Refrigerator Hinge Cover
34WP999367 Whirlpool Refrigerator Screw
34Screw (Repair)
35Hinge, Top
36WPL 489085
37Shim, Hinge
38Heater, Mullion
39WPL 1100303
39Center Rail (White)
39WPL 1100304
39Center Rail (Almond)
39Center Rail (Golden Harvest)
40Shim, Hinge Center
41WP488296 Whirlpool Washer Refrigerator
42Hinge, Center
43WPL 989068
46WP487802 Whirlpool Refrigerator Washer
47Hinge, Bottom
49Hinge Pin, Bottom
50Screw 10-32 x 5/16
51Shim, Bottom Hinge
