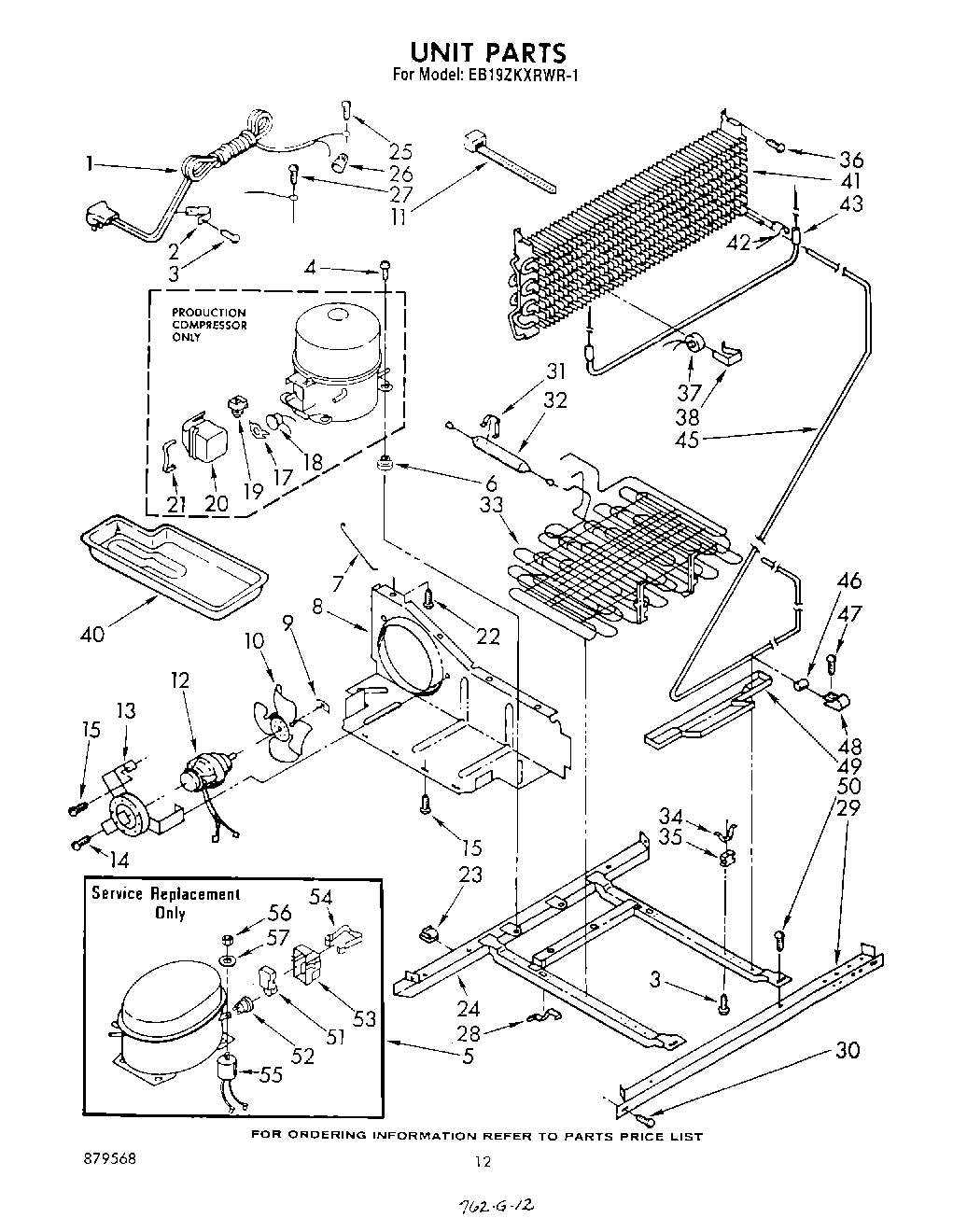

EB19ZKXRWR1 07 – UNIT

EB19ZKXRWR1 07 – UNIT

Written by

in

EB19ZKXRWR1 07 – UNIT

Products

PositionProduct
1Cord, Service
2549193 Whirlpool Refrigerator Power Clamp
3W11624204 Whirlpool Screw
5Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
6876811 Whirlpool Grommet
7Guard, Fan
8Baffle
9WP486692 Whirlpool Refrigerator Nut
10Fan, Blade
11Strap
12833697 Whirlpool Condenser Fan Motor
13Bracket, Motor
14681390 Whirlpool Refrigerator Screw
15Screw, 8 x 3/8
17Overload Spring
18Overload
19Relay
20Case, Relay
21Spring, Case
22Screw, 8-32 x 1/2
23Clip, Wire (2)
24Frame
25Screw, 8-32 x 3/8
26Wire Connector
27303776 Whirlpool Dishwasher Screw
28Clip (2)
29Rail, Front
30489340 Whirlpool Refrigerator Screw
31Clamp
32W10843121 Whirlpool Refrigerator Tube
33Condenser & Precooler
34Clamp (4)
35Grommet (4)
36W11693756 Whirlpool Screw Assembly
37WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38Clamp
40WPL 842041
41Evaporator
42Clip, Heater (2)
43Heater, Defrost
45Exchanger, Heat
46Dampener (2)
47WPW10141625 Whirlpool Refrigerator Screw Assembly
48Clamp Tube
49Pan, Drip
50Screw, 1/4-28 x 1/2 (2)
51Relay
52Overload
53Cover, Terminal
54Strap
55Capacitor
56Nut
57876764 Whirlpool Refrigerator Primary Valve
57978026 Whirlpool Refrigerator Primary Valve
57978027 Whirlpool Refrigerator Primary Valve
57VALVE, ACCESS (5/8“)
57WP978025 Whirlpool Refrigerator Valve
57VALVE, ACCESS (1/2“)
57Washer
57978030 Whirlpool Refrigerator Valve
