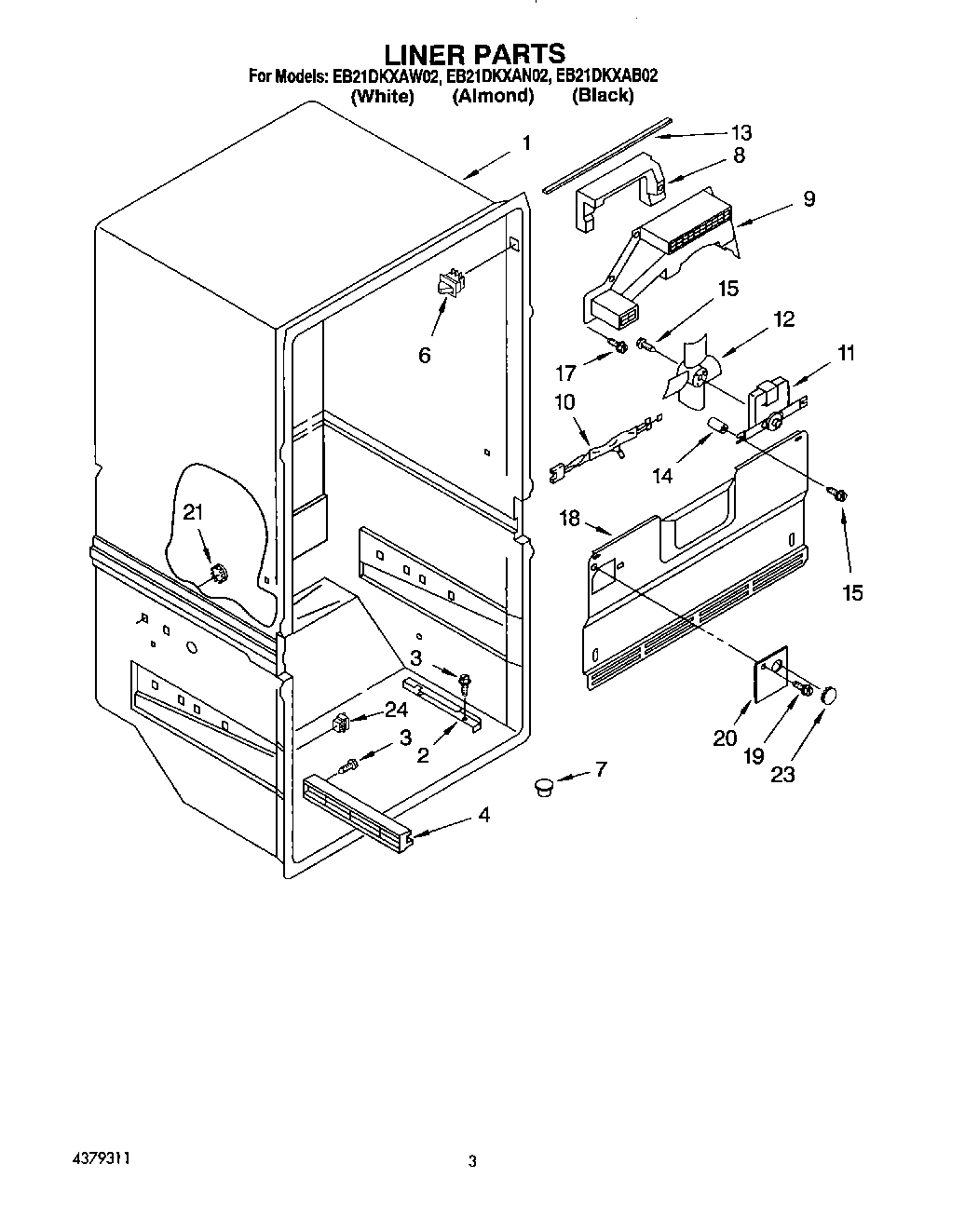

EB21DKXAB02 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Basket (Left Side)
2	Slide, Basket (R.S)
3	W11693756 Whirlpool Screw Assembly
4	Shelf Track, (Left Side)
4	Shelf Track, (Right Side)
6	W11384469 Whirlpool Door Switch
7	Drain Ferrule
8	Insert, Scroll
9	Scroll, Fan
10	Wiring Assembly, Fan Motor
11	Fan Motor
12	Fan Blade
13	Gasket, Fan Scroll
14	Grommet
15	Screw (2)
17	WP489478 Whirlpool Refrigerator Screw
18	Cover, Evaporator
19	WP488729 Whirlpool Refrigerator Door Screw
20	Hole Cover, Evaporator
21	WP941839 Whirlpool Refrigerator Button Plug
23	Hole Plug
24	W11457217 Whirlpool Refrigerator Rocker Switch Combination
